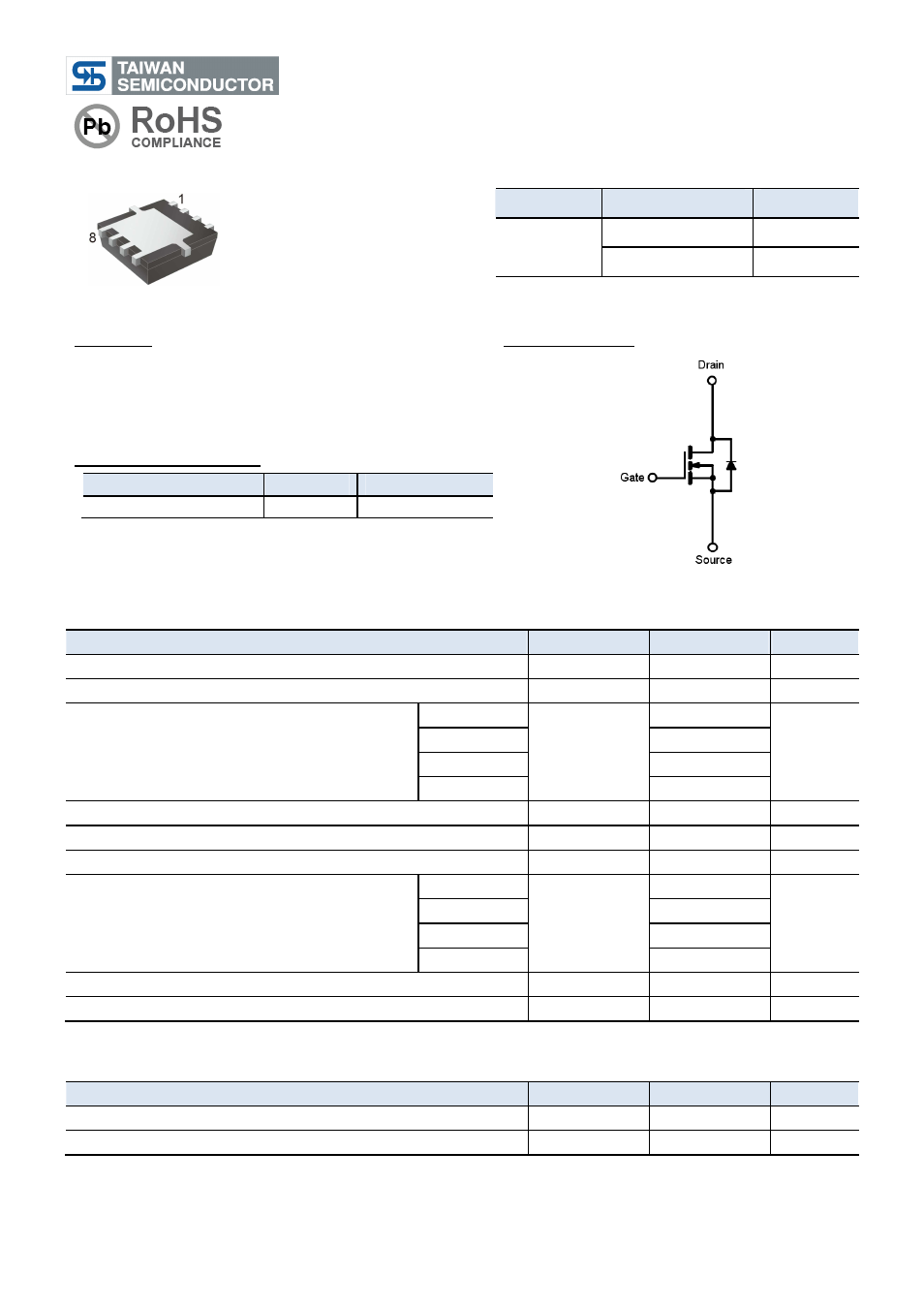

TSM15N03PQ33
30V N-Channel Power MOSFET
1/4
Version: A12
PDFN33
PRODUCT SUMMARY
V
DS
(V)
R
DS(on)
(m
Ω
)
I
D
(A)
30
12 @ V
GS
=10V
7.8
17 @ V
GS
=4.5V
7
Features
●
Advanced Trench Technology
●
Low On-Resistance
●
Low gate charge typical @ 3.6nC (Typ.)
●
Low Crss typical @ 38pF (Typ.)
Block Diagram
N-Channel MOSFET
Ordering Information
Part No.
Package
Packing
TSM15N03PQ33 RGG
PDFN33
5Kpcs / 13” Reel
Note: “G” denote for Halogen Free Product
Absolute Maximum Rating
(Ta = 25
o
C unless otherwise noted)
Parameter
Symbol
Limit
Unit
Drain-Source Voltage
V
DS
30
V
Gate-Source Voltage
V
GS
±20
V
Continuous Drain Current
T
C
=25°C
I
D
14
A
T
C
=70°C
14
T
A
=25°C
9.7
T
A
=70°C
7.8
Drain Current-Pulsed Note 1
I
DM
35
A
Avalanche Current, L=0.1mH
I
AS
, I
AR
9
A
Avalanche Energy, L=0.1mH
E
AS
, E
AR
4
mJ
Maximum Power Dissipation
T
C
=25°C
P
D
15.6
W
T
C
=70°C
10
T
A
=25°C
3.2
T
A
=70°C
2.1
Storage Temperature Range
T
STG
-55 to +150
°C
Operating Junction Temperature Range
T
J
-55 to +150
°C
* Limited by maximum junction temperature
Thermal Performance
Parameter
Symbol
Limit
Unit
Thermal Resistance - Junction to Case
R
Ө
JC
8
o
C/W
Thermal Resistance - Junction to Ambient
R
Ө
JA
40
o
C/W
Notes: Surface mounted on FR4 board t
≤
10sec
Pin Definition:
1. Source
8. Drain
2. Source
7. Drain
3. Source
6. Drain
4. Gate
5. Drain
