RF-TVMP40 TV Wall Mount

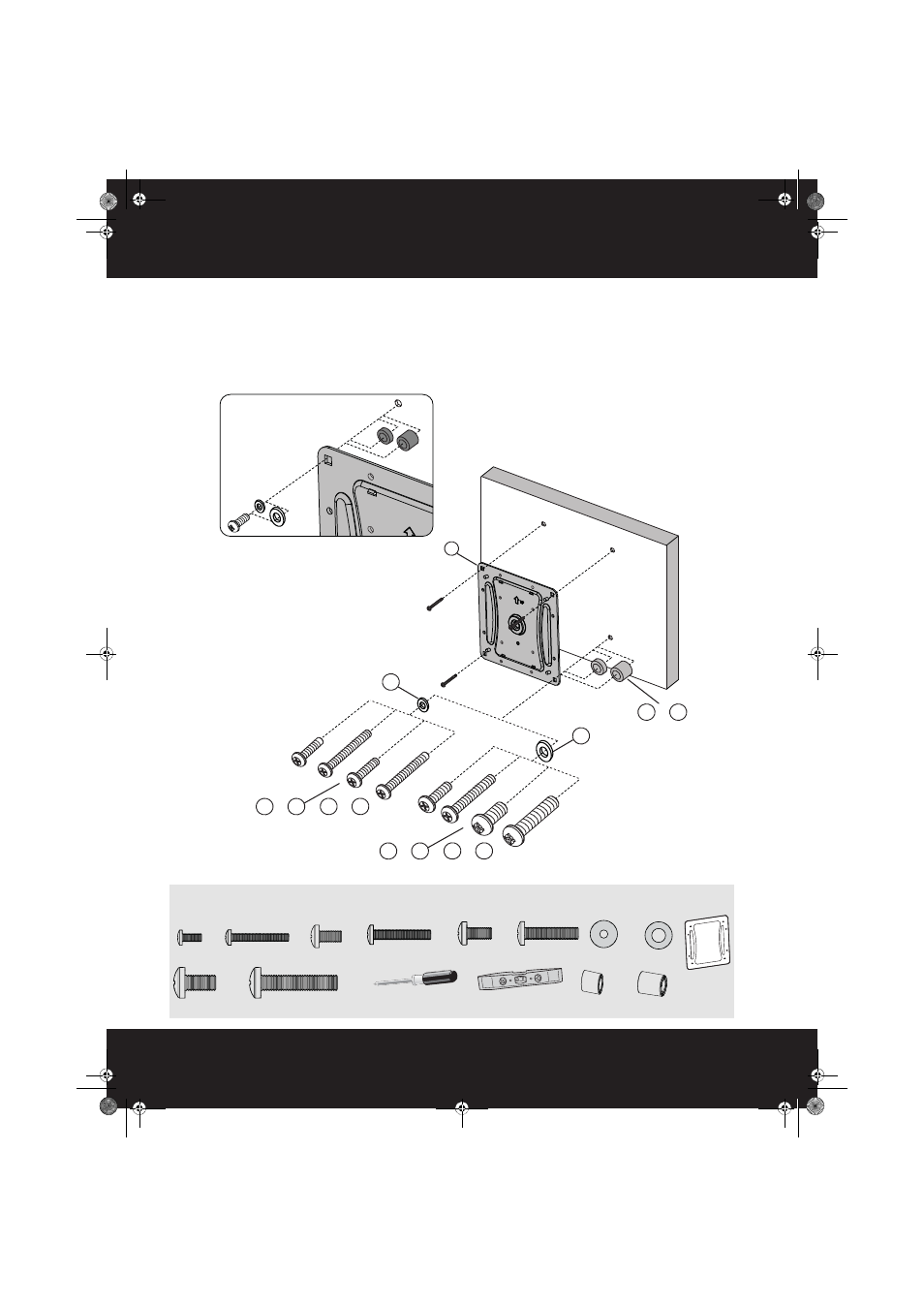

STEP 4: Option 1 - Attaching the monitor plate to the TV
1 Align the monitor plate (C) with the screw holes on the back of the TV.
2 Install screws (M-A, M-B, M-C, M-D, M-E, M-F, M-G, or M-H) securely into the four holes in the back of the
TV, using washers (M-K or M-L) and spacers (M-I or M-J) as necessary. Do not over-tighten.
3 Continue to “STEP 5 - Determine wall-mount location” on page 11.
Note: The monitor plate (C) should be level on the back of the TV.
