4 Need help? Call 800-620-2790
RF-TVMP40 TV Wall Mount

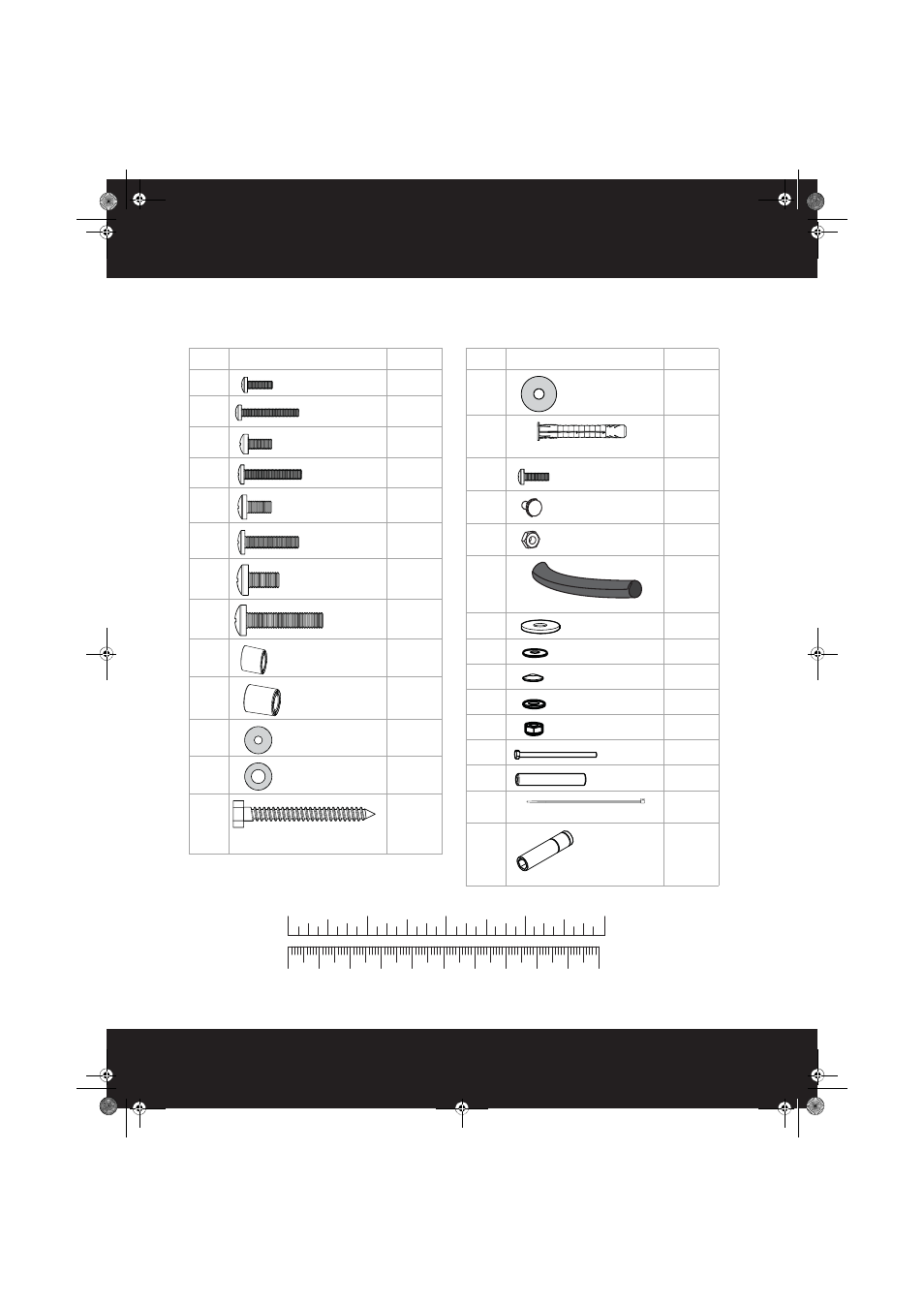

Package contents: hardware
Make sure that you have all the hardware necessary to assemble your new TV wall mount: TV Hardware Bag
Label Hardware Qty.
M-A 4
M-B 4
M-C 4
M-D 4
M-E 4
M-F 4
M-G 4
M-H 4
M-I 4
M-J 4
M-K 4
M-L 4
W-A 2
M4 × 15 mm screw
M4 × 30 mm
screw
M5 × 15 mm screw
M5 × 30 mm
screw
M6 × 15 mm screw
M6 × 30 mm
screw
M8 × 15 mm
screw
M8 × 30 mm
screw
M6/M8 5 mm spacer
M6/M8 10 mm
spacer
M4/M5 Washer
M6/M8 Washer
5/16" × 2 3/4" (8 mm x 80 mm)
lag bolt
Label Hardware Qty.
W-B 2
W-C 2
P-A 1
P-B 4
P-C 8
P-D 1
P-F 1
P-G 1
P-H 1
P-I 1
P-J 1
P-K 1
P-M 1
P-L 2
P-Q 1
Steel washer
Wall anchor
Phillips screw
Round head screw
Nuts
Cable wrap
65 mm washer
25 mm washer
Spring disc
16 mm bearing
M8 Hex nut
M8 Screw
Tubing
Cable tie
8 mm socket
(requires 1/4” drive)
10 20 30 40 50 60 70 80 90 100mm
1 2 3 4in
