RF-TVMP40 TV Wall Mount

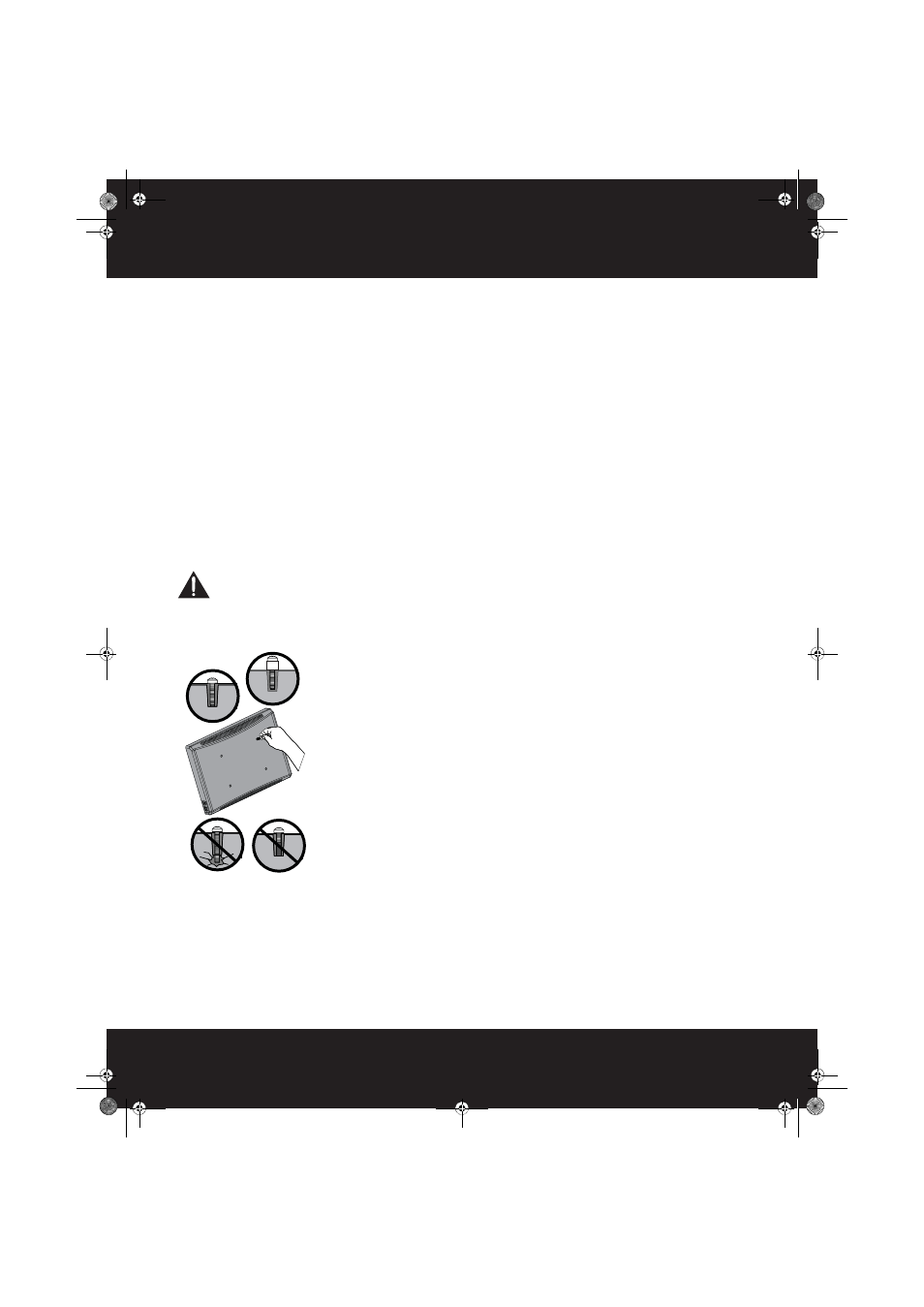

STEP 3 - Select screws, washers, and spacers

Select the screws for your TV. A limited number of TVs come with mounting hardware included. (If there are

screws that came with the TV, they are usually in the holes on the back of the TV.) If you don't know the

correct length and diameter of the mounting screws your TV requires, test various sizes by hand threading

the screws.
Select one of the following types of screws:

Select one of the following types of washers:

For an irregular or obstructed TV back, use one of the following spacers:

CAUTION:

To avoid potential personal injuries and property damage, make sure that there are adequate

threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact
customer service. Use the shortest screw available to accommodate your TV. Using hardware that is too
long may damage your TV. However, using a screw that is too short may cause your TV to fall from the
mount.

Remove the screws.

For 100 x 200 and 200 x 200 mounting configurations, go to "STEP 4: Option 1 - Attaching the monitor plate to
the TV" on page 8.
-OR-
For all other configurations, go to "STEP 4: Option 2 - Attaching the monitor plate with adapters to the TV" on
page 9.

M4 × 15 mm screws (M-A)

M6 × 15 mm screws (M-E)

M4 × 30 mm screws (M-B)

M6 × 30 mm screws (M-F)

M5 × 15 mm screws (M-C)

M8 × 15 mm screws (M-G)

M5 × 30 mm screws (M-D)

M8 × 30 mm screws (M-H)

M4/M5 washers (M-K)

M6/M8 washers (M-L)

M6/M8 5 mm spacers (M-I)

M6/M8 10 mm spacers (M-J)

Screw is
too long

Screw fits
correctly

Screw is
too short
