RF-TVMP40 TV Wall Mount

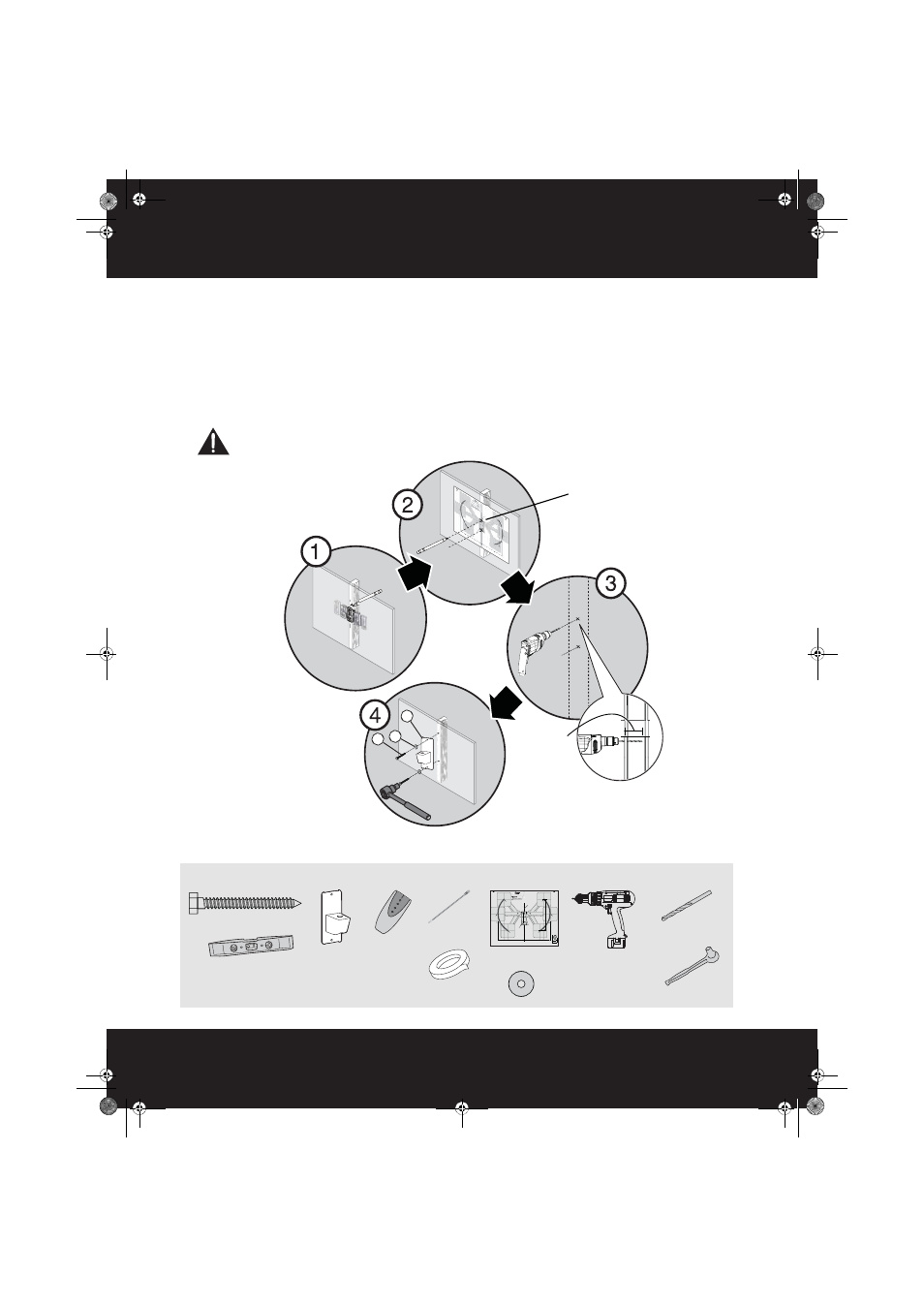

STEP 6 - Option 1: Installing on a wood stud wall
Note: Any wallboard or material covering the wall must not exceed 5/8" (16 mm).
1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
2 Align the wall plate template (G) at the height you determined in the previous step and make sure that it is
level, then tape it to the wall. Use a pencil to mark the lag bolt hole locations (2) on the stud centers. Remove
the wall plate template.
3 Drill pilot holes to a depth of 2-3/4 in. (70 mm) using a 7/32 in. (5.5 mm) diameter drill bit.
4 Align the wall plate (D) with the pilot holes, insert the lag bolts (W-A) through the washers (W-B), then
through the holes in the wall plate, then tighten the lag bolts only until they are firm against the wall plate.
CAUTION: : Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (W-A).
You’ll need
D
W-A W-B
Center pencil mark made in
Step 1.
2-3/4 in.
(70 mm)
