12 Need help? Call 800-620-2790
RF-TVMP40 TV Wall Mount
Mounting considerations:
•Wall Mount Bracket MUST be attached to
a stud or solid concrete. DO NOT attach
this product to hollow wall or any other
configuration.
•Make sure that the arm will have desired
unobstructed range of motion: up-down,
side-to-side, in-out (see RANGE OF
MOTION).
•Make sure cables will reach their
destinations with enough remaining
slack to allow Arm full range of motion.
•Use the RANGE OF MOTION illustration
to familiarize yourself with the
movements of this product. Take into
account that the TV will change location
from side-to-side when pulled out from
the wall.
•Use the SPACE REQUIREMENTS
illustration for maximum measurements
of this products full range of motion.

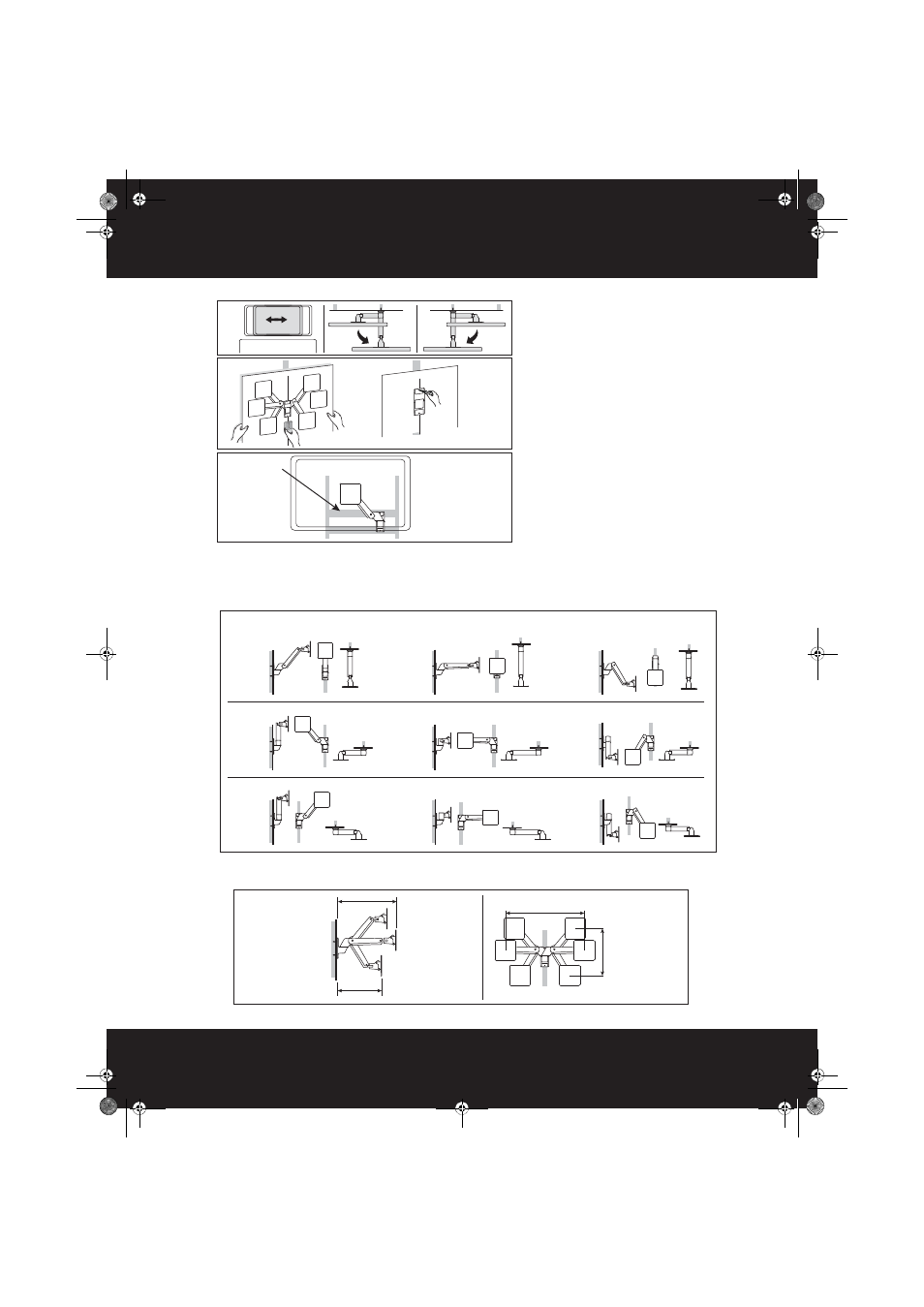

Range of motion:
Space requirements:
front
top
top
Horizontal
studs
If there is no available
stud for the TV location
you want, you can insert
horizontal studs into your
wall at the selected
mounting location.
Arm fully extended from wall
Arm flat against the wall (left)
Arm flat against the wall (right)
Full up
Full up
Full up
side
side
side
front top side front top side front top
side front top side front top
side front top side front top
front top
front top
Centered Full down
Centered Full down
Centered Full down
Distance from
the wall
side
front
24.5” (622 mm)
+ thickness of TV
18.2” (462 mm)
+ thickness of TV
Horizontal space requirements 34”
(858 mm) + width of TV*
Vertical space
requirements 20”
(508 mm) +
height of TV*
*Assuming mounting holes are centered on TV.
