6. Retrofit Installation
PNEG-1895 V2 Electronic Distributor Control 49

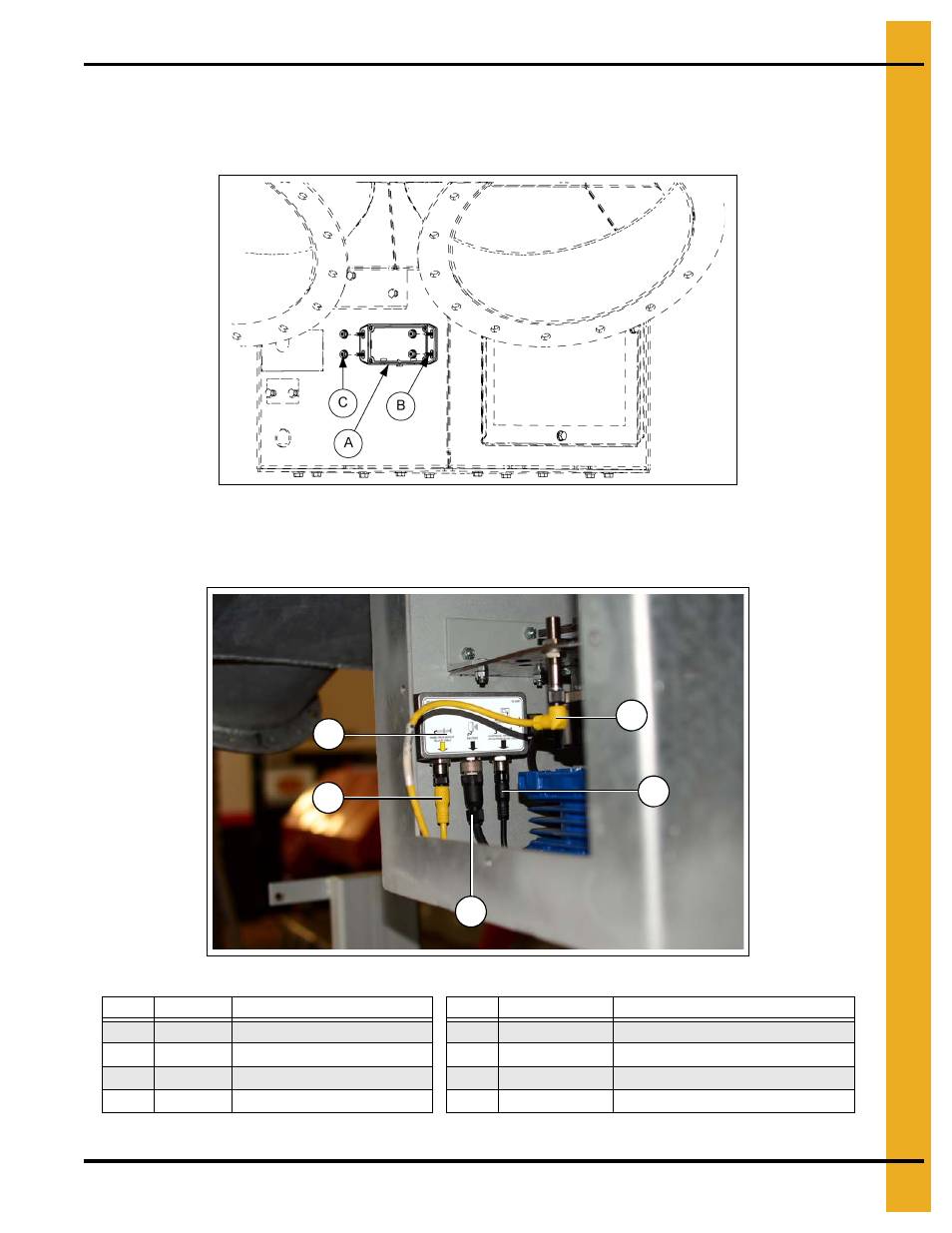

Installing the Connector Box and Cables
1. Install the connector box to the inside of the enclosure using four (4) bolts (B) and nuts (C).
Make sure nuts are located on the outside of the enclosure. (See Figure 6J.)
Figure 6J
2. Pull sensor cable through the conduit connected to the enclosure.
3. Connect cables to the connector enclosure. (See Figure 6K.)
Figure 6K Control Panel Wiring to Junction Box Electrical Connections
Ref # Part # Description Ref # Part # Description
A Enclosure E DEC0105 Connection Enclosure
B Bolts F DEC0106 Encoder
C Nuts G DEC0109 Over-Travel Proximity Sensor Cable
D DEC0108 Home Proximity Sensor Cable H DEC0026-XXX Sensor Cable
NOTE: “XXX” represent the length of the cable.
E
D
G
H
F
