3. Electrical Installation
10 PNEG-1895 V2 Electronic Distributor Control
Motor Cable to Motor Junction Box Fitting Connections
Remove the four (4) motor junction box cover screws (C) and the motor junction box cover (A) as shown
in
Figure 3C .
Pull motor wiring through conduit to enclosure and feed to motor junction box (B) and through provided
cord grip. Motor wiring should be routed within the enclosure to avoid close proximity to all sensor wiring.
Motor wiring should be kept at least 4" from any sensor wires.
(See Figure 3C.)

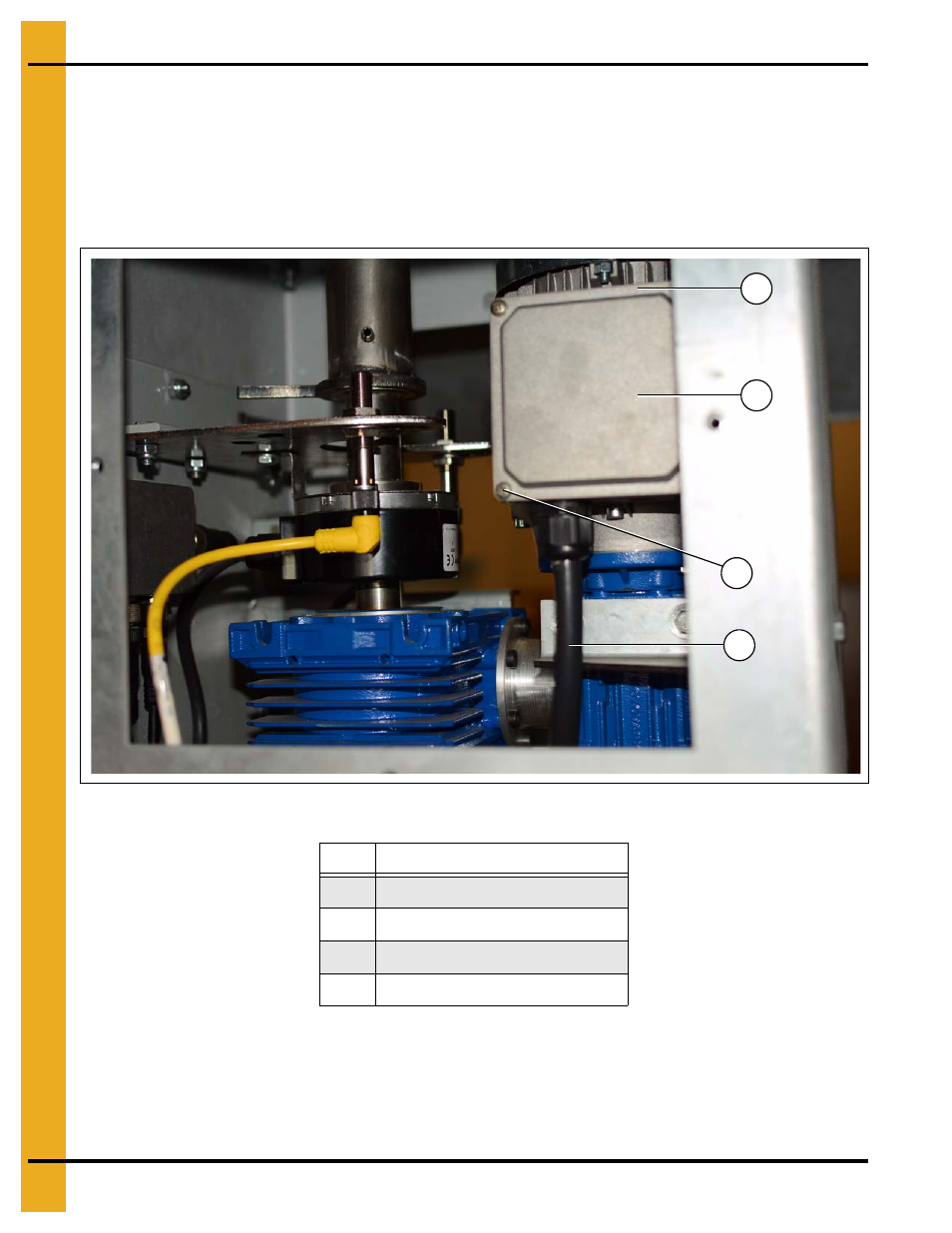

Figure 3C Cable fitting connection to motor junction box.
Ref # Description
A Motor Junction Box Cover
B Motor Junction Box
C Motor Junction Box Cover Screw
D Motor Cable
A
B
C
D
