Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1895 - Manual (Page 31)

4. Operation Procedures
PNEG-1895 V2 Electronic Distributor Control 31
Homing Warning
To help ensure accurate positioning of the distributor a homing warning will display when the number of
times the distributor is re-positioned is equal to the homing interval. This message will occur every time
that a spout move is attempted until the homing procedure is completed. The user will be given two (2)
options: “Home Now” and “Home Next Move”.
(See Figure 4S.)

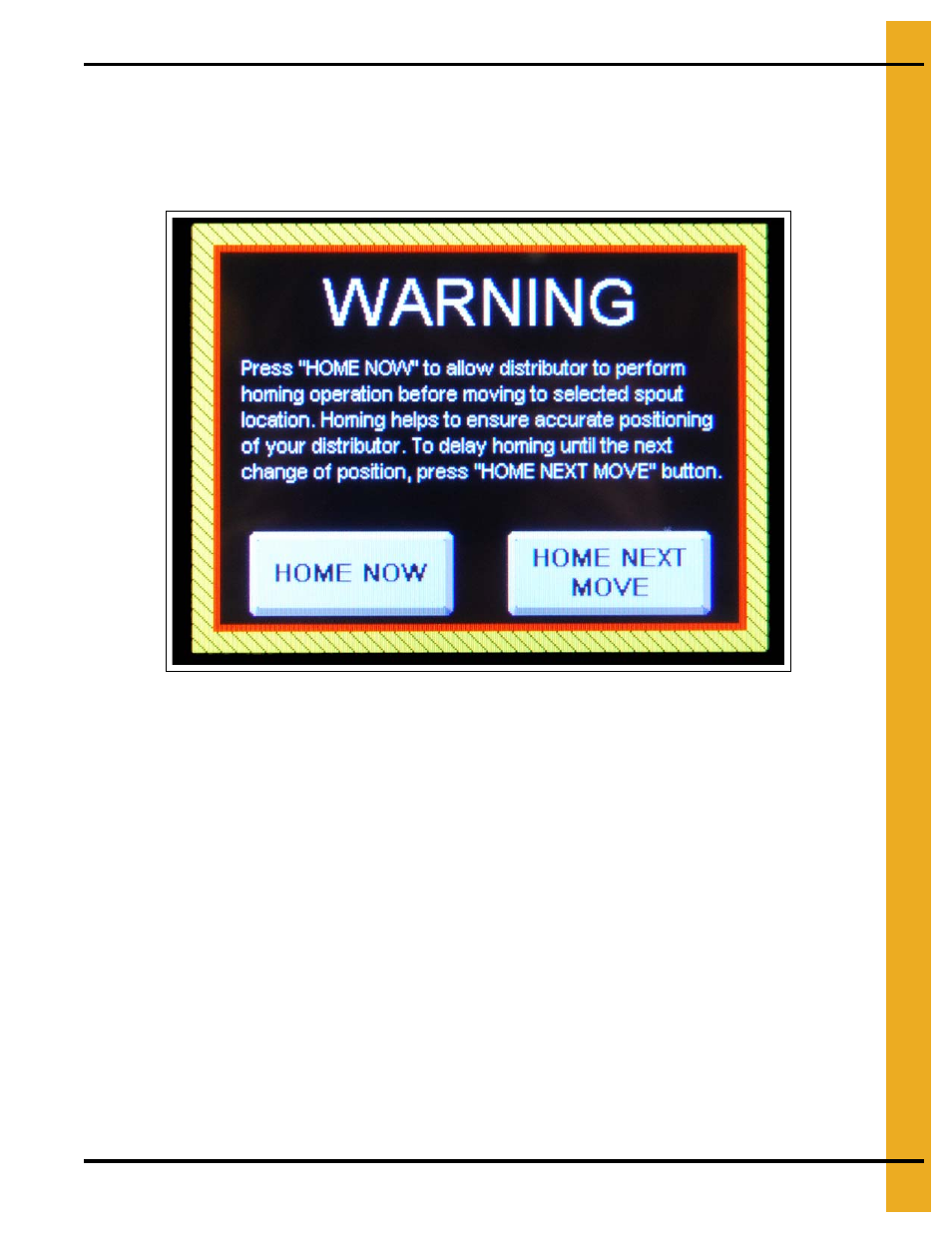

Figure 4S Homing Warning
Home Now
Select to perform the homing calibration immediately. The user interface will return to the “MAIN”
screen and “Homing” will be shown in yellow. After homing is complete, the spout will return to the
selected position.
Home Next Move
Select “Home Next Move” to skip the homing operation and move to the selected position. The user
interface will continue to prompt you to home the unit during every subsequent move until homing
is performed.
