4. Operation Procedures
30 PNEG-1895 V2 Electronic Distributor Control
Homing Interval Screen
The homing interval screen allows the user to set the number of times the distributor position may be
moved before a warning displays for home position re-calibration. A default value of 50 is standard.
(See Figure 4Q.)

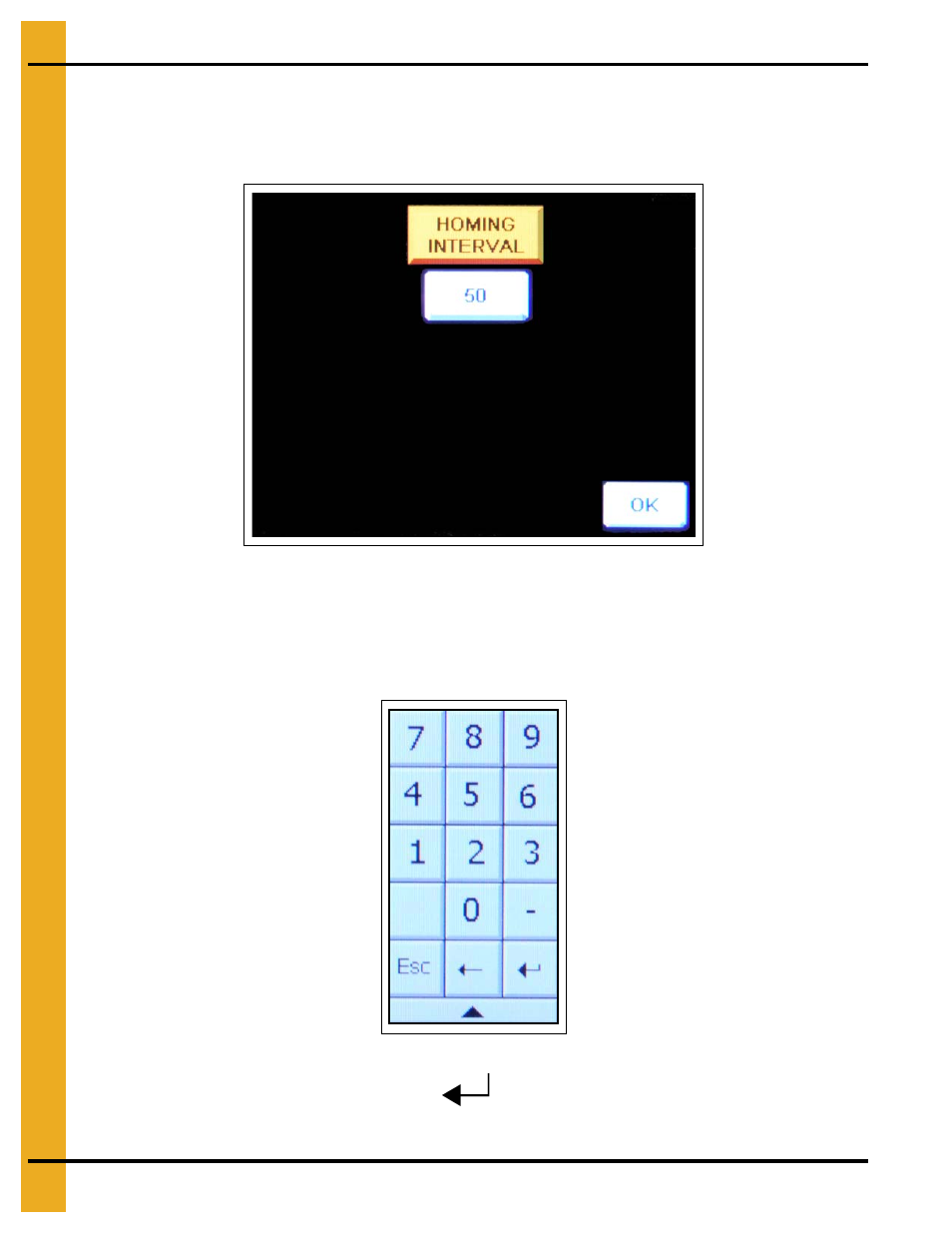

Figure 4Q Homing Interval Screen
Setting Homing Interval
1. To access the homing interval from the “Setup Menu”, select “Homing Interval” to display the “Homing
Interval” setup screen.
2. Press the button under the “Homing Interval” label. A number keypad will display. (See Figure 4R.)
Figure 4R
3. Insert the desired value and press “enter”.
4. Select “OK” to apply changes and return to “Main Menu”.
