6. Retrofit Installation
PNEG-1895 V2 Electronic Distributor Control 43
Proximity Sensor Location and Installation
NOTE: The location of the proximity sensor will be determined by the configuration of the distributor.
Using the table shown in
Figure 6D , locate the diameter and number of spouts of the distributor being
used and note the proximity sensor reference number. This reference number is marked on the bottom
of the proximity sensor bracket (DEC0006) (B) and identifies the location for installing the proximity
sensors (DEC0107) (A).
Install the two (2) proximity sensors (DEC0107) (A) into the proximity sensor bracket (DEC0006) (B) at the
appropriate locations determined from the table.
(See Figure 6D below and Figure 6E on Page 44.)

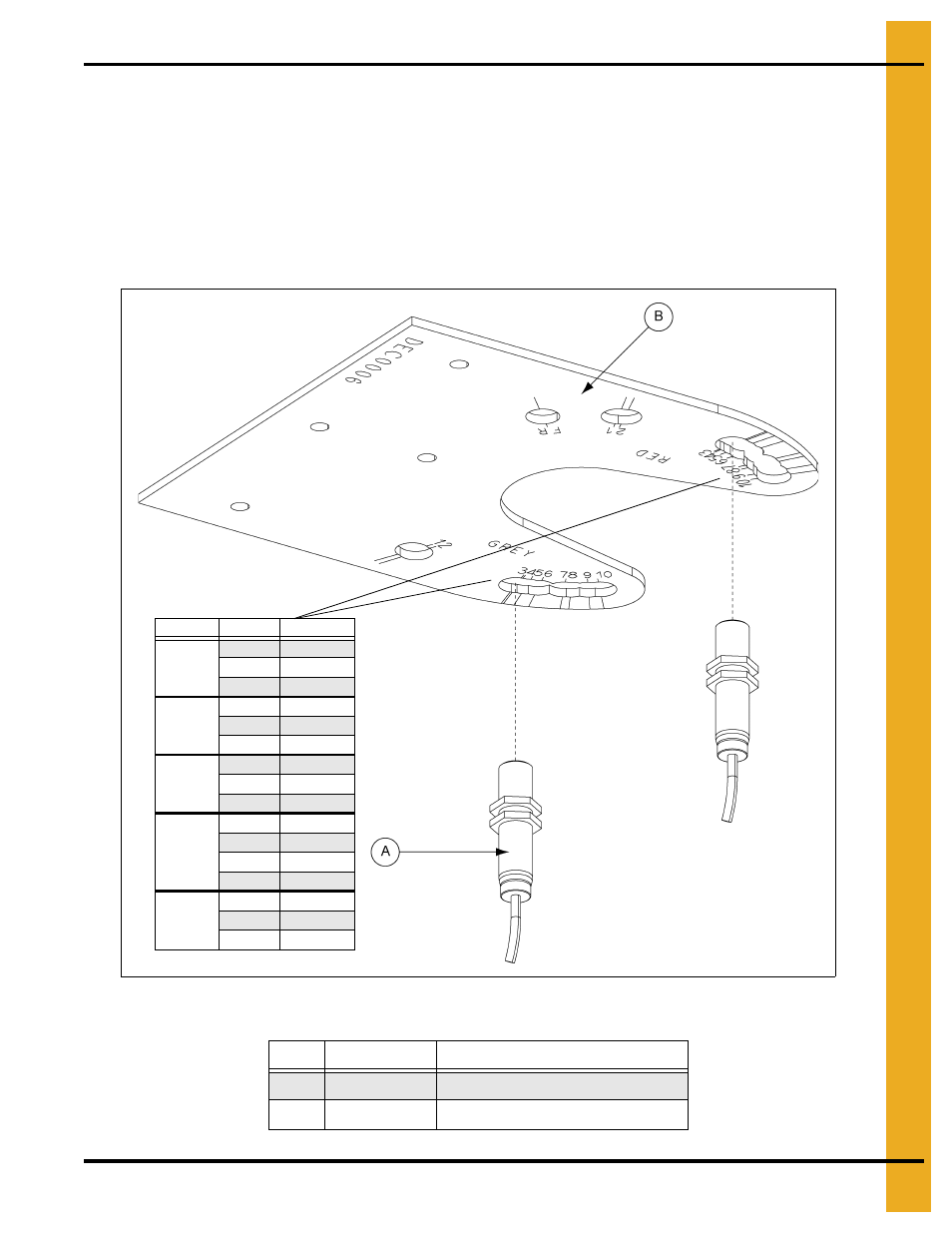

Figure 6D Proximity Sensor Location
Ref # Part # Description
A DEC0107 Proximity Sensor
B DEC0006 Proximity Sensor Bracket
Diameter # Spouts Prox Ref #
6
4 2
6 5
8 6
8
6 5
8 7
10 9
10
6 4
8 10
10 9
12
4 1
6 3
8 8
10 9
14
4 1
6 3
8 8
