4. Operation Procedures
22 PNEG-1895 V2 Electronic Distributor Control
Move Position Screen
This screen allows the user to change the distributor’s current spout position. The green highlighted spout
number indicates the current selection. A spout number with a red circle with a line through it indicates a
position that is currently locked-out. (See “Position Lock-Out Screen”
on Page 29 .) (See Figure 4G.)
NOTE: The default names for each spout will be “BIN #”, see “Position Names Screen” on Page 25 for
instructions for customizing the spout names.

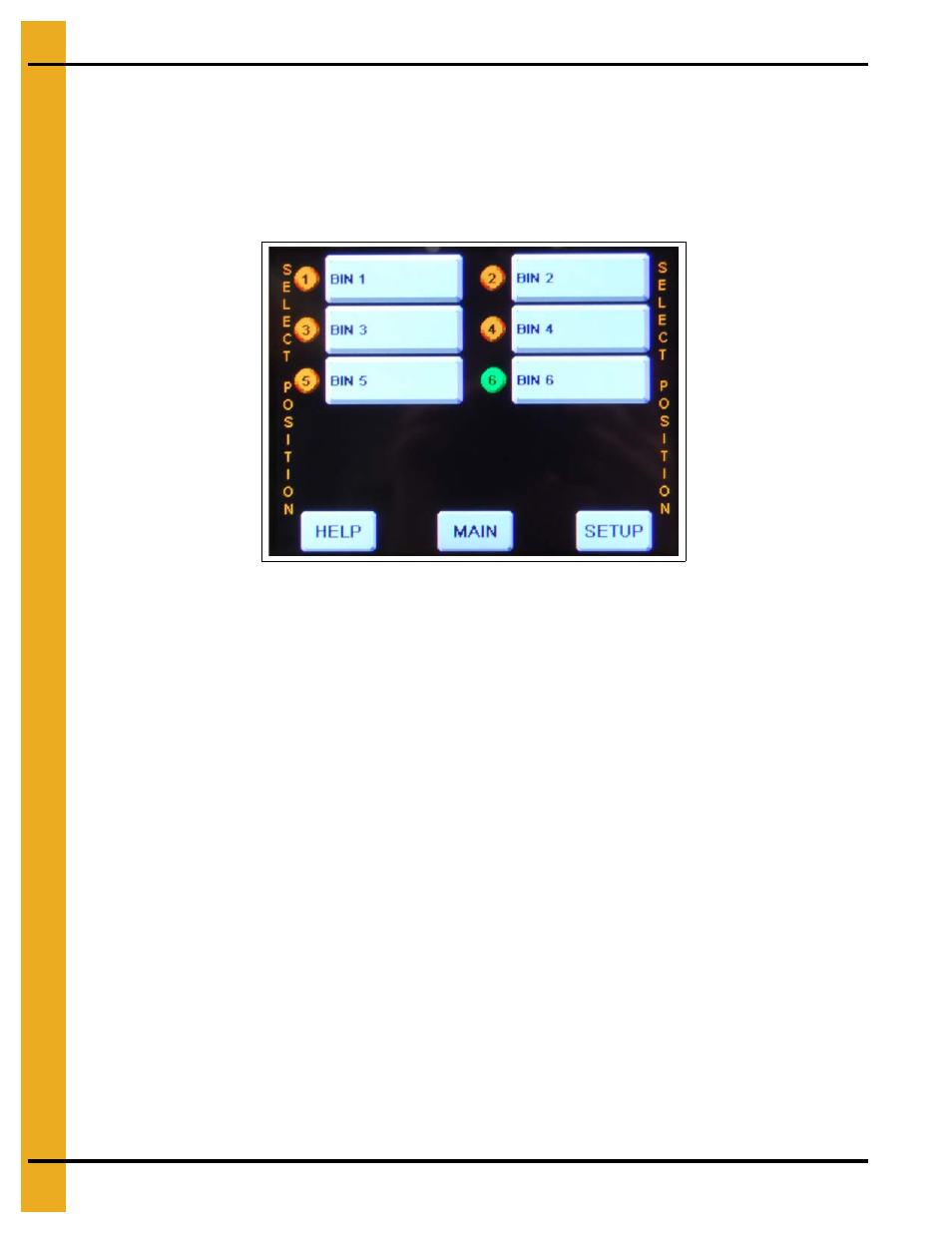

Figure 4G Move Position Screen
Moving Spout Position
1. On the “Move Position” screen, select the position you want the spout to move to by pressing the
button displaying the desired spout name on the screen.
2. The “Main Menu” screen will now display a flashing message “Moving to” at the top of the screen,
the selected spout number will flash yellow while the pointer is moving to the selected spout. The
destination spout number will turn green when the move is complete.
Verifying Spout Alignment
NOTE: In the following steps, the distributor must be in a position to view the spout location in the
distributor to verify that it lines up correctly. If the distributor is installed above ground level,
two (2) people will be needed; one to verify the alignment of the distributor spout and one to
operate the controller.
1. From the “Main” screen or the “Setup Menu”, select “MOVE” to view the “Move Position” screen.
(See Figure 4G.)
2. On the “Move Position” screen, select the position you want the spout to move to by pressing the
spout name on the screen.
3. The “Main Menu” screen will now display a flashing message “Moving to” at the top of the screen,
the selected spout number will flash yellow while the pointer is moving to the selected spout. The
destination spout number will turn green when the move is complete.
4. Once the spout has finished moving, visually check and verify the spout is centered with the
distributor discharge spout. If alignment requires adjustment, see “Position Locations Screen”
on Page 27 to adjust the positioning.
5. Repeat procedure for all other spouts.
