4. Operation Procedures
PNEG-1895 V2 Electronic Distributor Control 23
Setup Menu Screen

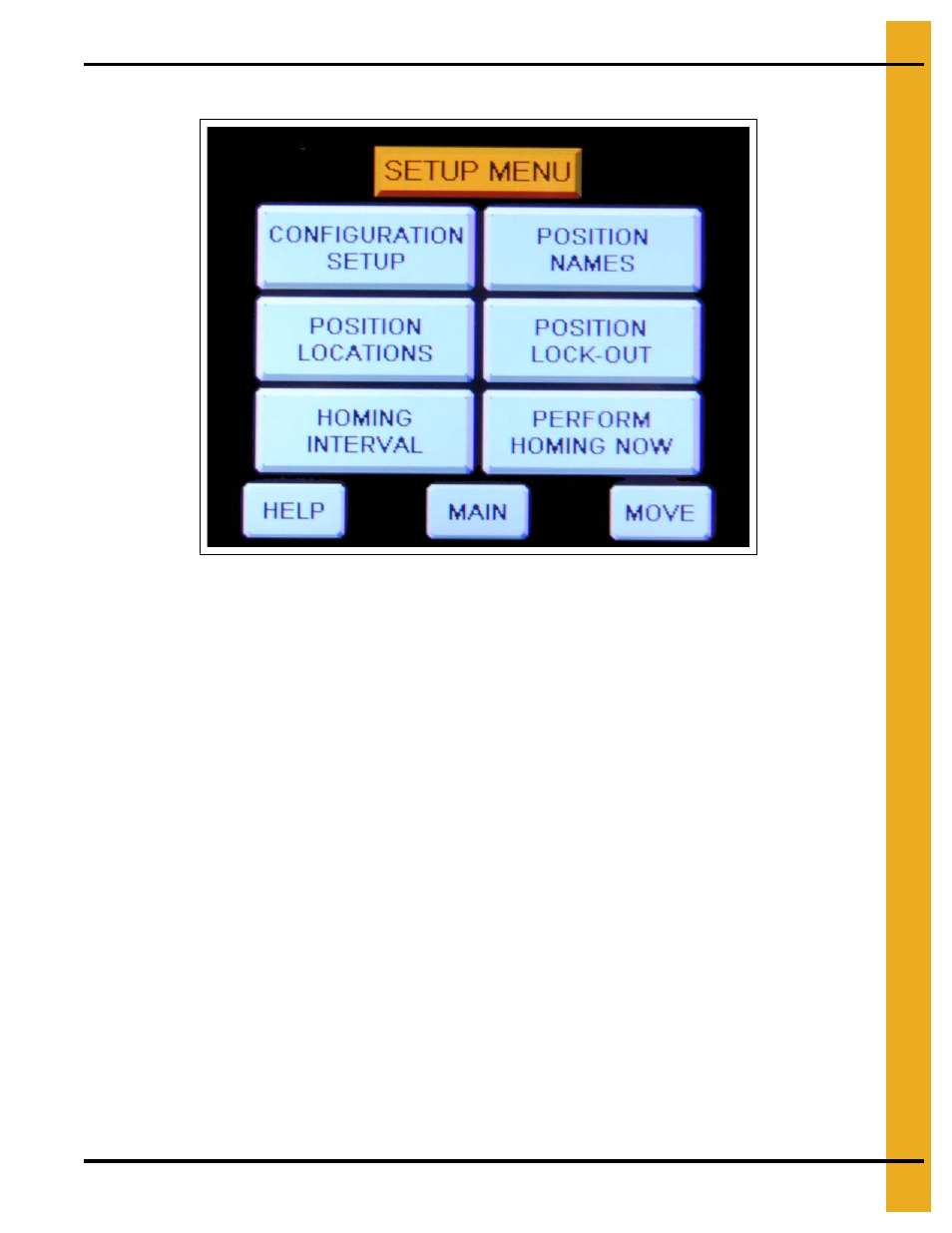

Figure 4H Setup Menu Screen
Configuration Setup: Displays the machine setup screen that allows the user to change the distributor’s
parameters or reload default values. See “Configuration Setup Screen”
on Page 24 .
Position Names: Allows the user to assign or change the name of each spout position and to create or
change a name for the distributor. See “Position Names Screen”
on Page 25 .
Position Locations: Displays the positioning screen which allows the user to set the value that aligns the
spouts with the distributor. See “Position Locations Screen”
on Page 27 .
Position Lock-Out: Allows the user to lock or unlock spouts from being used. See “Position Lock-Out
Screen”
on Page 29 .
Homing Interval: Allows the user to set the number of times before the “Perform Homing Now” warning
appears. See “Homing Interval Screen”
on Page 30 .
Perform Homing Now: Press this to perform the homing operation to re-calibrate the distributor.
