Grain Systems PNEG-1745 - Manual (Page 36)

4. WatchDog Operation
36 PNEG-1745 WatchDog
M/C (Moisture Setpoint) Button
Pressing the button will bring up a dialog box requesting to modify the current grain temperature
setpoint or the moisture setpoint depending upon the setup of the dryer. For example, Figure 4R shows
the dialog box that is presented when using temperature to control the moisture output of the dryer.

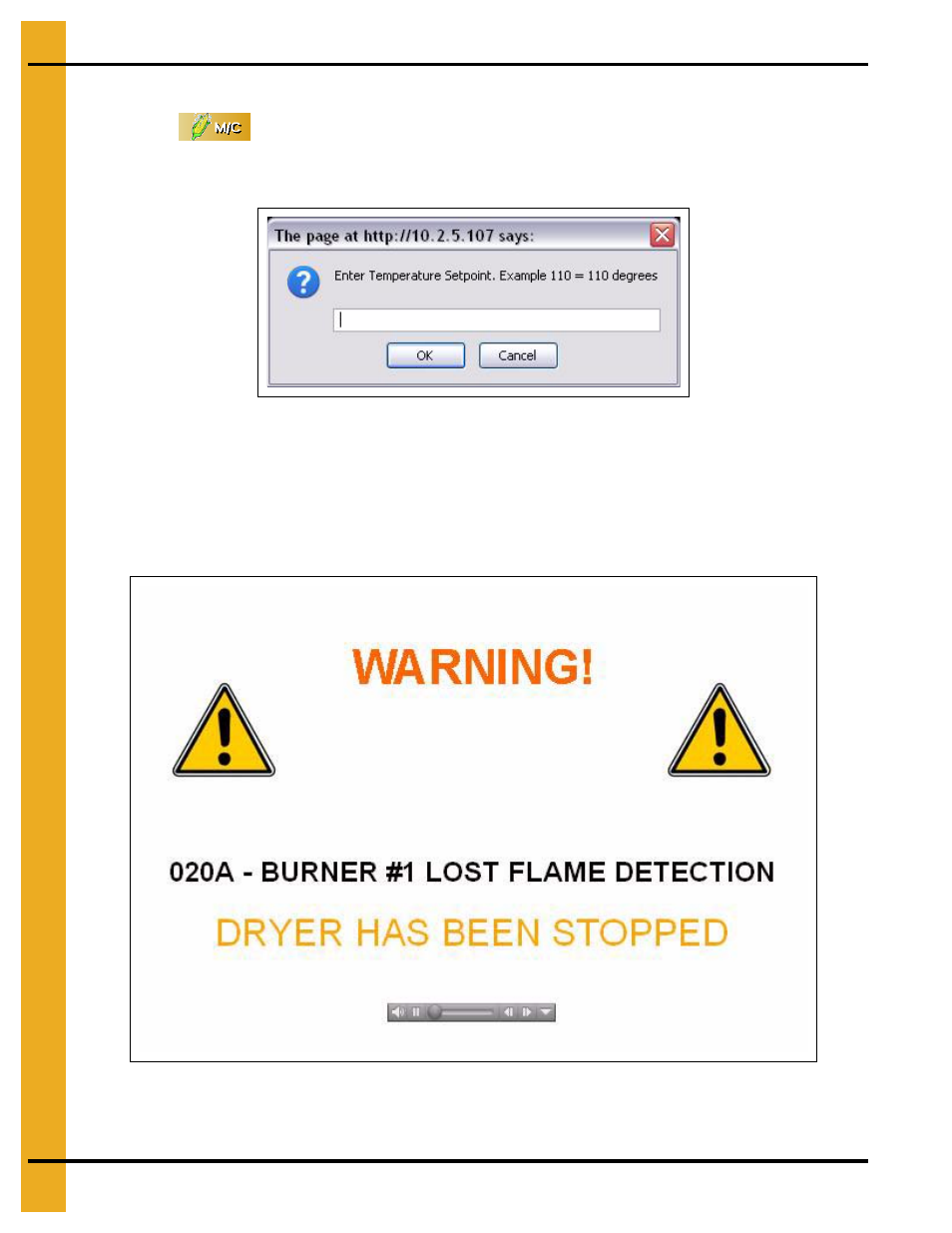

Figure 4R
Shutdown Screen
If the drying equipment experiences a shutdown, the screen in Figure 4S will be displayed by the WatchDog
System and an audio file will be played (dogs barking). It indicates that the dryer has shutdown and gives
the reason why. The shutdown can only be cleared by pressing the STOP button at the dryer.
Figure 4S
