28 PNEG-1745 WatchDog
4. WatchDog Operation
Login Screen
When the web browser initially makes contact with the WatchDog System, you will be presented with a
screen requesting a password.
(See Figure 4A.) Once the password has been entered, you must press
the LOG IN button to accept the password. Default password is default.

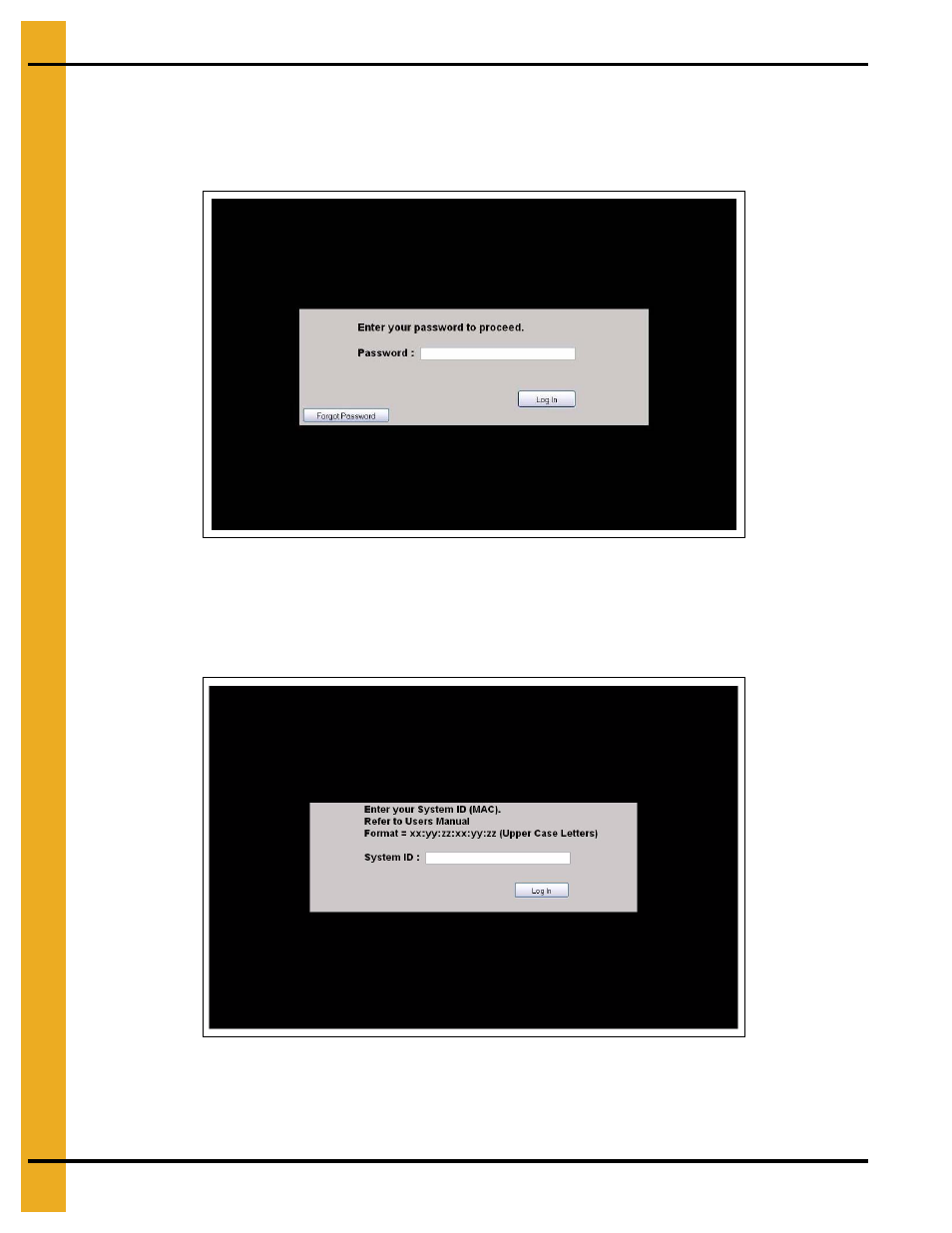

Figure 4A
If you have forgotten the password, press the “Forgot Password” button shown in Figure 4A . This will bring
up the screen shown in Figure 4B . This screen will ask for the WatchDog board’s “MAC Address”. This
sequence of numbers and letters (all capitals) can be found on a sticker located on the top of the
WatchDog board.
Figure 4B
Once the password has been reset, you may log in with the default password, which is simply default
(all lower case), but immediately go to the setup menu and change the default password to something of
your choice. Please record and place the new password information in a safe place.
