3. Installation

12

PNEG-1745 WatchDog

4. Connect the 3 position quick connector of Serial Cable #1 to the “AUX SERIAL PORT” on the

Display I/O board located on the back of the touch screen. The connector is polarized so care should
be taken to plug it in correctly.

(See Figure 3E.)

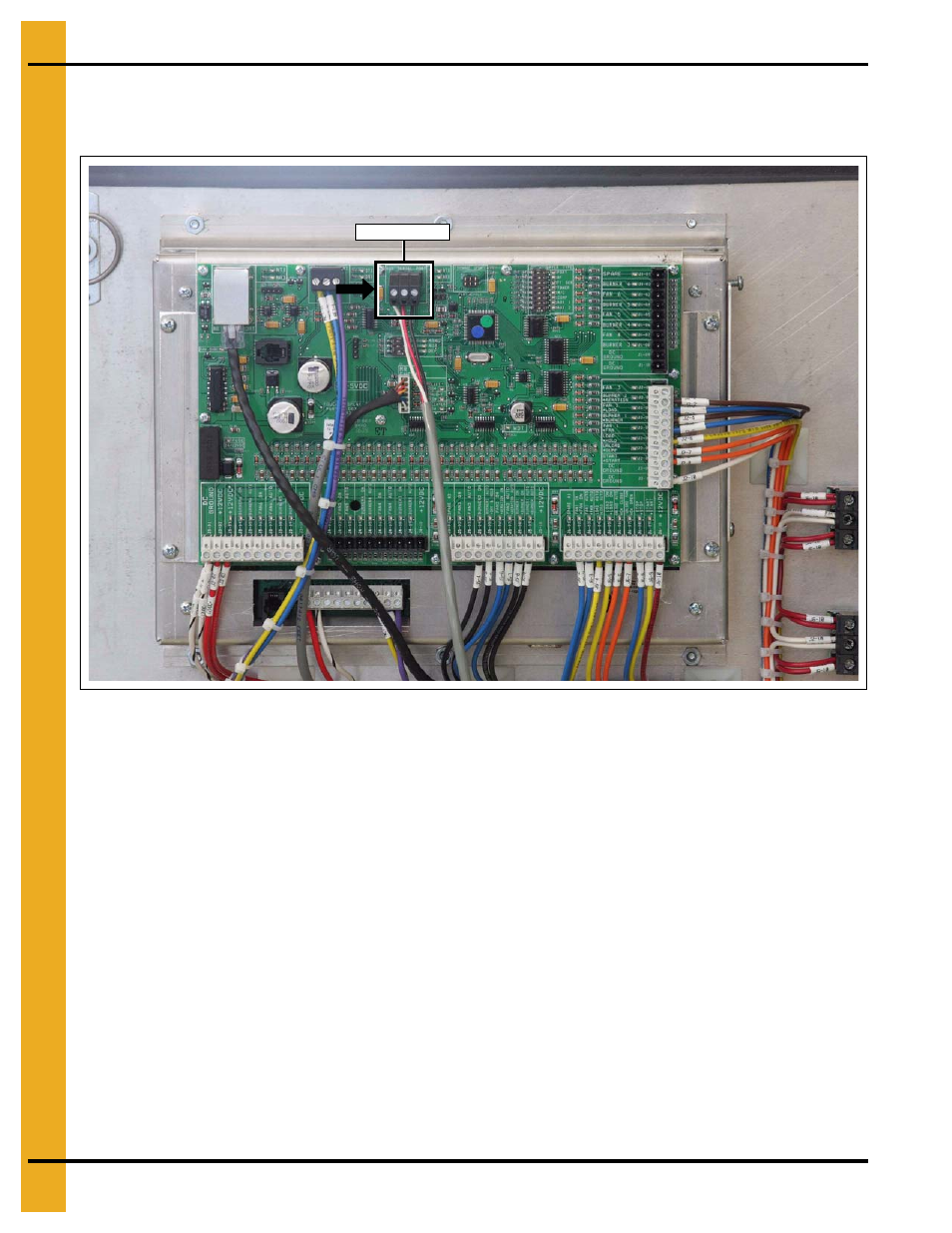

Figure 3E

Aux serial port
