4. WatchDog Operation
PNEG-1745 WatchDog 33
Setup Button

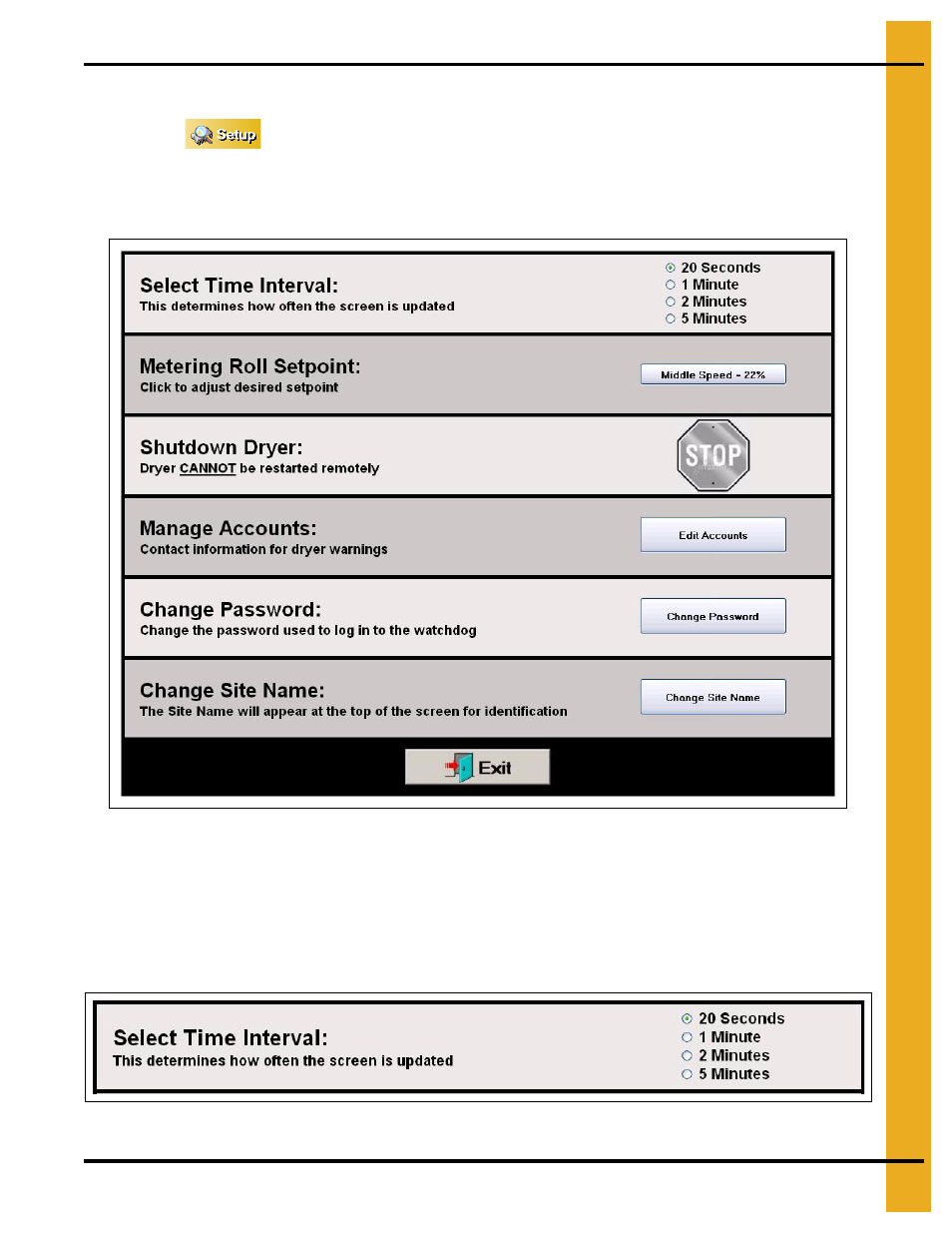

Pressing the button will bring up the screen shown in Figure 4J . The Setup screen is not used
to setup the dryer as it would at the dryer control, but it is used to further setup the WatchDog System.
The Setup screen has been broken into six (6) distinct functions and these will be addressed in the
following sections.
Figure 4J
Select Time Interval
This set of radio buttons allows the user to select how often the WatchDog System contacts the dryer for
information. For example, if 20 Seconds is chosen, as shown in
Figure 4K , the WatchDog screen will be
updated once every 20 seconds. If you have limited Internet bandwidth, it is best to choose the longest
interval that is acceptable.
Figure 4K
