3. Installation

PNEG-1745 WatchDog

11

Install Procedure

This installation takes place in the lower control panel of the Vision system. Follow the steps listed below
to install the components:

1. Turn OFF power to dryer and control panel.

2. If a cellular modem is being installed, first refer to

Appendix A on Page 45

for a few extra instructions

and then return here.

3. Place mounting plate with WatchDog circuit board attached over two (2) existing bolts on the right

side of the lower control panel. Secure it using the two (2) 1/4" nuts supplied. Position the mounting
plate so the white sticker is in clear view.

(See Figure 3D.)

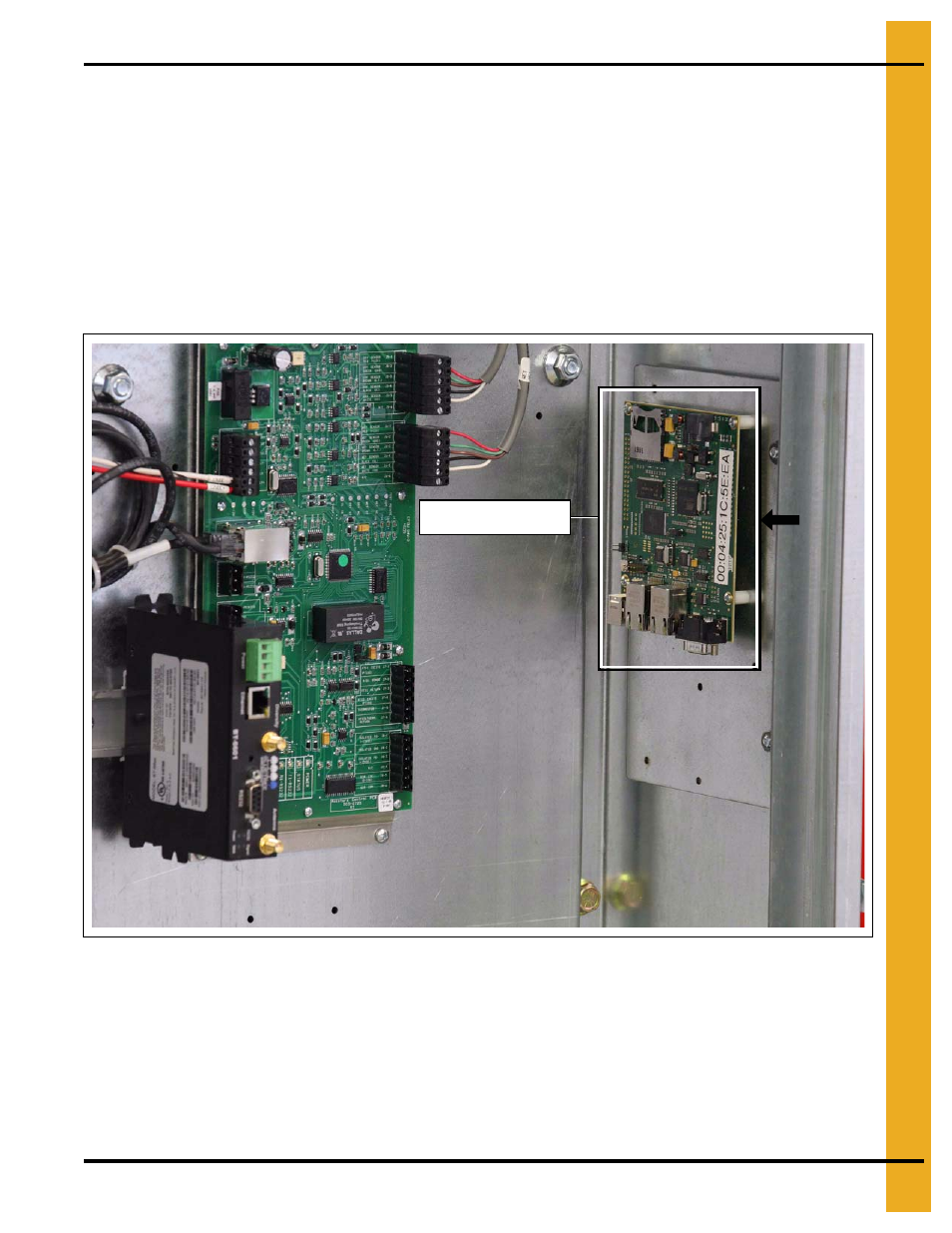

Figure 3D

Mounting plate with
WatchDog circuit board
