8. Install new lower arm to the frame and axle mount brackets using original hardware. See Photo 5. DO NOT
tighten control arm bolts until vehicle is on the ground. If upper adjustable arms or Cam setup have been
purchased for upper arms install them at this time. Repeat these steps on the other side.
9. Install the new Rough Country coil springs as shown in Photo 6 making sure the rubber isolator is positioned in
the upper mount. It will be necessary to use a coil spring or strut compressor to install the new coil springs.
10. Jack up the axle to compress the coil spring and to a align the track rod with the new mounting point and install
using a 12mm x 65mm bolt and flange lock nut. See Photo 7.
11. Assemble shock # 658696 with the shock bushings and sleeves. Install the shocks on the vehicle with the factory
hardware as shown in Photo 8. Tighten the bar pin on the top of the shock with the stock hardware using a On
the lower mount install the supplied washer next to the bushing on its outside face. Note: If the rear sway bars
are disconnected a shock relocation bracket will be needed to prevent potential rubbing. This bracket is
available from your Rough Country distributor.
12. Reinstall the wheels and tires. Lower the vehicle to the
ground and tighten the lug nuts to the factory specifica-
tions (80-110 ft. lbs) using crossing pattern.
13. On the rear, slightly grease and insert the sway bar
bushings and 10mm sleeves in the new rear extended
sway bar links.
14. Secure the links to the stock location, using the 10mm
x 60mm bolt, washers and nuts supplied. On the upper
mounts you will reuse the factory winged nut. Tighten
to 40 ft. lbs using a 15mm socket / wrench. See
PHOTO 9.
15. Tighten lower arm pivot bolts to 130 ft. lbs and the rear
track bar mounting bolts to 74 ft. lbs.
16. Install transfer case drops or if purchased drive shaft/
SYE combination at this time per the instructions in-
cluded in packaging.

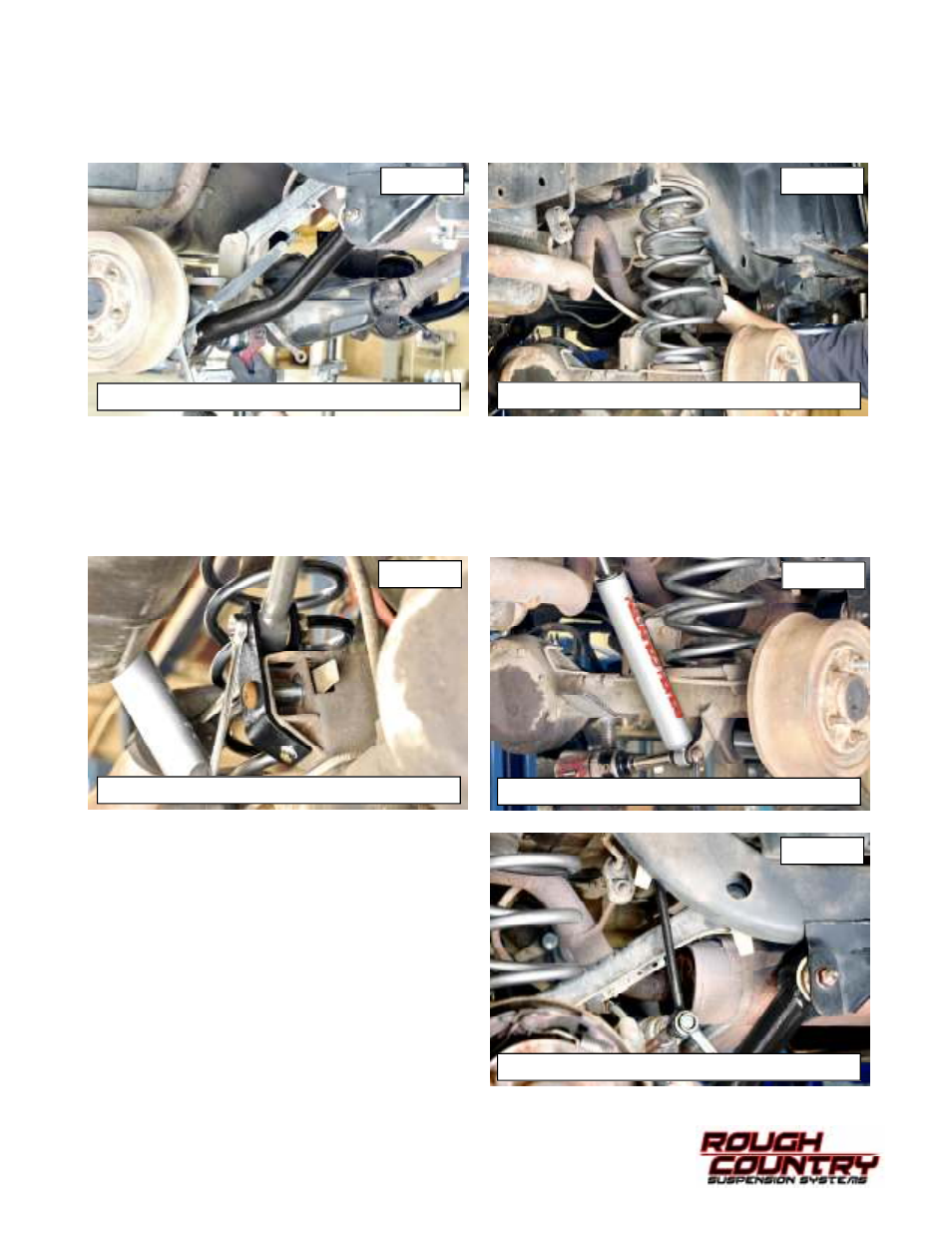

PHOTO 5 PHOTO 6
PHOTO 7 PHOTO 8
PHOTO 9
INSTALL LOWER CONTROL ARM INSTALLCOIL SPRING
REINSTALL TRACK ROD IN BRACKET INSTALL SHOCK ABSORBERS
INSTALL SWAY BAR LINK
