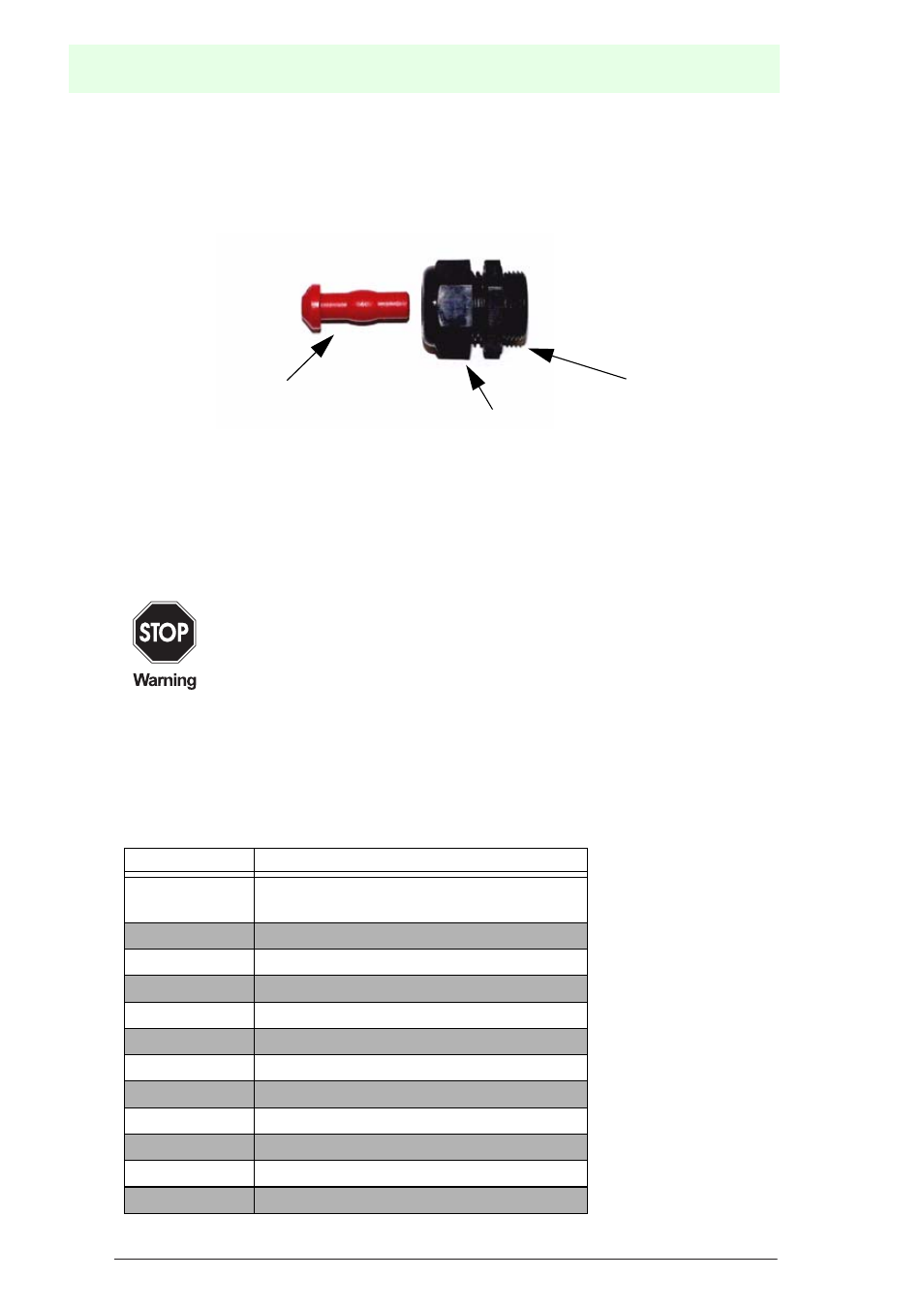

7.1.5 Mounting the stop plug
A cable gland that is not being used must be provided with a stop plug to maintain the
protection class.
When mounting the stop plug, the cable gland must be provided with all seals.
1. Remove the cap nut from the lower part if this has not already been done.
2. Push the stop plug up into the cable gland as far as it will go.
3. Tighten the cap nut securely Note the tightening torques in chapter 7.1.2 and in
chapter 7.1.3.
7.1.6 Mounting the FieldBarrier RD0-FB-Ex4
You will find information on mounting in chapter 4.4. You will find information on per-
missible conductor cross sections and tightening torques for screws in chapter 4.5.
7.2 FieldBarrier connections
The layout of the connections for the FieldBarrier depends on what type you are using
Always observe the operating instructions when placing the system in
service. You will find these in of this manual chapter 4.
Terminal Function
1B, 2B Capacitor jumper wire (jumper wire
present ==> hard grounding)
3+ trunk +
4- trunk -
5S trunk shield
6S trunk shield
7- trunk -
8+ trunk +
10+ Output 1 +
11 - Output 1 -
12S Output 1 shield
13+ Output 2 +
14- Output 2 -
Stop plug
Lower part
Cap nut
