Mechanical dimensions

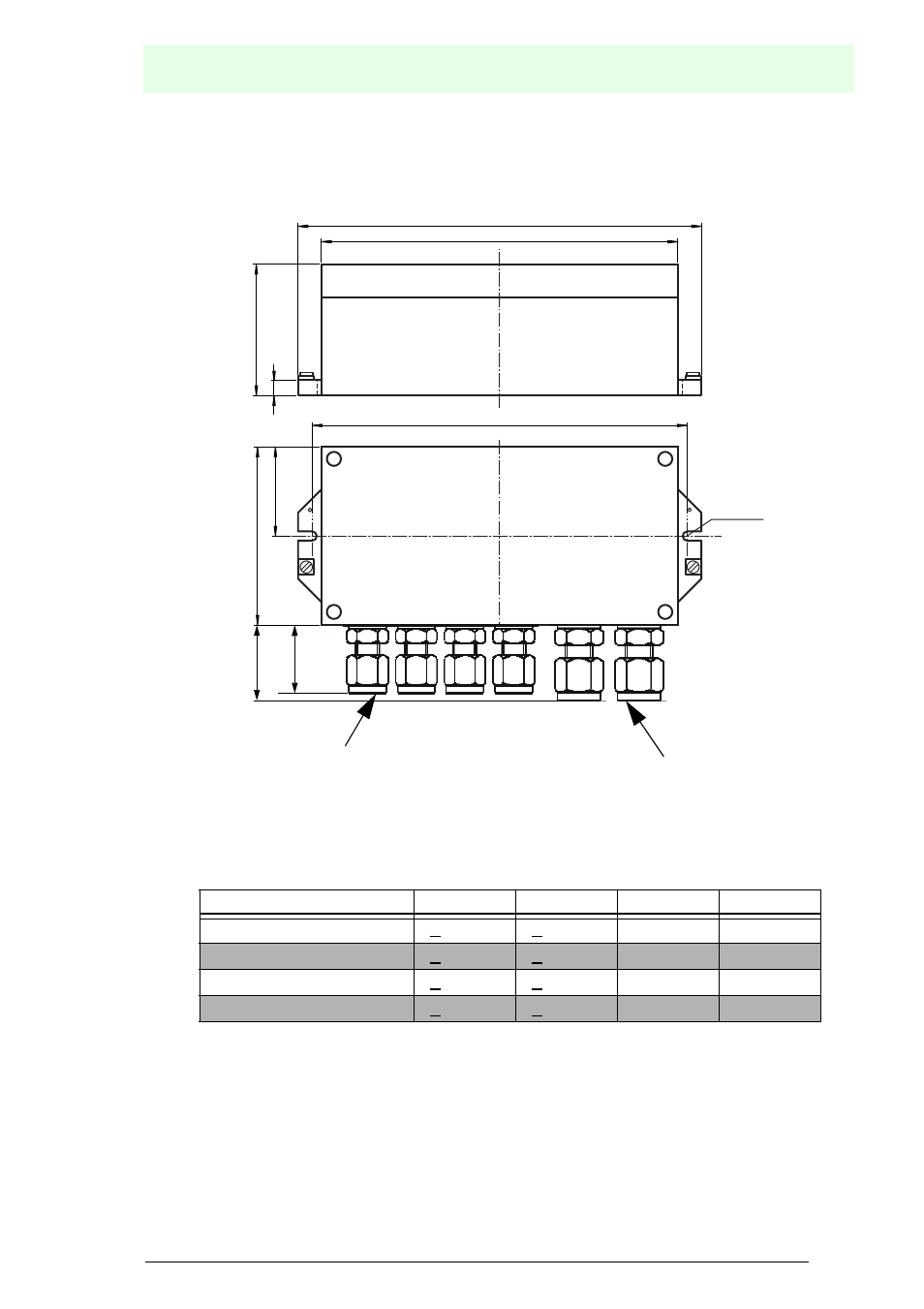

The mechanical dimensions are shown in the following illustration:
Figure 6.4: Mechanical dimensions of the F2D0-FB-Ex4.***
Dimensions X1, X2, SW1 and SW2 depend on the type of FieldBarrier. Please refer
to the following table for dimensions:
Table 6.1: Dimensions of the cable glands/cable bushings
Type
X1
X2
SW1
SW2
F*D0-FB-Ex4.CG
< 26 mm
< 28 mm
20
24
F*D0-FB-Ex4.CGB
< 22 mm
< 24 mm
20
24
F*D0-FB-Ex4.CGS
< 22 mm
< 24 mm
22
24
F*D0-FB-Ex4.CGAB
< 42 mm
< 42 mm
20
24
für
Befestigung
mit M6
(57)
114
240
9,5
84
258
228
x1
x2
Wrench size SW1
Wrench size SW1
