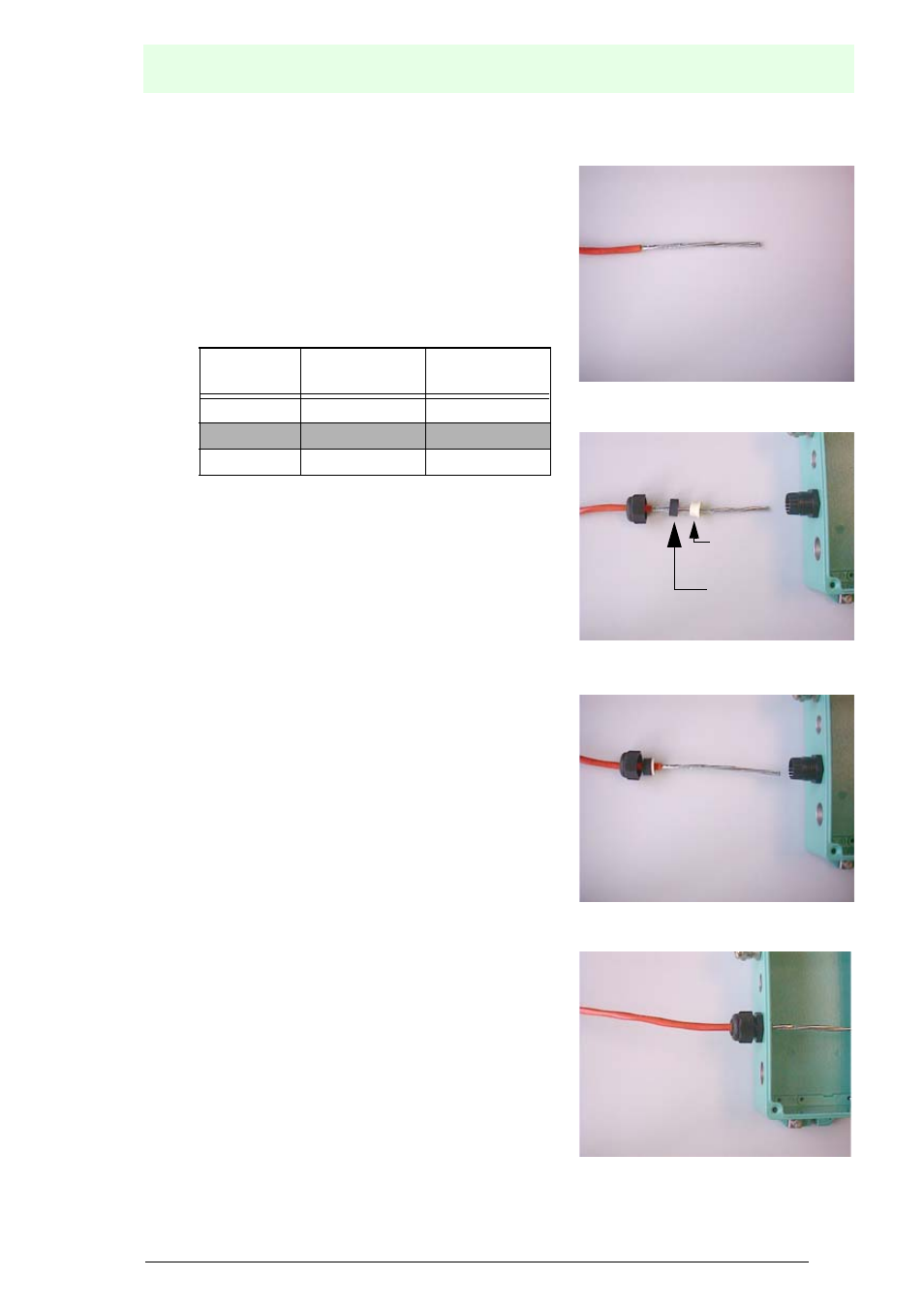

7.1.2 Handling F*D0-FB-Ex4.CG cable glands
1. Insulate the covering of the cable up to about
160 mm.
2. Loosen the cap nuts from the
FieldBarrier and push it onto the cable.
Remove the seals from the FieldBarrier as
well and push them onto the cable.
The following table will indicate when Seal 1
should be used and when it is not required:
Seal 2 must always be used!
3. Push the seals that are used far enough over
the cable so that the covering extends about
5 mm beyond the seal.
4. Insert the cable with the seals you are using
into the cable gland of the FieldBarrier. Then
tighten the cap nut.
The tightening torques of cap nuts depend on
what type of cable is used and must therefore
be determined by the user.
As a rough guide for the FieldBarrier of type
F*D0-FB-Ex4.CG you may use 2.5 Nm for
the cap nut and 3.75 Nm for the lower part.
Type
Terminal
area [mm]
Seal 1
M16 x 1.5 5 - 10 No
M20 x 1.5 5 - 8 Yes
M20 x 1.5 8 - 13 No
Step 1
Step 4
Step 3
Step 2
Seal 1
Seal 2
