VEGAMET 514 33

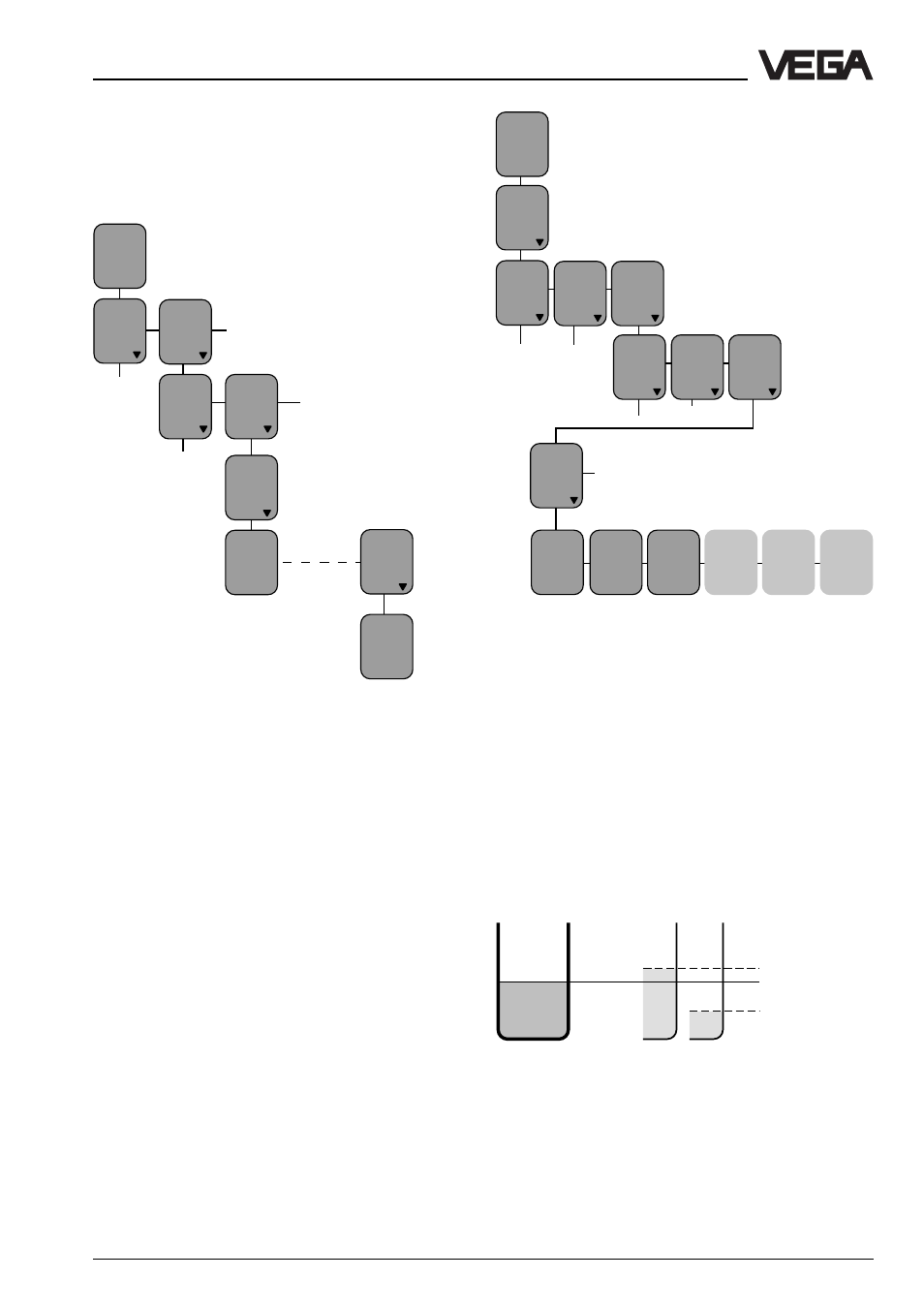

7.3 Monitoring
To activate monitoring, the following
prerequirements must be met:
Meas.
value 50 %
High 5 %
Low –5 %
>55 %
Relay
deenergises
<45%
Settings in the "extended menu"
• Choose in the menu item " Input from "
(under the menu item " Monitoring ") input
4.
• Connect a key switch (opener) to input 4.
Confi-
gura-
tion
Config
inputs Config
meas.
loop
TAG 1
Level
Appli-
cation
Level
Param.
TAG-
No. 1
TAG -
No. 1
%
xx,x
Monitor-
ing
Input
from
In-
put4
• Choose in the menu range " Parameter
adjustment relay outputs " in the menu
item " Mode " the mode " Monitoring " for the
selected relay.
The selected relay becomes energised. By
pushing the key switch (opener opens), the
actual measured value is first of all frozen
and, derived from this, the relay deenergises
if this value is underrun (Low) or exceeded
(High). After a reset and a repeated pushing
of the keyswitch, the actual measured value
is again frozen.
Param.
TAG-
No. 1
TAG -
No. 1
%
xx,x
Adjust-
ment Signal
condi-
tioning Out-
puts
Cur-
rent
out-
puts Volt
outputs Relay
outputs
Relay
output
1
prop.
to
Per-
cent
Unit
0,0%
Mode
(Moni-
toring)
Low
%
5,0
High
%
5,0
Moni-
toring
Low &
High
If the monitoring function should be can-
celled, first of all the monitoring must be can-
celled in the menu item "
Mode ". Then the
allocation of the correction input (input 4)
must be cancelled under the menu item
"
Monitoring ".
