28 VEGAMET 514
In the menu items "Pos. D" and "Pos. E" you
can specify if input 4 is to used for one of the
stated correction modes (input 4 is the cor-
rection signal input on terminals 22d and
24d). You then have to enter a value at which
the correction should be carried out under
"Parameter adjustment" –– "Special funct." in
the menu items "Real value correc. at…" or
"Density correc. at…".
Note!
Input 4 can also be used for Tare and
Monitoring. However, it is not possible to use
it at the same time for taring, monitoring and,
for example, density correction!
Settings in the "extended menu"
In the menu item "TAG name" you can assign
an individual name to the measurement loop.
If you choose "Fault signal off", the fail-safe
relay and the failure LED on the front plate will
be nonoperable. For a description of the
correction modes, see the following pages.

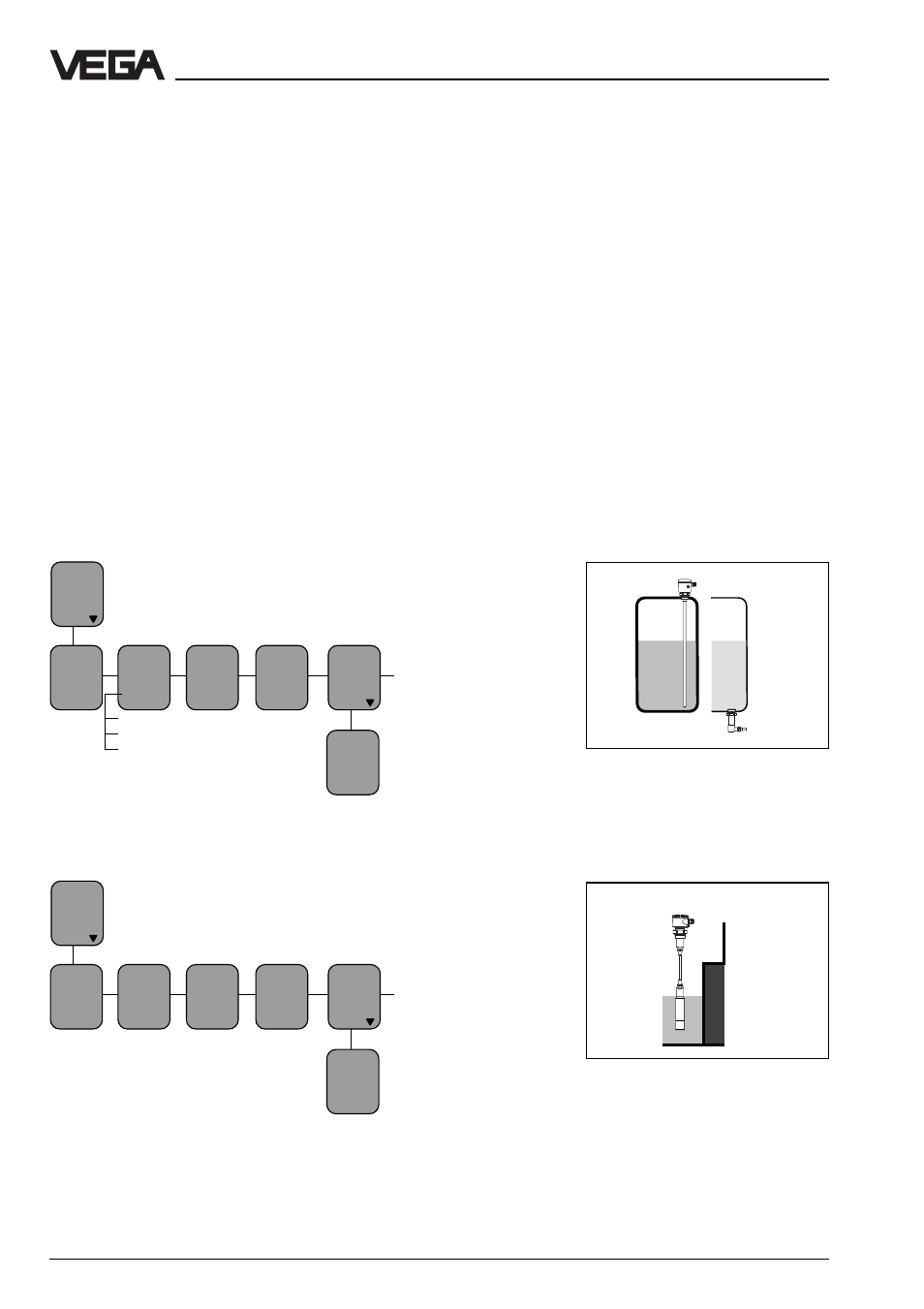

Level measurement
Level measurement
Gauge measurement
Gauge measurement
TAG 1
Gauge
Appli-
cation
Gauge
Sensor
type
Hydro-
static
Mode
Stan-
dard
Option
no
option
Sensor
coordi-
nation
Posi-
tion A
In-
put1
TAG 1
Level
Appli-
cation
Level
Sensor
type
Hydro-
static
Mode
Stan-
dard
Option
no
option
Sensor
coordi-
nation
Posi-
tion A
In-
put1
Capacitive
VEGABAR
VEGADIF
Pos. A
Pos. A
Pos. A
