7 Settings in the "extended menu"
7.1 Configuration of measurement loop
Settings in the "extended menu"
The measurement loop configuration is nor-
mally already done at the factory. Should a
fundamental modification of the measurement
loop configuration be necessary, a "Reset to
single measurement" must first be carried out
(in the menu "Additional functions", "Reset
VEGAMET"). Only then can you modify the
adjustments in the menu items Application,
Sensor type, Mode and Option. You should,
therefore, work on the individual menu items
in the given sequence. The selection or ad-
justment possibilities always depend on the
adjustment in the previous menu item. If, for
example, in the menu item Application "Level"
is adjusted, the sensor mode that is suitable
for level detection can be selected in the
menu item "Sensor type".
As soon as you have carried out and con-
firmed an adjustment in the menu item "Op-
tion", the following message appears on the
display "TAG being created!". You choose the application 4/20 mA when
you want to connect a sensor of another
manufacturer to the VEGAMET.
In the following illustrations, further applica-
tion modes are shown. In addition, you will
see there which adjustments you have to
carry out in the menu items "Sensor type" and
"Mode".
The menu item "Position D" only appears if in
the menu item "Option" either "Offset correc-
tion" or "Real value correction" has been set.
The menu item "Position E" only appears if in
the menu item "Option" either "Density
correction" or "DK correction" has been set.

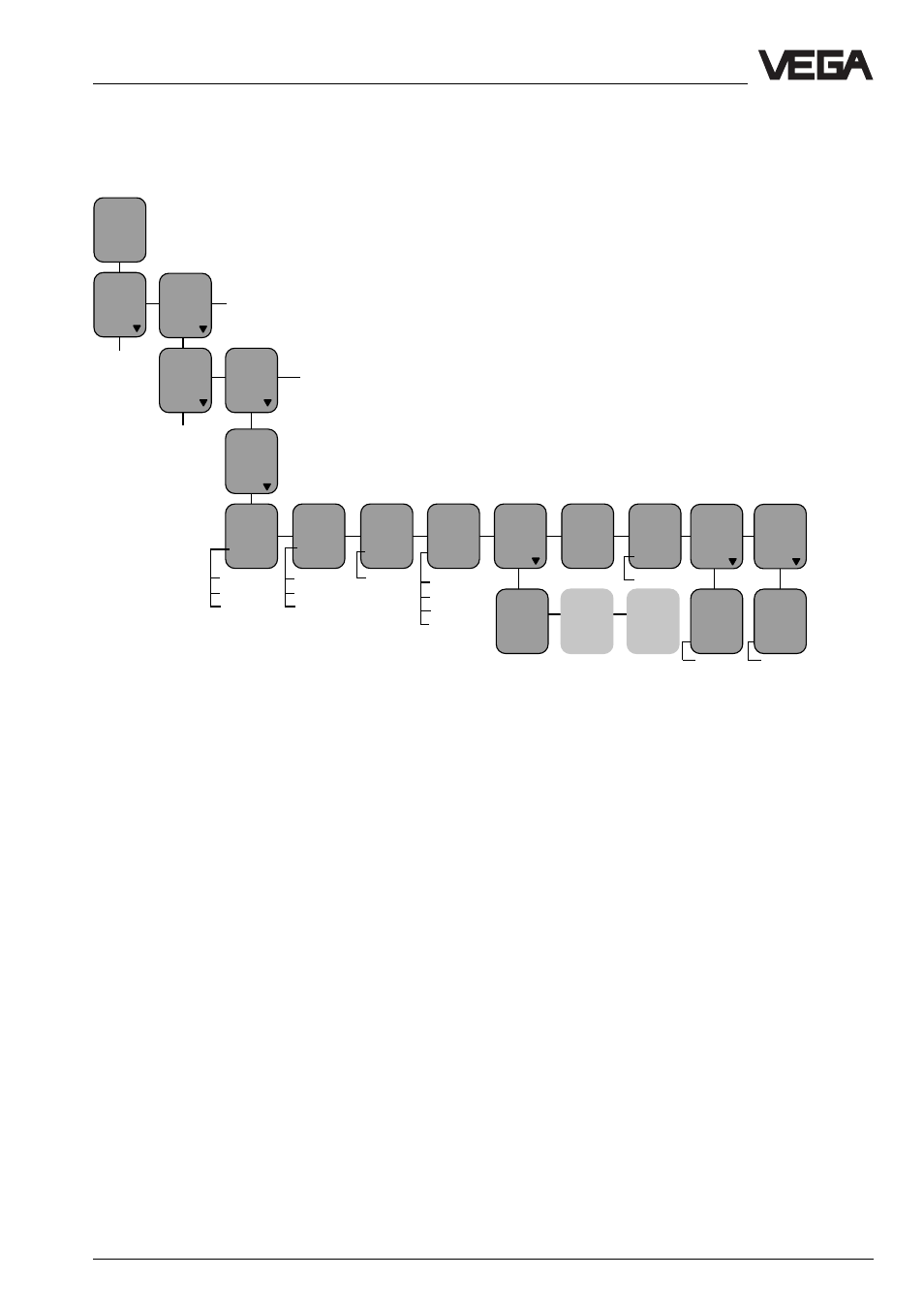

Confi-
gura-
tion
Config
inputs Config
meas.
loop
TAG 1
Level
Appli-
cation
Level
Sensor
type
Hydro-
static
Mode
Stan-
dard
Option
no
option
Sensor
coordi-
nation TAG
name
TAG -
No. 1
Posi-
tion A
In-
put1
Fault
signal
on
Param.
TAG-
No. 1
TAG -
No. 1
%
xx,x
off 0/4-20mA
Gauge
Pressure capacitive
VEGADIF
VEGABAR Dif-
ference
Tare Moni-
toring
Input
from
undef-
ined
Input
from
undef-
ined
Posi-
tion D
In-
put4
Posi-
tionE
In-
put4
