24 VEGAMET 514
6.6 Output
The current output of VEGAMET is set to
4 … 20 mA. By pushing [+] or [–] and [OK]
you can set the output to the following values:
0/20 mA, 20/4 mA and 20/0 mA.
Beside the preadjustment (0/10 V), the follow-
ing options are available for the voltage out-
put: 10/2 V, 10/0 V and 2/10 V.
As a factory setting, the relay outputs are set
to mode "Overfill protection" (mode A). By
pushing [+] or [–] and [OK] you can assign
the mode "Dry run protection" (mode B)
separately for each relay output. In the next
menu items you can determine the upper and
lower switching points for the set mode.

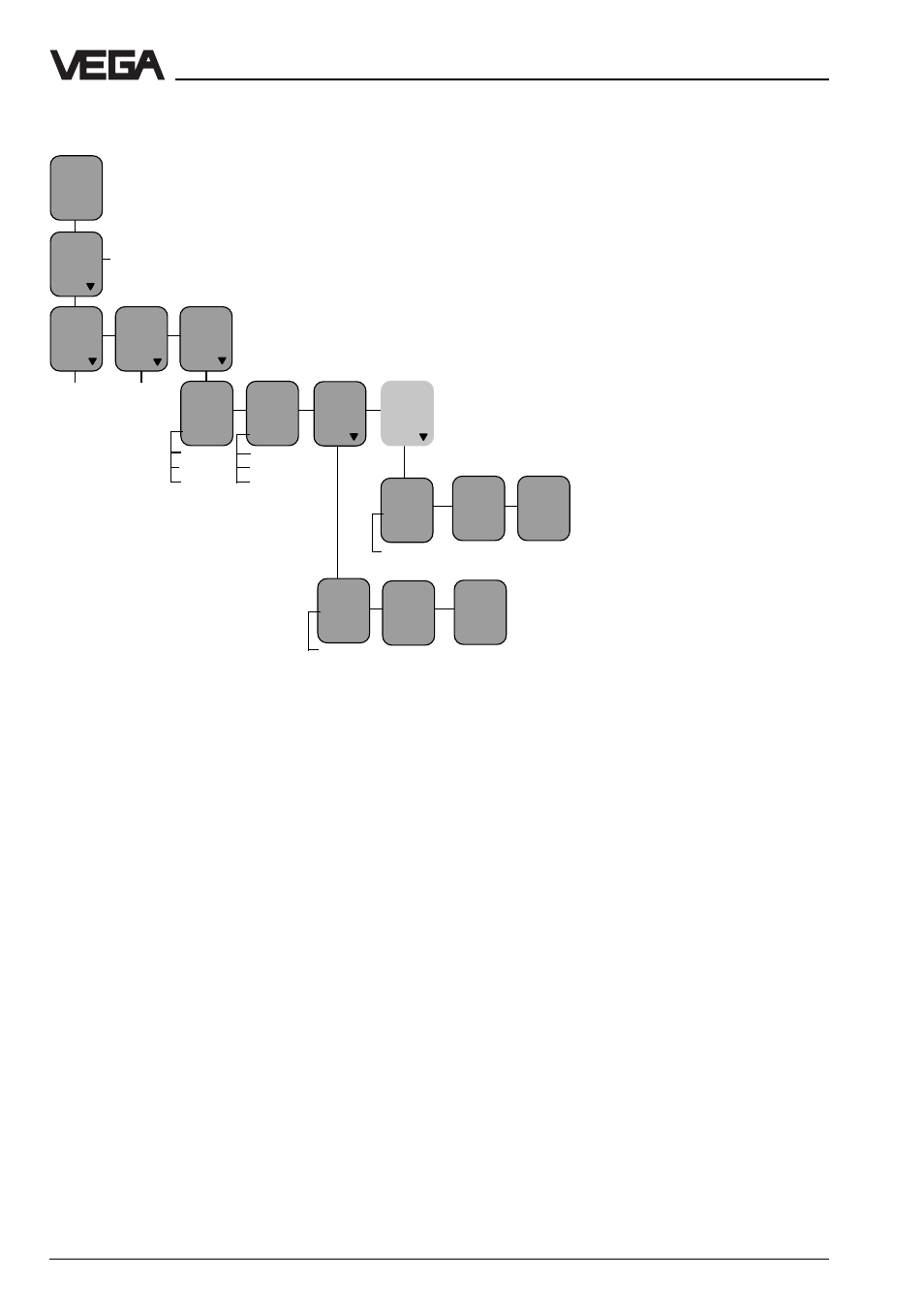

Settings in the "reduced menu"
Meas.
value
indication
TAG-
No. 1
%
xx,x
Param.
TAG-
No. 1
Ad-
just-
ment Signal
condi-
tioning Out-
puts
Current
out-
put1
4/20mA
Volt
out-
put1
0/10V
Relay
out-
put 1
Mode
Over-
fill
protec
Low
%
0,0
Relay
out-
put 2
High
%
100,0
Mode
Over-
fill
protec
Low
%
0,0
High
%
100,0
0/20mA
20/4mA
20/0mA 10/2V
10/0V
2/10V
Dry run
protection
Dry run
protection
The graphics on the following page show the
behaviour of the relay outputs and LEDs
depending on the level.
