Although the information contained in this document is believed to be accurate and correct, RLE Technologies assumes no responsibility, and disclaims
all liability, for any damages resulting from the use of this information or any error or omission in this document. RLE Technologies does not warrant,
guarantee, or make any representations as to the performance, fitness for use, safety, or reliability of any existing or future wiring, equipment, additions
or modifications to equipment, or any other component of the original or modified system.

L D 1 0 0 0

F O R T C O L L I N S C O

9 7 0 4 8 4 - 6 5 1 0

9 7 0 4 8 4 - 6 6 5 0 F A X

W W W . R L E T E C H . C O M

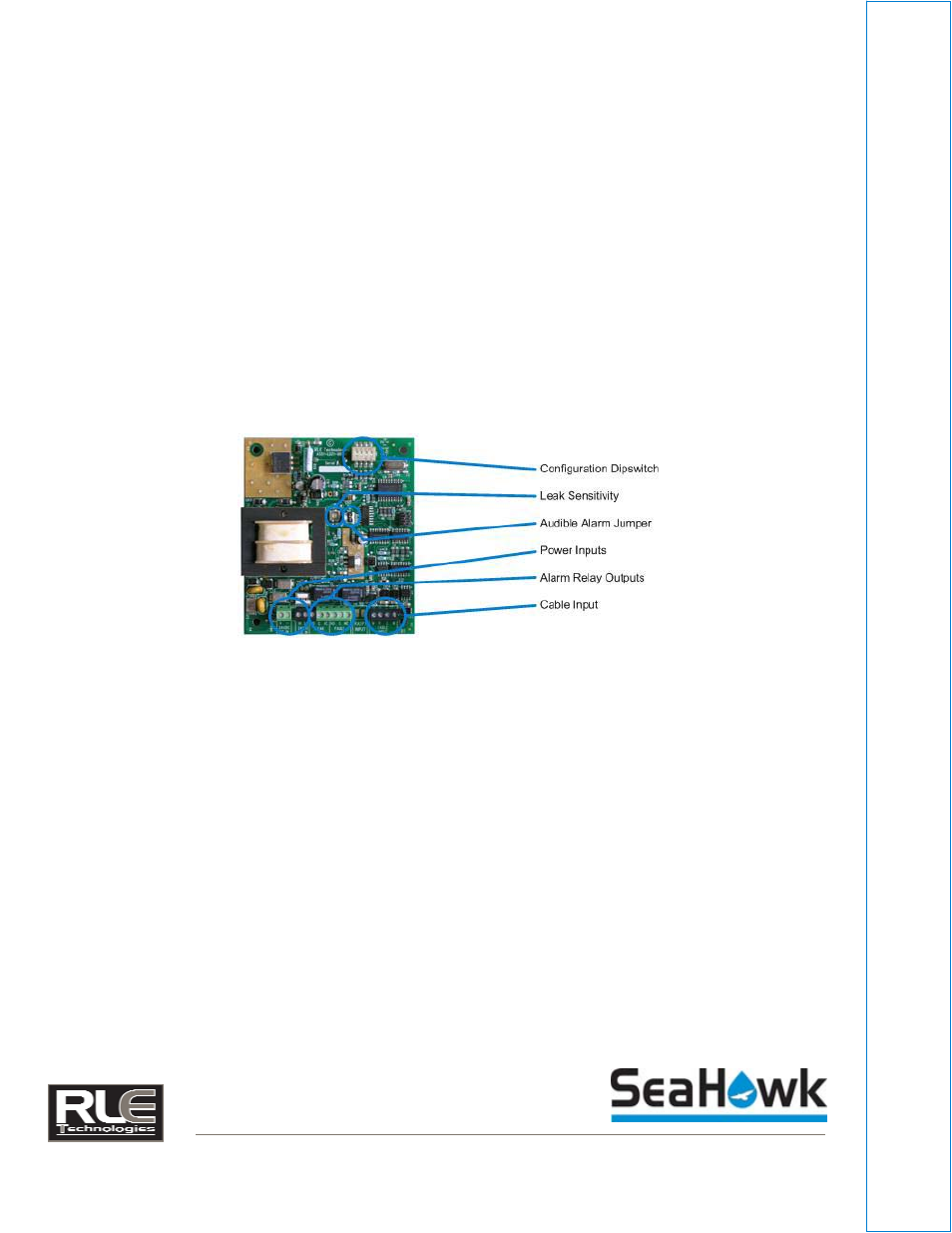

SW1-2: Configures the relays as latching or non-latching. If the relays are latching, then the relay will remain in

alarm state (depending on SW1-1, supervisory setting) upon alarm until the Quiet/Reset/Test switch is pressed. If

the relays are non-latching, then the relay will remain in an alarm state upon alarm until the Quiet/Reset/Test switch

is pressed or the condition that caused the alarm returns to normal.

Off – Non-latching (Factory Default)

On – Latching

SW1-3: Configures the two output relays as a summary alarm or as two separate leak and fault alarms.

Off – Relay One is a Leak Alarm and Relay Two is a Fault Alarm (Factory Default)

On – Relay One is a Summary Alarm and Relay Two is unused

SW1-4: Configures the Alarm Delay setting. This is the response time it takes for the unit to report an alarm

condition (Leak or Fault) once detected. The alarm must be present during this entire period.

Off – 10 Seconds (Factory Default)

On – 2 Minutes

5. Audible

Alarm

Setting

The audible alarm may be disabled for the LD1000. Remove the jumper cap from JMP2 to disable. This jumper

cap is required if audible alarms are desired.

Specifications

Power

24VAC/VDC (±10%) @ 300mA max.; requires power supply: WA-DC-24-ST (not included)

Inputs

Water Leak Detection Cable

Cable

Input

Maximum

Length

Detection Response Time

Compatible with SeaHawk SC Cable (not included)
Requires SeaHawk LC-KIT: 15ft (4.57m) leader cable and EOL (LC-KIT not included)
1,000ft (305m)
Configurable for 10sec or 2min, ±10%

Outputs
Relay

1 Form C Leak Relay, 1 Form C Cable Fault Relay, configurable to 2 Summary Alarm Relays; 1A @ 24VDC, 0.5A resistive @
120VAC; configurable for supervised or non-supervised, latched or non-latched

Alarm Notification
Audible

Alarm

85DBA @ 2ft (0.6m); Selectable

Front Panel Interface
LED

Indicators

Push

Buttons

Power: 1 green (on/off); Cable Fault: 1 amber; Leak Detected: 1 red
Quiet: 1; Reset: 1; Test: 1

Operating Environment
Temperature
Humidity
Altitude

32° to 122°F (0° to 50°C)
5% to 95% RH, non-condensing
15,000ft (4,572m) max.

Storage Environment

-4° to 158°F (-20° to 70°C)

Dimensions

4.125"W x 5.5"H x 2.25"D (105mmW x 140mmH x 58mmD)

Weight

27.0 oz. (765.4g)

Mounting

Vertical wall mount

Certifications

CE; UL508A / CUL508A; FCC Part 15; RoHS compliant
