800.354.8556 +1 503.598.4564 www.veris.com

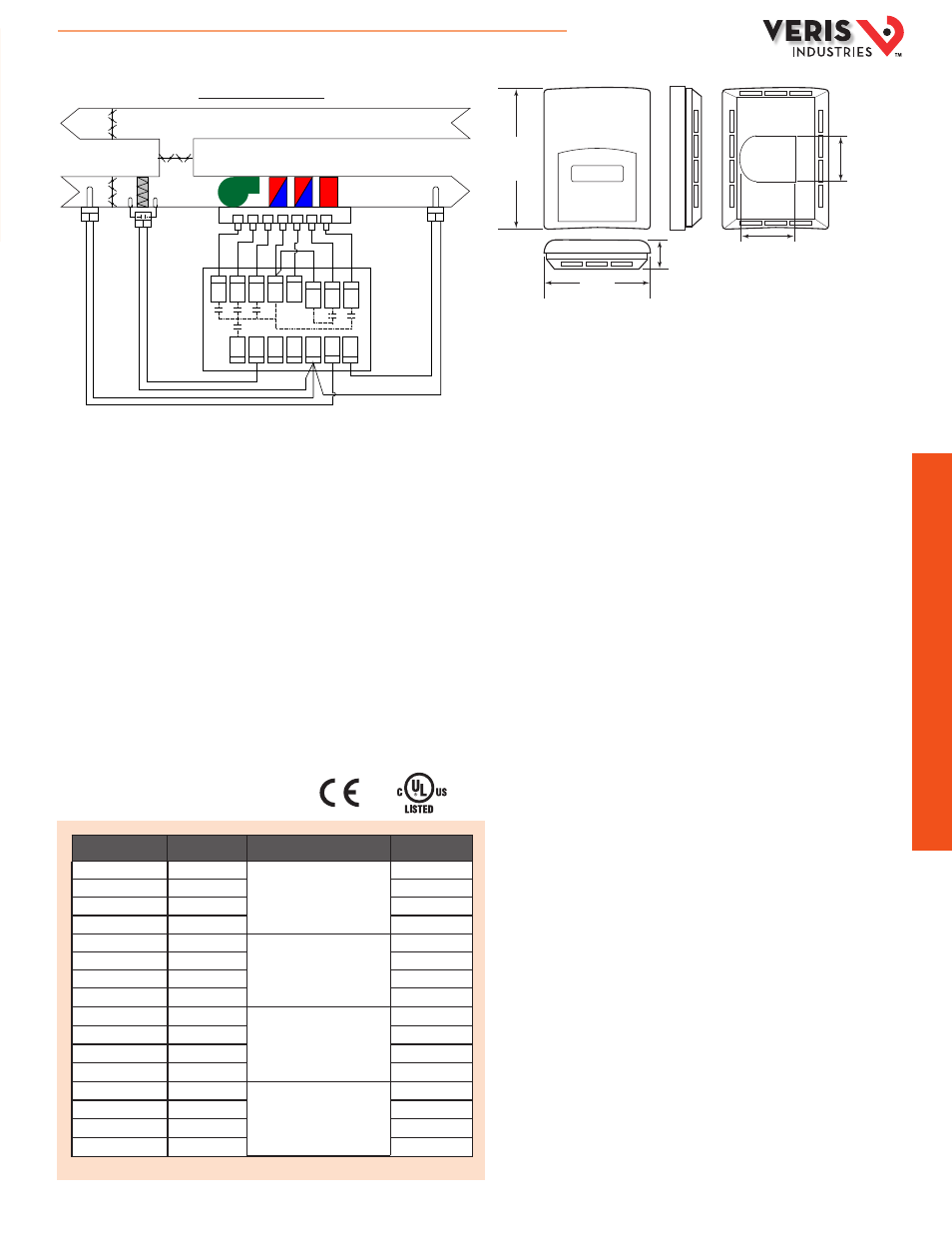

DIMENSIONAL DRAWING
4.9”
(125mm)
3.4”
(87mm)
1.1”
(28mm)
1.25”
(32mm)
1.5”
(37mm)
APPLICATION/WIRING EXAMPLE
Typical 3H/2C Heat Pump
MANUF. PART # ORDERING # DESCRIPTION COMM.
VT7600H5000 U010-0065
3H/2C heat pump thermostat,
non-programmable;
PIR Ready (PIR cover not
included)
Stand alone
VT7600H5000B U010-0066 BACnet (MS/TP)
VT7600H5000E U010-0067 Echelon
VT7600H5000W U010-0068 Wireless (Zigbee)
VT7652H5000 U010-0069
3H/2C heat pump thermostat,
programmable;
PIR Ready (PIR cover not
included)
Stand alone
VT7652H5000B U010-0070 BACnet (MS/TP)
VT7652H5000E U010-0071 Echelon
VT7652H5000W U010-0072 Wireless (Zigbee)
VT7600H5500 U010-0073
3H/2C heat pump thermostat,
non-programmable;
PIR factory equipped
Stand alone
VT7600H5500B U010-0074 BACnet (MS/TP)
VT7600H5500E U010-0075 Echelon
VT7600H5500W U010-0076 Wireless (Zigbee)
VT7652H5500 U010-0077
3H/2C heat pump thermostat,
programmable;
PIR factory equipped
Stand alone
VT7652H5500B U010-0078 BACnet (MS/TP)
VT7652H5500E U010-0079 Echelon
VT7652H5500W U010-0080 Wireless (Zigbee)
* Use for single speed fans, supply air temperature sensors, outdoor air temperature sensors,
and differential pressure switches.
ORDERING INFORMATION
1
Y2
2
Y1
3
G
4
RC
5
C 6
RH
7
W
1
8
O/B
10
AUX
11
DI1
12
DI2
13 14
OS
15 16
FAN
Y2 15 14 Y1 G RC C W O/B
1 2 3 4 5 7 8
14 16
OA temp.
sensor
Differential
pressure
switch
14 11
Filter
S COM
RS MS
Supply
Air Temp.
Sensor
Comp.
1
Comp.
2
Aux.
Heat
HQ0001869.B 01131
