800.354.8556 +1 503.598.4564 www.veris.com
Modbus Basic Power Transducers* Modbus Enhanced Data Stream Power Transducers*
*H8036 models work with H8920-1 LON nodes
MODEL MAX. AMPS CT SIZE
H8035-0100-2 100 SMALL
H8035-0300-2 300 SMALL
H8035-0400-3 400 MEDIUM
H8035-0800-3 800 MEDIUM
H8035-0800-4 800 LARGE
H8035-1600-4 1600 LARGE
H8035-2400-4 2400 LARGE
MODEL MAX. AMPS CT SIZE
H8036-0100-2 100 SMALL
H8036-0300-2 300 SMALL
H8036-0400-3 400 MEDIUM
H8036-0800-3 800 MEDIUM
H8036-0800-4 800 LARGE
H8036-1600-4 1600 LARGE
H8036-2400-4 2400 LARGE
208 or 480VAC 3Ø, Installation

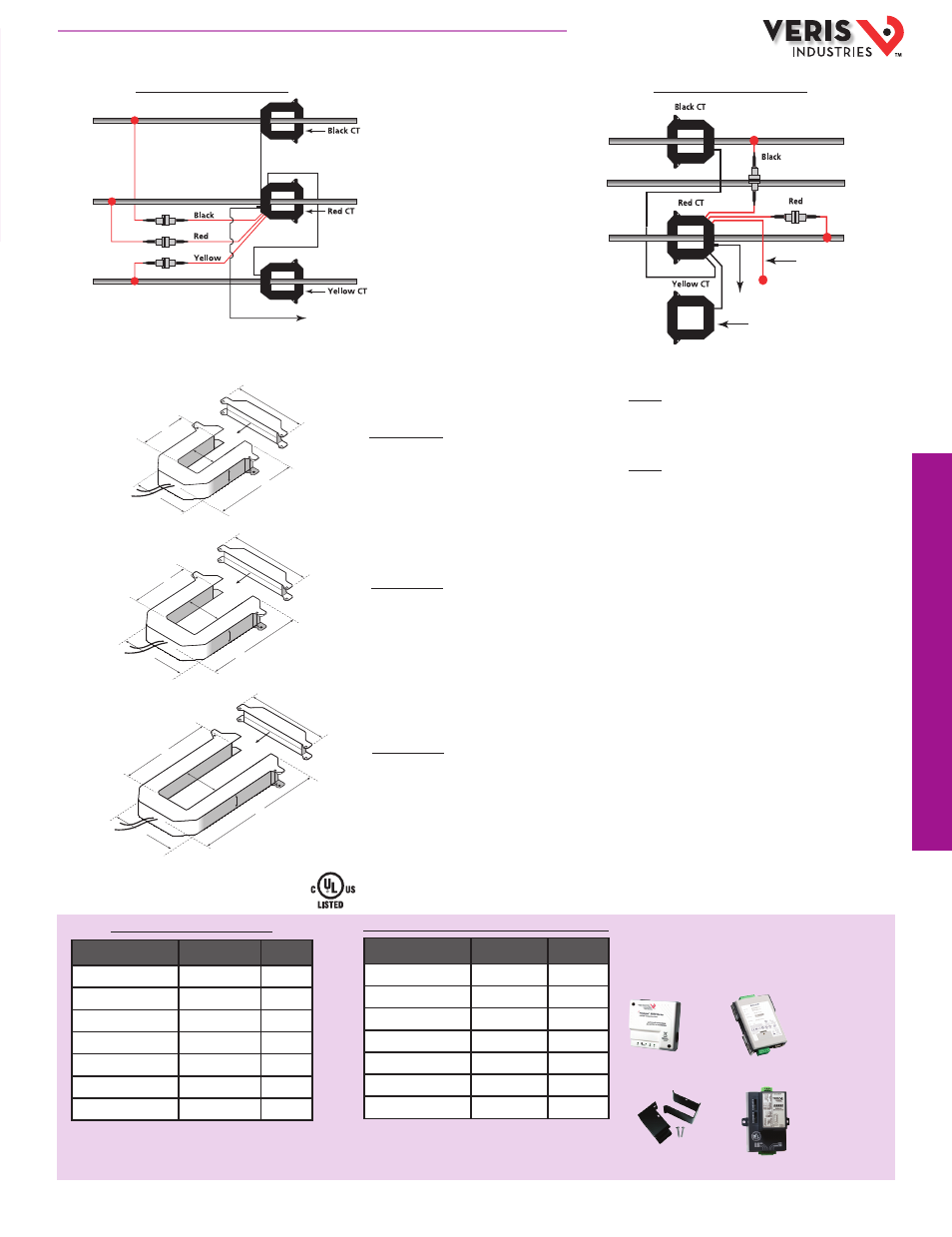

APPLICATION/WIRING EXAMPLES
240VAC 1Ø, 3-Wire Installation
To additional
Modbus Devices
(RS 485)
ØB
ØA
ØC
120
Yellow Voltage Lead capped
N
120
Yellow Label CT
ØB
ØA
To additional Modbus Devices
(RS 485)
DIMENSIONAL DRAWINGS
*H8035 models work with H8920-5 LON nodes
ACCESSORIES
LON nodes (H8920)
CT Mounting brackets (AH06)
Modbus-to-BACnet Converter (E8950)
Modbus TCP Converter (U013-0013)
ORDERING INFORMATION
A
B
E
F
C D
B
E
F
C
D
A
A
B
E
C
F
D
SMALL
100/300 Amp
MEDIUM
400/800 Amp
LARGE
800/1600/2400 Amp
A = 3.8" (96 mm)
B = 1.2" (30 mm)
C = 1.3" (31 mm)
D = 1.2" (30 mm)
E = 4.0" (100 mm)
F = 4.8" (121 mm)
A = 4.9" (125 mm)
B = 2.9" (73 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 5.2" (132 mm)
F = 6.0" (151 mm)
A = 4.9" (125 mm)
B = 5.5" (139 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 7.9" (201 mm)
F = 6.0" (151 mm)
DATA OUTPUTS
H8035
kWh
kW
H8036
kWh, Consumption
kW, Real Power
kVAR, Reactive Power
kVA, Apparent Power
Power Factor
Average Real Power
Minimum Real Power
Maximum Real Power
Voltage, L-L
Voltage, L-N*
Amps, Average Current
* Based on derived neutral voltage.
H8920 Series
AH06
U013-0012
E8950
HQ0001711.C 01131
