EP3 INSTALLATION GUIDE
Auto
Manual
GND
INPUT
24V CH2
CH1/PWM
OPERATION
MODE
TRISTATE
ALARM
P-LOSS MAN
INPUT VOLTAGE
0-10V 0-5V
TRI-PULL-UP
ON OFF
OUTPUT
4-20mA 0-10V
ALARM
Tristate Timing
Network
FS Point
Zero
RUN 4-20mA
Voltage
Tristate
PWM
Network
Control
SETTING INPUT
+
-
Subtrac
t
Pressure Add Pressur
e
4-20mA
Output
0-10V
Output

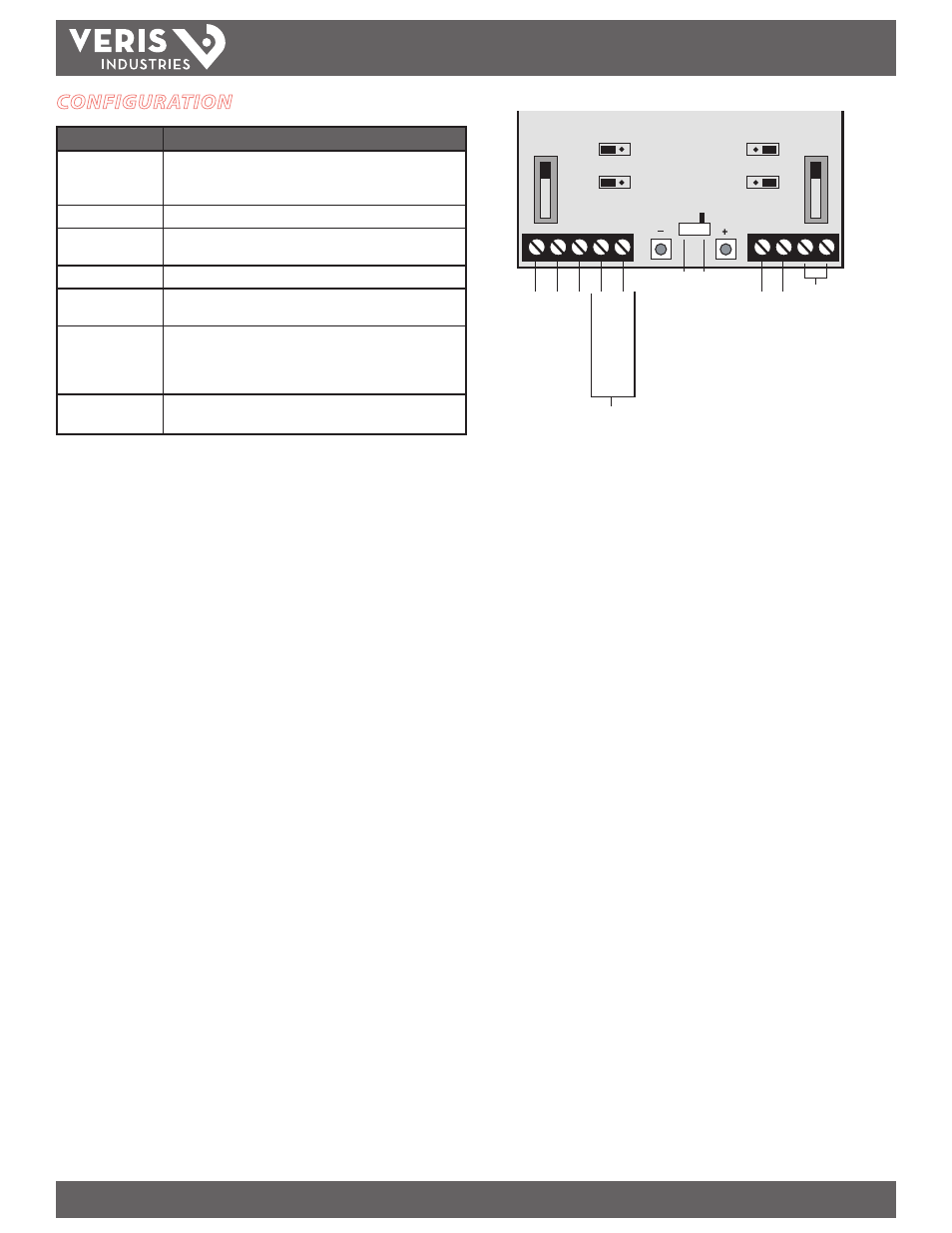

CONFIGURATION
Switch/Jumper Description
Input User selectable slide switch: current (4-20 mA), voltage (0-5/0-10
V), Tristate, or PWM (min 0.01-0.60 sec, max 1.0-75.0 sec).
Note: the Network Control option is disabled.
Input Voltage* If voltage input is selected, use this jumper to choose 0-5 or 0-10 V.
Tri Pull-up If tristate input is selected, use this jumper to turn the pull-up on
or off.
Alarm Phase loss or manual
Output Use this jumper to select 4-20 mA or 0-10 V output (feedback status
for branch pressure.
Setting User selectable slide switch: Tristate timing (min 1 sec; max 600 sec,
default 60 sec), FS Point (scale point user programmable 0-25 psi),
Zero (user programmable 0-25 psig), Run.
Note: the Network option is disabled.
Mode Auto for normal operation; Manual to adjust pressure.
Set this switch last.
* EP3 accepts DC input only. To use with AC input, include a Veris AA49 Triac Adapter in series
between the input voltage and the EP3.
