800.354.8556 +1 503.598.4564 www.veris.com
HOT
HOT
N
3-Phase 4-Wire Installation

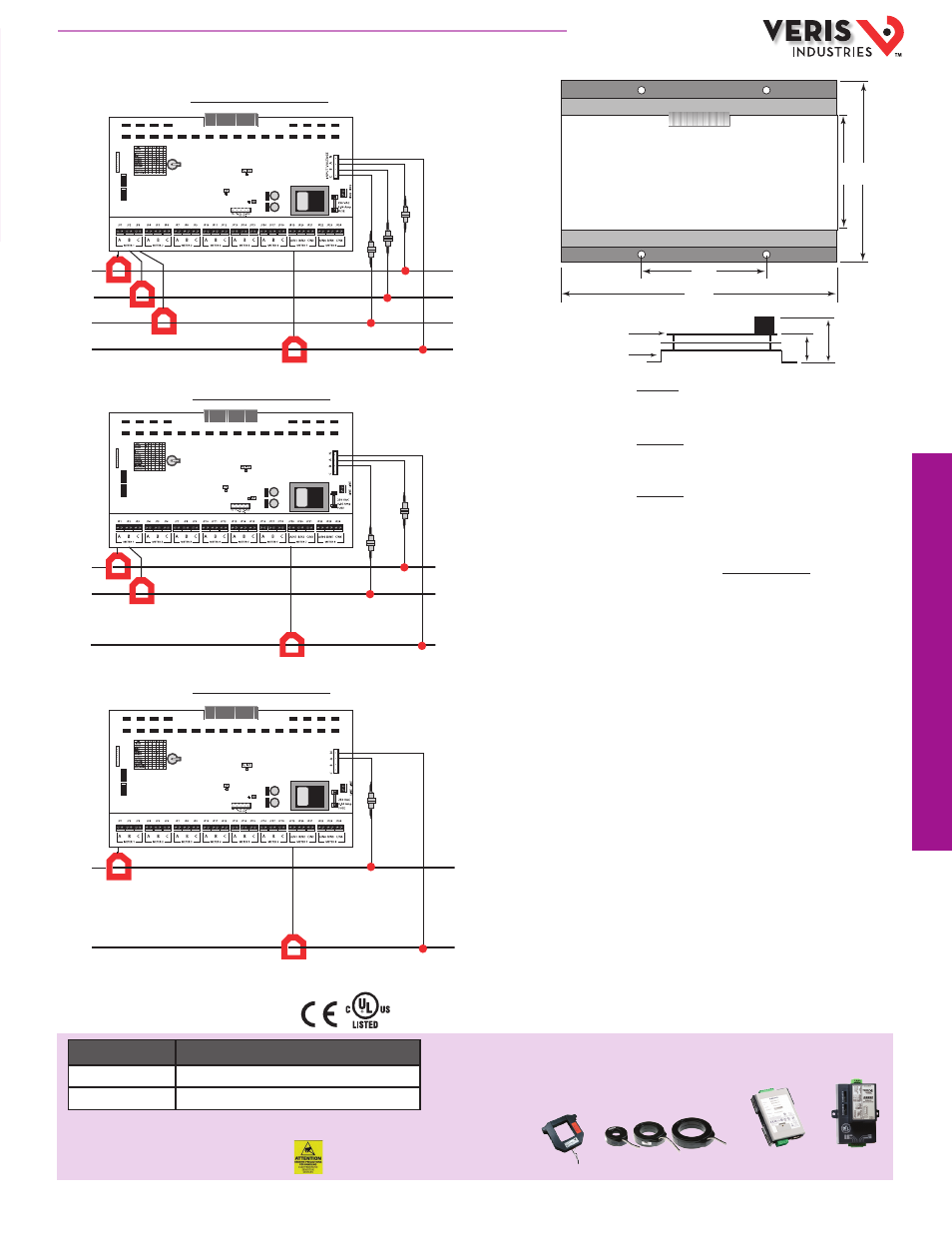

APPLICATION/WIRING EXAMPLES
1-Phase 3-Wire Installation
A
B
C
N
*For 240VAC supply voltage version, order H8238E
MODEL DESCRIPTION
H8238 Multi-Circuit Monitor, 90-130VAC supply voltage
H8238E Multi-Circuit Monitor, 240VAC supply voltage
120V
HOT
N
1-Phase 2-Wire Installation
DIMENSIONAL DRAWING
kWh Energy Consumption
kW Real Power
kVAR Reactive Power
kVA Apparent Power
Power Factor Total
Voltage, L-L, avg. of 3 phases
Voltage, L-N, avg. of 3 phases
Current, average of 3 phases
kW Real Power, phase A
kW Real Power, phase B
kW Real Power, phase C
Power Factor, phase A
Power Factor, phase B
Power Factor, phase C
Line to Line Voltage, phase A-B
Line to Line Voltage, phase B-C
Line to Line Voltage, phase A-C
Line to Neutral Voltage, phase A-N
Line to Neutral Voltage, phase B-N
Line to Neutral Voltage, phase C-N
Current, phase A
Current, phase B
Current, phase C
kW Average
kW Minimum
Frequency (measured from phase A)
ACCESSORIES
AL, BL, CL 5AAC Solid-Core Current Transformers
H681x-5A Split-Core Current Transformers
Modbus-to-BACnet Converter (E8950)
Modbus TCP Gateway (U013-0012)
Modbus® Alarms:
Over Voltage
Under Voltage
Over Current
Under Current
Over kVA
Under kVA
Phase Loss A
Phase Loss B
Phase Loss C
DATA OUTPUTS
H8238 Series transducers are sold as open devices.
Observe handling precautions for static sensitive
devices to avoid damage to the circuitry which
would not be covered under the factory warranty.
ORDERING INFORMATION
A B
D
C
Top View
Side View
WIDTH:
A
5.3”/135mm (board)
B 8.9”/226mm (mounting bracket base)
LENGTH:
C 6.0”/153mm
D 12.8”/325mm
HEIGHT:
E
2.9”/74mm
F 4.0”/101mm
main circuit board
mounting bracket
3
F
E
WIDTH:
A = 5.3” (135mm) board
B = 8.9” (226mm) mounting bracket base
LENGTH:
C = 6.0” (153mm)
D =12.8” (325mm)
HEIGHT:
E = 2.9” (74mm)
F = 4.0” (101mm)
H681x-5A
AL BL CL E8950 U013-0012
