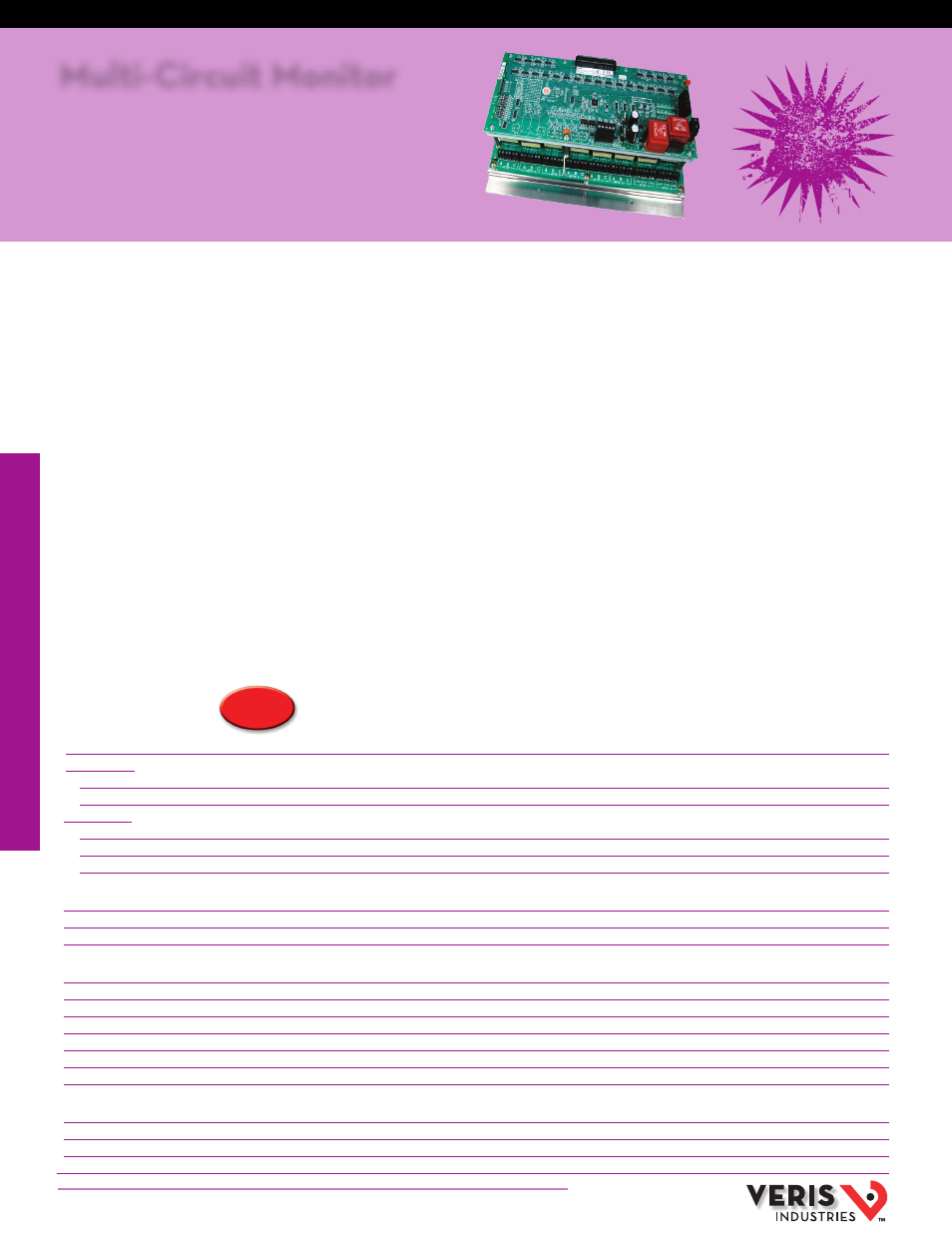

Veris Industries H8238 SERIES Datasheet User Manual
Multi-circuit monitor, Monitor eight 3-phase circuits with one device, H8238 series

p
o
wer/ener
g
y monit
oring
VERIS INDUSTRIES
800.354.8556
+1 503.598.4564
www.veris.com
FEATURES
●
Revenue Grade measurements
●
Save labor and installation costs by monitoring up to eight 3Ø, (or six 3Ø plus
neutral current) loads from a single service with common voltage connections
●
Eliminates the need to install multiple transducers – fewer components to
install...saves time and space
●
Easily connect up to 24 industry standard 5A CTs (solid-core and/or split-core)
●
Modbus communication for efficient data collection
●
Improve monitoring system efficiencies by accessing 26 data points per circuit,
plus alarms, with one RS-485 drop
●
Daisy chain up to 30 units on a single drop...easy wiring
●
Field-selectable address, baud rate, parity and wiring connections...
simple configuration
●
Use with E8950 gateway for BACnet connectivity...expanded
system compatibility
●
Use with U013-0012 serial to ethernet protocol converter...easy
system integration
DESCRIPTION
The H8238 Multi-Circuit Monitor power monitoring system provides a convenient
solution for monitoring multiple electrical services that share a common voltage
source. It also reports diagnostic information such as power factor, volts, amps, and
kVAR, over an RS-485 network using the industry standard Modbus communication
protocol. To protect valuable equipment, it has built-in alarm registers for over- and
under-voltage, current, and kVA.
The monitoring capabilities and open systems compatibility of the H8238 make
it the ideal power monitoring solution for OEM, tenant submetering applications,
and load management of power distribution units commonly used in internet data
centers.
APPLICATIONS
●
Tenant submetering
●
Real-time power monitoring
●
Activity-based costing
●
Managing loads
Monitor Eight 3-Phase
Circuits with One Device
Multi-Circuit Monitor
SPECIFICATIONS
Inputs:
Control Power
+10/-25 % (90-132VAC); (180-264VAC for H8238E), 50/60 Hz
Voltage Input
Maximum Voltage
480VAC+10% = 528VAC
Frequency
60 Hz
Current Input
Number of Channels
24 (8 meters x 3 phases/meter), 6 meters if neutral monitored
CT Input Type
5 Amp (customer supplied)
CT Range
Each 3-phase circuit is independently configurable from 1 A to 9999A (using 5A output CTs)
Accuracy:
Accuracy
±1% when amperage is at 10% to 100% of range (exclusive of user-supplied CTs)
Sample Rate
1280 Hz
Variable Update Rate
200 msec for voltages, 1.6 secs for all other
Outputs:
Type
RS-485 Modbus RTU
Connection
DIP-switch selectable 2-wire or 4-wire
Address
DIP-switch selectable base address (1 to 233 in steps of 8)
Baud Rate
DIP-switch selectable 2400, 4800, 9600, or 19200
Parity
DIP-switch selectable NONE/ODD/EVEN
Communication Format
8 data-bits, 1 start-bit, 1 stop-bit
Termination
5-position pluggable connector
Environmental:
Operating Temperature Range
0° to 60°C (32° to 140°F)
Storage Temperature Range
-40° to 70°C (-40° to 158°F)
Humidity Range
0-95% noncondensing
Agency Approvals
UL508, EN61010
Year
Warranty
5
H8238
H8238 SERIES
BACnet
connec
tivity
via new
E8950
Gateway
HQ0001815.B 01131
