Veris Industries PW2 SERIES Install - Manual

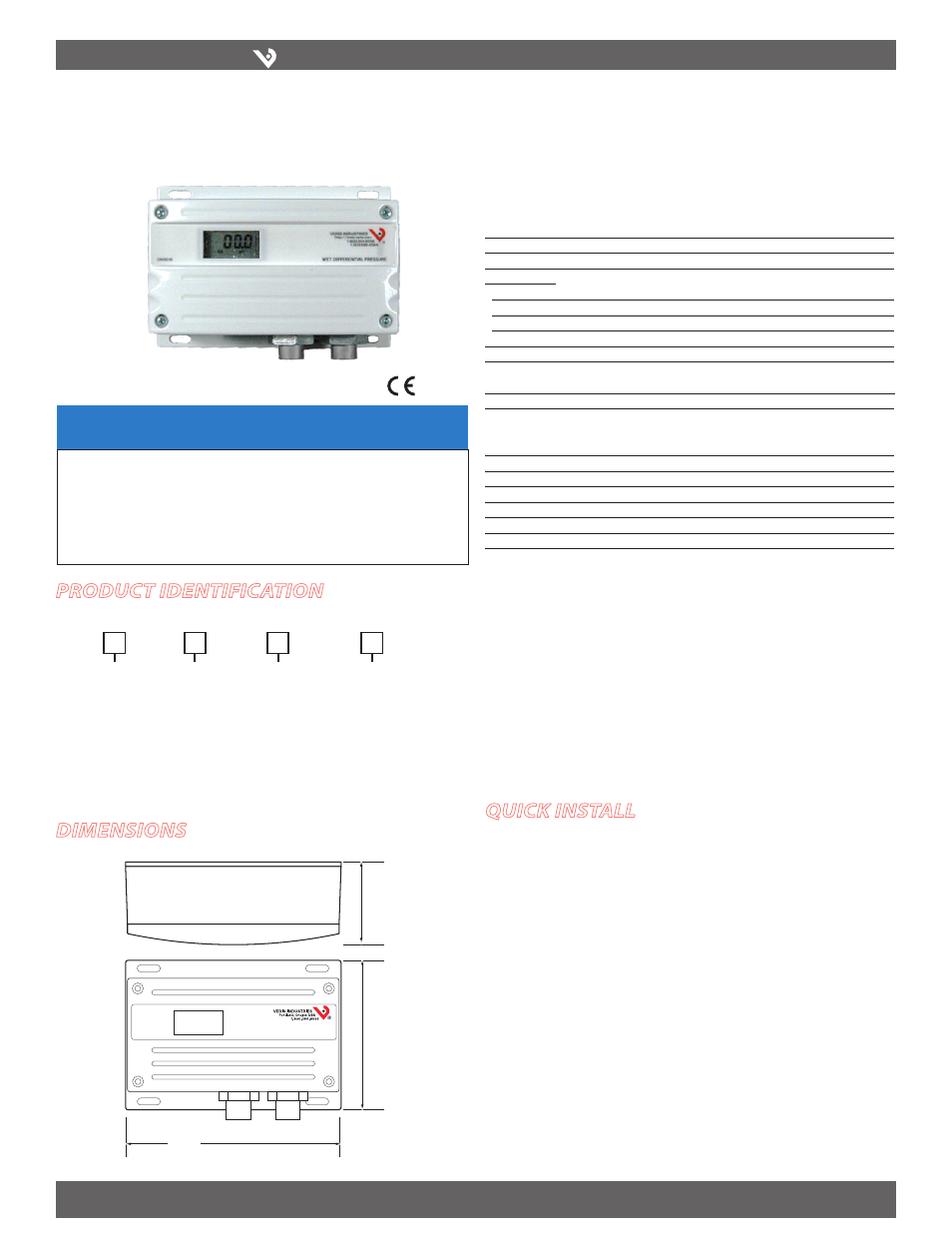

VERIS INDUSTRIES
™
environmental SenSorS inStallation GUiDe
Z204201-0G PAGE 1 ©2010 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected] 08102
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Wet Media Differential Pressure Transducer
quick install
Installer's Specifications
PW2 SerieS PW2 SerieS
Dimensions
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
ProDuct iDentification
Mount sensor on a duct or pipe, across the pump, filter, or other pressure 1.
differential.
Wire as shown (see page 2). 2.
Configure the jumpers (see page 2). 3.
Media Compatibility 17-4 PH stainless steel
Input Power 12 to 24VDC, 29mA max.; loop powered
Output 2-wire transmitter; 4-20mA (clipped and capped)
Pressure Ranges:
0-50 psi (0-3.45 bar) 5/10/25/50 psid (0-0.34/0.69/1.72/3.45 bar)
0-100 psi (0-6.89 bar) 10/20/50/100 psid (0-0.69/1.38/3.45/6.89 bar)
0-250 (0-17.24 bar) 25/50/125/250 psid (0-1.72/3.45/8.62/17.24 bar)
Proof Pressure 2x max. F.S. range
Burst Pressure 5x max. F.S. range
Accuracy at 25°C* Ranges A, B, C: ±1% F.S.**
Range D: ±2% F.S.**
Surge Damping Electronic; 5-second averaging
Temperature Compensated Range 0° to 50°C (32° to 122°F);
TC Zero <1.5% of product F.S. per sensor;
TC Span <1.5% of product F.S. per sensor
Sensor Operating Range -20° to 85°C (-4° to 185°F)
Long Term Stability ±0.25% per year
Zero Adjust Pushbutton auto-zero
Operating Environment -10° to 55°C (14° to 131°F); 10-90% RH noncondensing
Fittings 1/8” NPT female, stainless steel 17-4 PH
Physical White powder-coated aluminum
To conform to EMC Standards, use shielded cabling. Technical information is available from the
factory on request or on our website (www.veris.com/ce)
* Accuracy combines linearity, hysteresis, and repeatability.
** F.S. is defined as full span of selected range in bidirectional mode.
2.2"
(57 mm)
4"
(102 mm)
5.8"
(147 mm)
LOW HIGH
WET DIFFERENTIAL PRESSURE
The PW2 Series sensor is designed to accept high differential pressure. Install the
sensor on a duct or pipe across a pump, filter, heat exchanger, compressor, or other
non-corrosive wet media. The dual sensor design eliminates the need for a bypass
valve, and the bi-directional capability reduces installation errors. A pushbutton
allows easy zero adjustment.
Local Display
L = LCD Display
X = No Display
NIST
N = NIST
X = None
US or EU
S = Standard
C = CE
Operational Range
03 = 0-50 psig
04 = 0-100 psig
05 = 0-250 psig
PW2 *
* IMPORTANT!
Select operational range according to maximum gauge pressure, NOT differential pressure.
Example: High gauge pressure=90 psig, Select 100 psig model (04).
available
