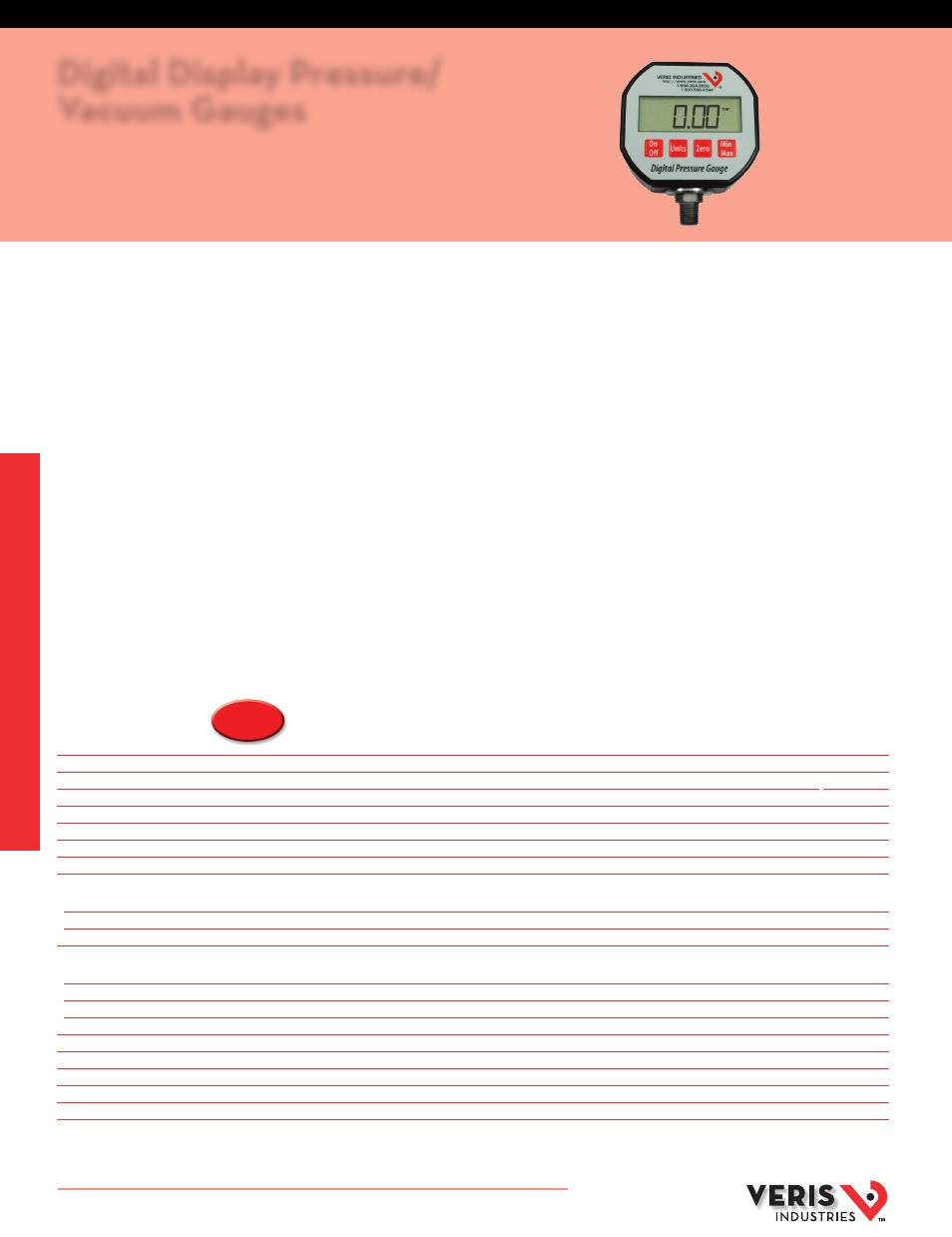

Digital display pressure/ vacuum gauges, Rugged, one piece construction, Pd series

PRESSURE
VERIS INDUSTRIES
800.354.8556
+1 503.598.4564
www.veris.com
Rugged, One Piece Construction
Digital Display Pressure/
Vacuum Gauges
DESCRIPTION
The versatile PD Digital Pressure Gauge can be used with any gas, liquid, or solid
that is compatible with 17-4 stainless steel. The one-piece construction employs
no silicone oil, welds, O-rings, or seals, making it the ideal universal pressure
measurement device. The large LCD display shows the current reading, the selected
scale, and the maximum and minimum pressure. All functions are easily controlled
from the four panel push buttons located below the display.
APPLICATIONS
●
Pump Inlet/Outlet and Compressors
●
Inert Gas Pressure Measurement
●
Hydraulic/Pneumatic Systems
●
Energy and Fluid Management
●
Refrigeration Equipment/Fluids/Test Stands
●
Industrial Process Control
●
Vacuum Chambers
●
Lab and Research
●
Irrigation
FEATURES
●
Multiple pressure range options available...fits any application needs
●
Rugged one-piece construction...provides long product life
●
Large LCD display...clear readings at a distance
●
Switch-selectable scales...for maximum resolution and versitility
●
Pushbutton zero...maximizes accuracy and prevents callbacks
●
NEMA 4/IP65 housing
SPECIFICATIONS
Input Power
Display Only Models: 9 volt alkaline battery; Analog Output Models: 7.5 to 32VDC; Voltage Output Models: 15 to 32VDC
Pressure
See ordering table; consult factory for additional ranges
Measurement Units*
psi, bar, kg/cm2, atm, in. of Hg, in. of H
2
O* (selectable)
Accuracy**
<± 0.5% BFLS
Stability (1 yr)
±0.25% of FS Typical
Over Range Protection
2x Rated Pressure
Burst Pressure
5x Rated Pressure or 5000 psi, whichever is less
Pressure Cycles
>100 Million
Temperature Ranges:
Media
-55° to 125°C (-65° to 257°F)
Operating (Ambient)
-10° to 70°C (15° to 158°F)
Storage
Display Only Models: -15° to 85°C (5° to 185°F); Analog and Voltage Output Models: -40° to 65°C (-40° to 150°F)
Thermal Limits:
Compensated Range
0° to 55°C (32° to 130°F)
TC Zero
<±1.5% of FS
TC Span
<±1.5% of FS
Connection
¼” NPT Male
Update Rate
Display Only Models: 2 times per second; Analog and Voltage Output Models: 32 times per second
Automatic Power Off
Display Only Models: 1 hour
Battery Life
Display Only Models: 4000 Operating Hours (typical)
Housing
NEMA 4, IP65, Polycarbonate
Output
Analog Output Models: 4-20mA loop powered or 0-5/0-10VDC
*inches H2O units available on ≤250 psi range devices only
**Accuracy includes non-linearity, hysteresis, and non-repeatability, measured at 25°C(77°F)
Note: Select a loop power supply and total loop resistance so that when the loop current is 20 mA, the gauge will have at least 7.5 VDC at its terminals
Year
Warranty
1
PD
PD SERIES
HQ0001826.B 01131
