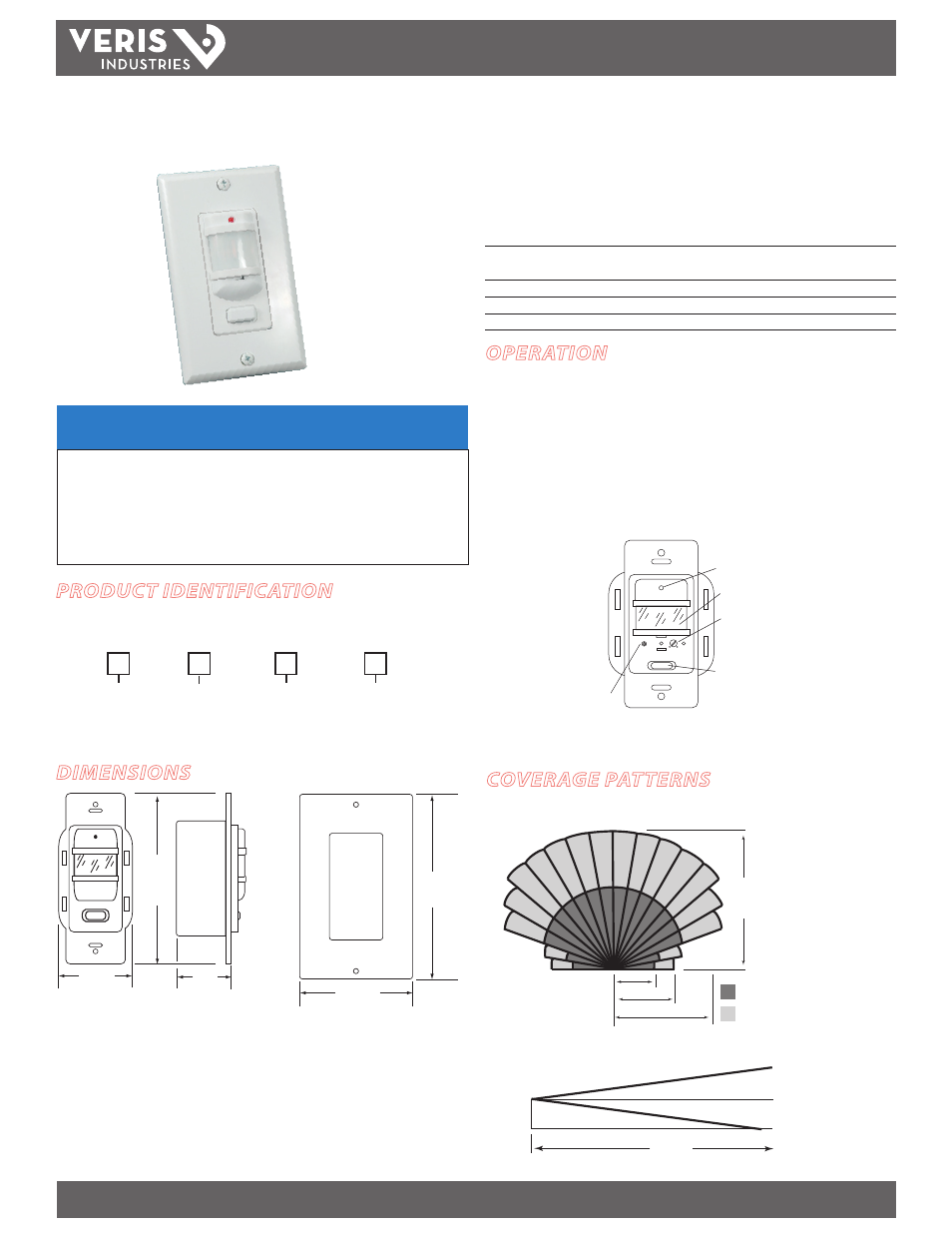

OCCUPANCY SENSORS
INSTALLATION GUIDE
Wall Switch Replacement Occupancy Sensors
Installer’s Specifications
Input
120 or 277 VAC ±10% 60 Hz
Output
120 VAC, 1000 W max. tungsten incandescent load; 1000 VA max. ballast load;
¼ hp max. motor load; 277 VAC; 1800 VA max. ballast load
Temperature
0° to 50°C (32° to 122°F)
Humidity
Max. 90% RH non-condensing
Agency Approvals
UL and cUL Listed; FCC part 15 for Home and Office Use (Class B)
MSBPA1x
MSBPA1x
DIMENSIONS
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
PRODUCT IDENTIFICATION
4.2”
(107 mm)
4.5”
(114 mm)
1.8”
(46 mm)
2.8”
(69 mm)
1.3”
(33 mm)
Sensing
Technology
= Passive Infrared
(PIR)
MSB
P
Color
Turn On
# of circuits
= Automatic
1
W = White
V = Ivory
A
OPERATION
MSBPA1x wall switch occupancy sensors use passive infrared technology (PIR)
to combine occupancy detection and voltage switching in a single package. The
MSBPA1x replaces existing standard light switches in home or office environments,
providing major motion detection up to 1000 sq. ft., and minor motion detection up
to 400 sq. ft., over a 180° range. The sensor is equipped with an Auto/Off button to
switch between automatic activation and off, while a bypass button provides “always
on” capability. The time delay before the switch deactivates is user adjustable from
15 seconds to 30 minutes.
COVERAGE PATTERNS
Top View
35 ft
(10.7m)
10 ft (3.1m)
15 ft (4.6m)
25 ft (7.6m)
35 ft
(10.7m)
Side View
4 ft
(1.2m)
Minor Motion
Major Motion
LED
PIR Motion Sensor Lens
Time-delay Setting:
15 sec. min. (fully CCW)
30 min. max. (fully CW)
AUTO/OFF Button
(In = Auto Mode
Out = OFF)
Bypass
button
(In = Always ON,
Out = Normal Operation)
