Installation Guide
Current Monitoring
H906
TM
Disconnect and lock out power to the enclosure containing the conductor to be
monitored.
1. Locate a mounting surface for the removable mounting
bracket that will allow the monitored conductor to pass
through the center window when it is installed and that will
keep the product at least ½” (13 mm) from any uninsulated
conductors. Determine cable routing for the controller
connection, allowing the wiring to reach the mounting
location.
2. Drill holes to mount the bracket to the chosen surface using
the included screws.
3. Wire the output connections from the sensor to the controller
(solid-state contact) and to the external power supply.
Observe polarity.
4. Snap the sensor over the conductor and clip the assembly to
the mounting bracket.
5. Secure the enclosure and reconnect power.
6. Calibrate the sensor with the load running normally.
Installation

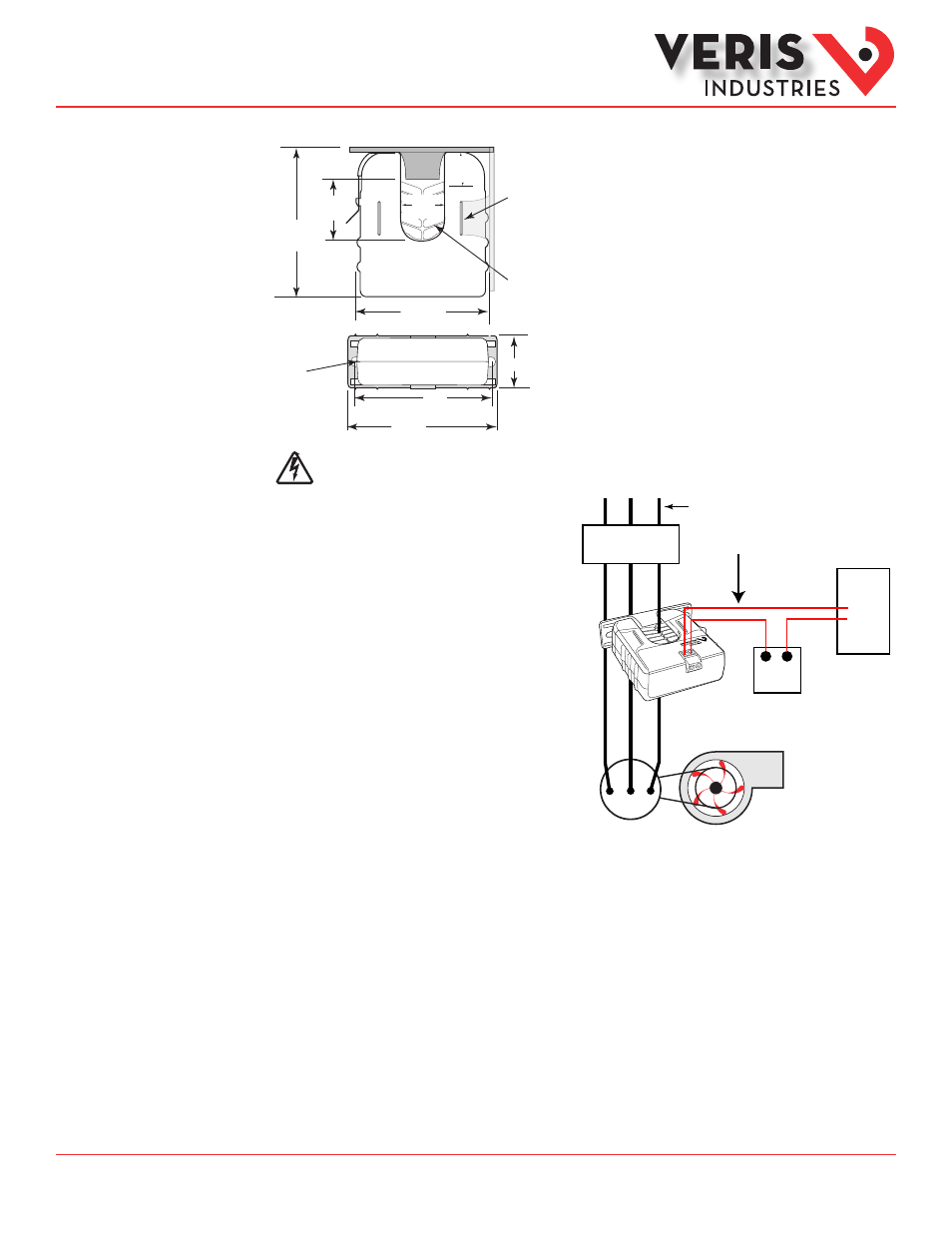

Dimensions
Removable Mounting Bracket
1.0”
(25 mm)
0.8”
(21 mm)
1.1”
(26 mm)
3.1”
(79 mm)
Self-gripping Iris
2.8”
(70 mm)
Ø 0.3”
(8 mm)
1.4”*
(36 mm)
2.5”
(64 mm)
3.0”
(76 mm)
Bracket can
be mounted
on three sides
for added
installation
flexibility.
Use DIN Rail Mounting clip
(Veris part number AH01) to
mount on standard DIN rail.
Fan or Pump
CONTROLLER
Insulated Conductor Only!
DI
Motor
-
-
Observe Polarity!
5-30VDC
POWER SOURCE
+ -
+
+
CONTACTOR
