E682x SERIES INSTALLATION GUIDE
oPeratIon
The E682x series of 0.333 volt solid-core current transducers provide secondary AC
voltage proportional to the primary (sensed) current. For use with power meters,
data loggers, chart recorders, and other instruments, E682x CTs provide a cost-
effective means to transform electrical service amperages to a voltage compatible
with monitoring equipment.
These products provide basic insulation to 600 VAC between the sensed conductor
and the output leads. For reinforced applications, the sensed conductor must
be provided with appropriate insulation. Reinforced insulation is provided for
applications to 300 VAC between the sensed conductor and the output leads under
UL/IEC/EN 61010-1 rules.

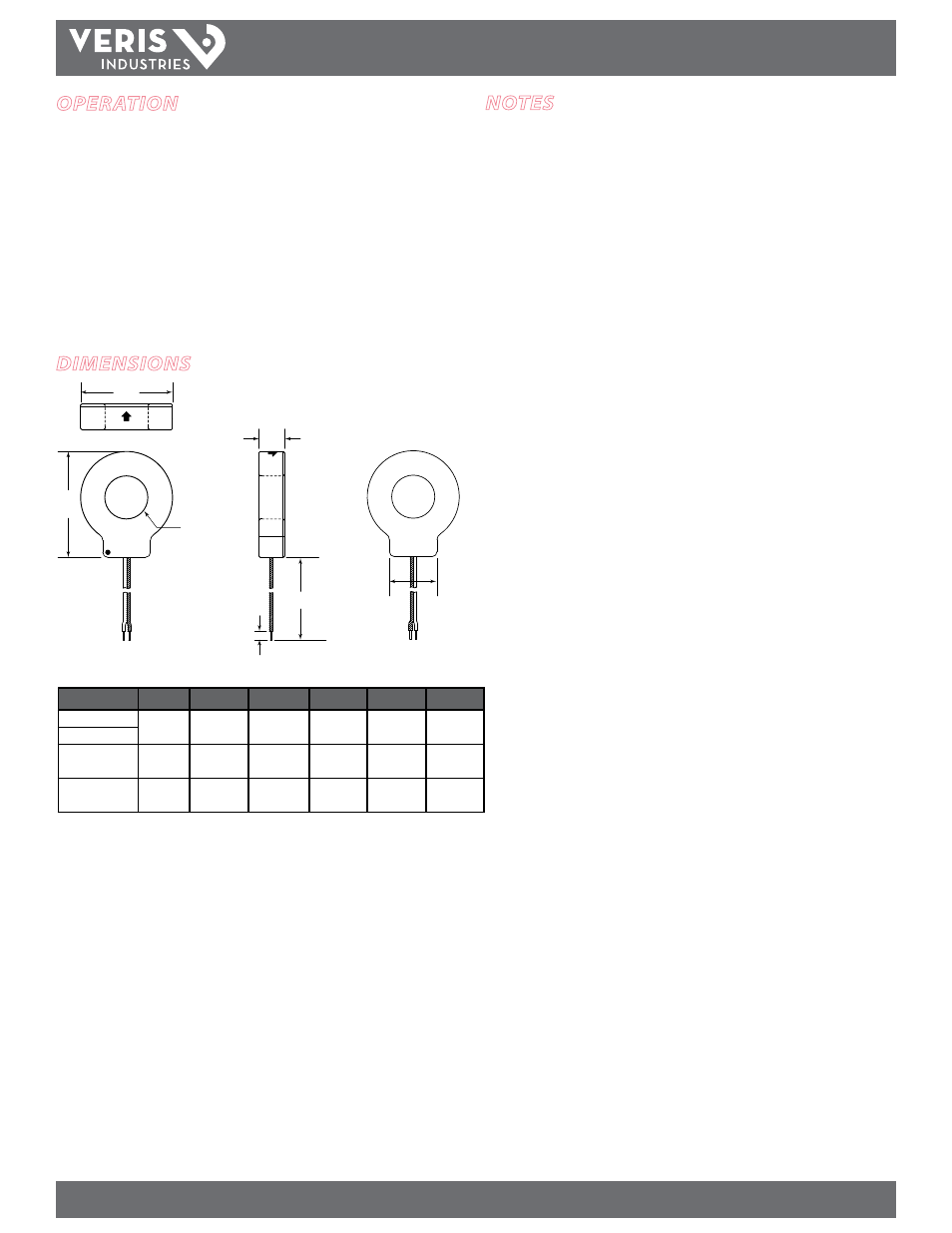

dImensIons
notes
Accuracy is specified with the primary conductor(s) centered in the CT window.
Do not apply current transducers to circuits having a phase-to-ground/neutral
voltage greater than the stated maximum voltage without applying adequate
additional insulation between the primary conductor and the current transducers.
Veris assumes no responsibility for equipment damage or personal injury caused by
transducers operated on circuits above their published ratings.
0.250” ± 0.050”
(6.35 mm ± 1.27 mm)
A
B
C
L
D
Ø = E
White Black
1 2
White
1 2
Black
#22 AWG Stranded
PVC insulation,
UL1015, 600V, 105˚C
+ +
Model L A B C D E
E682A051V3 6’
(1.8 m)
1.3"
(33 mm)
1.5"
(38 mm)
0.7"
(18 mm)
0.8"
(21 mm)
0.4"
(10 mm) E682A101V3
E682C201V3
6’
(1.8 m)
2.3"
(59 mm)
2.6"
(66 mm)
0.7"
(18 mm)
1.2"
(31 mm)
1.0"
(25 mm)
E682D401V3
6’
(1.8 m)
2.8"
(70 mm)
3.2"
(82 mm)
1.0"
(25 mm)
1.4"
(36 mm)
1.25"
(31 mm)
