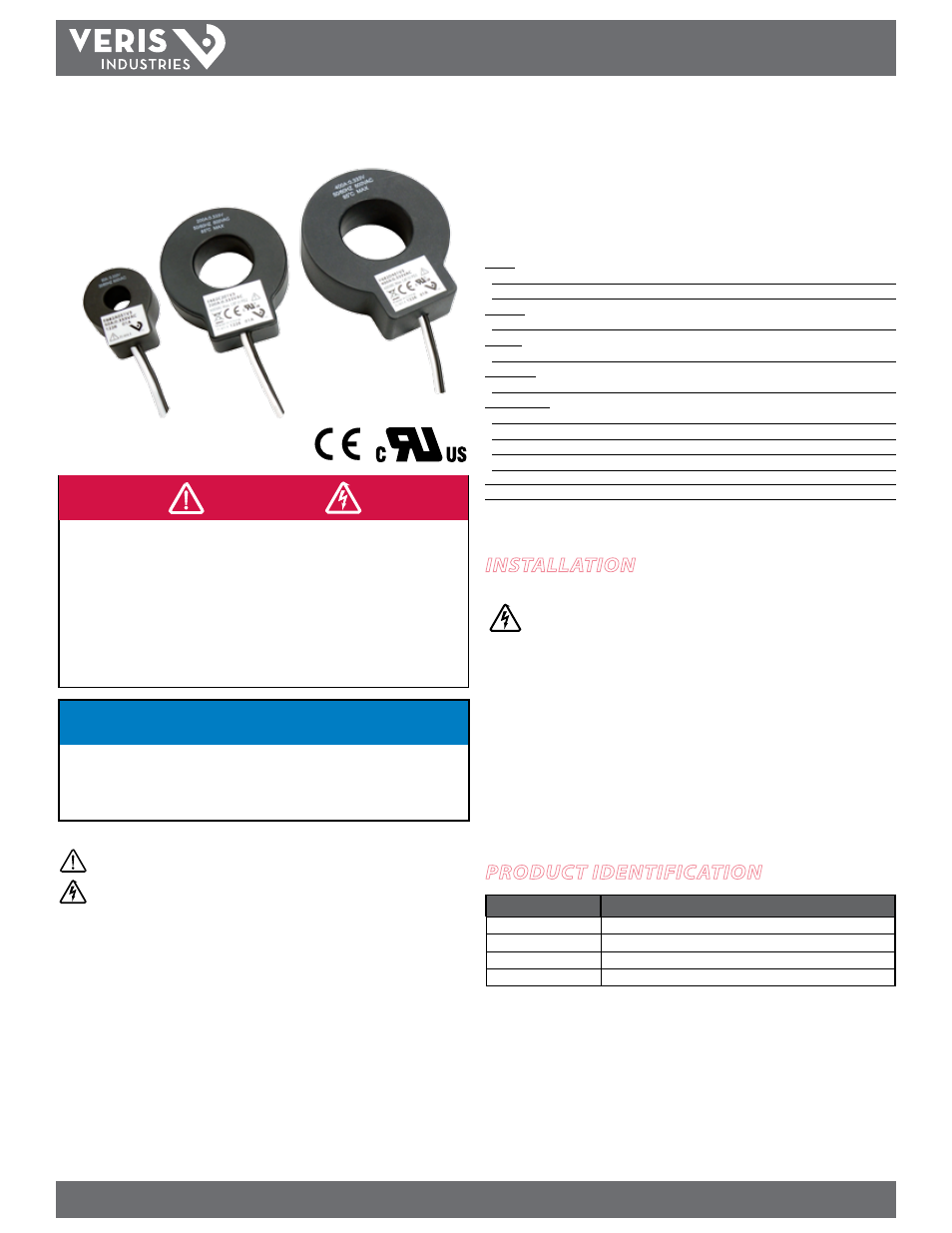

Veris Industries E682x SERIES Install User Manual

E682x series, Notice, Danger

Z206159-0A

PAGE 1

07123

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

POWER MONITORING

INSTALLATION GUIDE

Installer’s Specifications

Inputs:

Frequency Range

50/60 Hz

Leads

6’ (1.8 m)

Accuracy:

Accuracy

±0.5% from 5%-120% of rated current

Outputs:

Output at Rated Current

0.333 VAC

Mechanical:

Insulation

600 VAC

Environmental:

Operating Temperature Range

-40° to 85°C (-40° to 185°F)

Storage Temperature Range

-50° to 105°C (-58° to 221°F)

Humidity Range

0-95% noncondensing

Altitude of Operation

3 km max.

Installation Category

Cat III, pollution degree 2

Agency Approvals

UL61010-1, EN61010-1

0.333 VAC Solid-Core Current Transducers

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• Follow safe electrical work practices.

See NFPA 70E in the USA, or applicable local codes.

• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION

Failure to follow these instructions will result in death or serious injury.

DANGER

NOTICE

• This product is not intended for life or safety applications.

• Do not install this product in hazardous or classiﬁed locations.

• The installer is responsible for conformance to all applicable codes.

• Mount this product inside a suitable ﬁre and electrical enclosure.

Product IdentIfIcatIon

PART NUMBER

DESCRIPTION

E682A051V3

Solid-Core Volt CT, 50A:0.333V, 0.417 in ID, 6 ft leads

E682A101V3

Solid-Core Volt CT, 100A:0.333V, 0.417 in ID, 6 ft leads

E682C201V3

Solid-Core Volt CT, 200A:0.333V, 1.0 in ID, 6 ft leads

E682D401V3

Solid-Core Volt CT, 400A:0.333V, 1.25 in ID, 6 ft leads

Other lead lengths are available. Consult a sales rep for more information.

InstallatIon

Installation must be performed by a qualified electrician.

Disconnect and lock out power to the primary circuit

before installing these current transducers (CTs).

1. Connect the transducer output leads to the meter or device inputs. The white wire

is the X1 lead. Note the labeling on the product indicating the source side, or the
base of the arrow.

2. Run the conductor to be monitored through the CT center and complete

connections.

3. Check wire terminations for tightness.

4. Reconnect power to the panel.

E682x SERIES

Documentation must be consulted where this symbol is used on the product.

This symbol indicates an electrical shock hazard exists.

Always use this product in the manner specified or the protection provided by the
product may be impaired. This product must be installed in an appropriate Fire and
Electrical enclosure per local regulations.

E682x SERIES
