Although the information contained in this document is believed to be accurate and correct, RLE Technologies assumes no responsibility, and disclaims
all liability, for any damages resulting from the use of this information or any error or omission in this document. RLE Technologies does not warrant,
guarantee, or make any representations as to the performance, fitness for use, safety, or reliability of any existing or future wiring, equipment, additions
or modifications to equipment, or any other component of the original or modified system.

S D S D - Z S D - R O 1

F O R T C O L L I N S C O

9 7 0 4 8 4 - 6 5 1 0

9 7 0 4 8 4 - 6 6 5 0 F A X

W W W . R L E T E C H . C O M

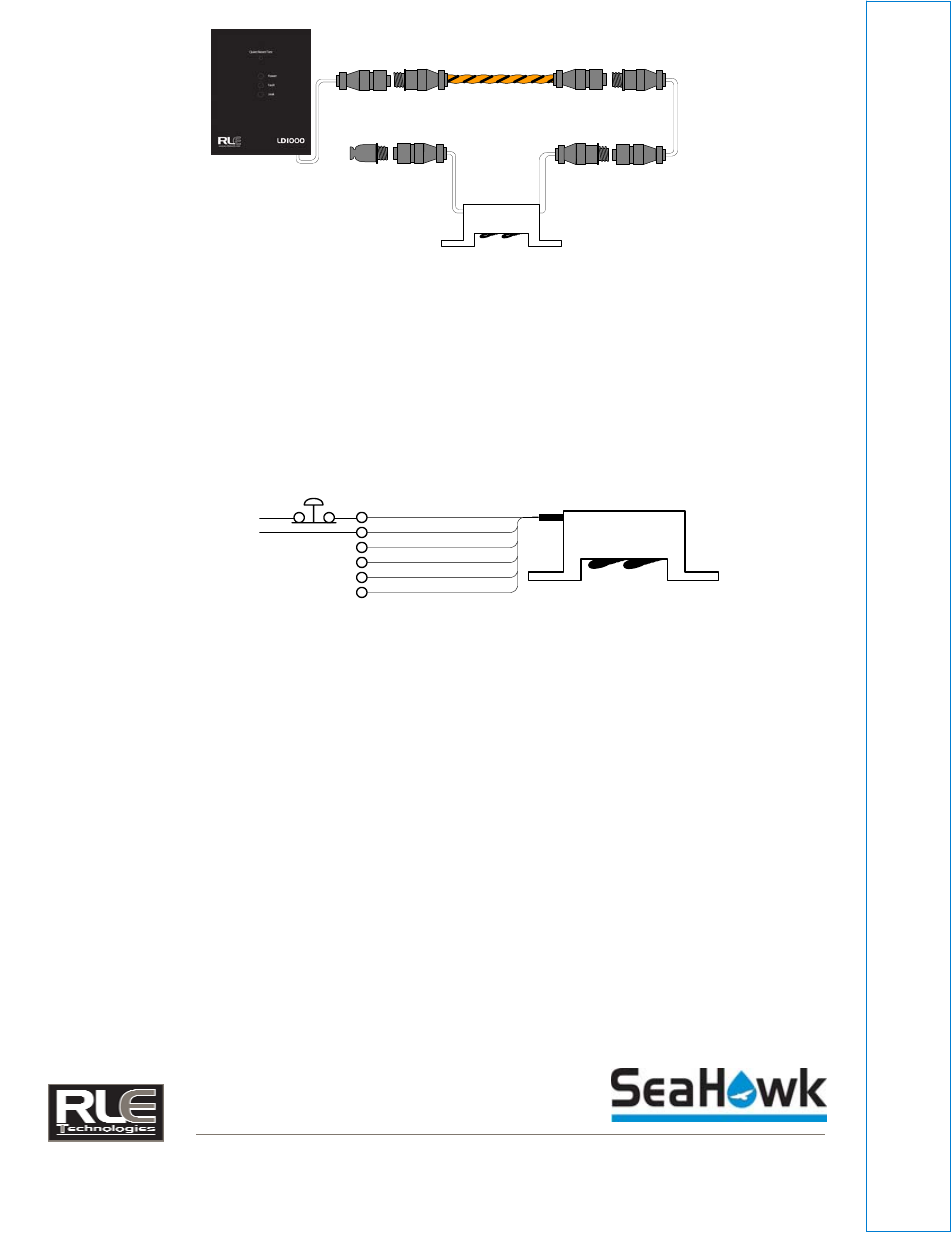

SD-Z Diagram 2: Basic Installation Components

SD-RO1 – Spot Detector with Relay Output

1. Installation

Determine a location. Ram set 6/32 threaded studs in floor on 2.5 inch (63.5mm) centers. Place SD-RO1 over

studs and secure. Adjust the sense probes to desired height. Connect the white (N/O) and green (Com) or blue

(N/C) leads to the alarm device. Connect the black (-) and red (+) leads to the power source. Test the SD-RO1

by placing water under the sense probes.

SD-RO1 Diagram 1: Basic Wiring

Specifications

Power
SD,

SDZ

SDRO1

N/A
24VAC/VDC

± 10%, 0.1A max.; requires power supply: WA-DC-24 or WA-DC-24-ST (not included)

Outputs

Solid

State

SDZ,

SDRO1

Relay

SD, SDZ

SDRO1

12-36VAC @ 0.01A min., 0.1A max.; 18-36VDC @ 0.01A min., 0.1A max.
N/A

N/A
Dry Contact, Form C; 1A @ 24VDC, 0.5A resistive @ 120VAC

Leader Cable (Non-sensing)
Length

SD,

SDRO1

SDZ

Connector

SD,

SDRO1

SDZ

14ft (4.27m)
10in (0.25m); quantity 2

N/A
1 Male, 1 Female; 4 pin, 0.96in (24.38mm) diameter; connects to SeaHawk SC Cable or Non-Sensing Cable

Operating Environment
Temperature
Humidity
Altitude

32° to 122°F (0° to 50°C)
5% to 95% RH, non-condensing
15,000ft (4,572m) max.

Storage Environment

-4° to 158°F (-20° to 70°C)

Dimensions

1.55”W x 2.0”H x 1.0”D (39.37mmW x 50.8mmH x 25.4mmD)

Weight
SD
SDZ
SDRO1

4 oz. (113g)
3 oz. (85g)
7 oz. (198g)

Certifications

CE; RoHS compliant

Red (+)
Black (-)
White (N.O.)
Green (Com )
Blue (N.C.)
Brown (Not Used )

VDC applications only)

24 VAC /

Once triggered, latches on, until

power is removed (VDC)

Reset Push Button

(Normally Closed
