Installation Guide
Current Monitoring
H706
TM
Disconnect and lock out power to the enclosure containing the conductor to be
monitored.
1. Locate a mounting surface for the removable mounting bracket
that will allow the monitored conductor to pass through the center
window when it is installed and that will keep the device at least ½”
(13 mm) from any uninsulated conductors. Determine cable routing
for the controller connection, allowing wiring to reach the mounting
location.
2. Drill holes to mount the bracket to the chosen surface using the
included screws.
3. Wire the output connections from the sensor to the controller (solid-
state contact) and to the external power supply. Observe polarity.
4. Route the conductor through the sensor’s center window and slip the
assembly into the mounting bracket.
5. Secure the enclosure and reconnect power.
6. Calibrate the sensor with the load running normally.
Installation

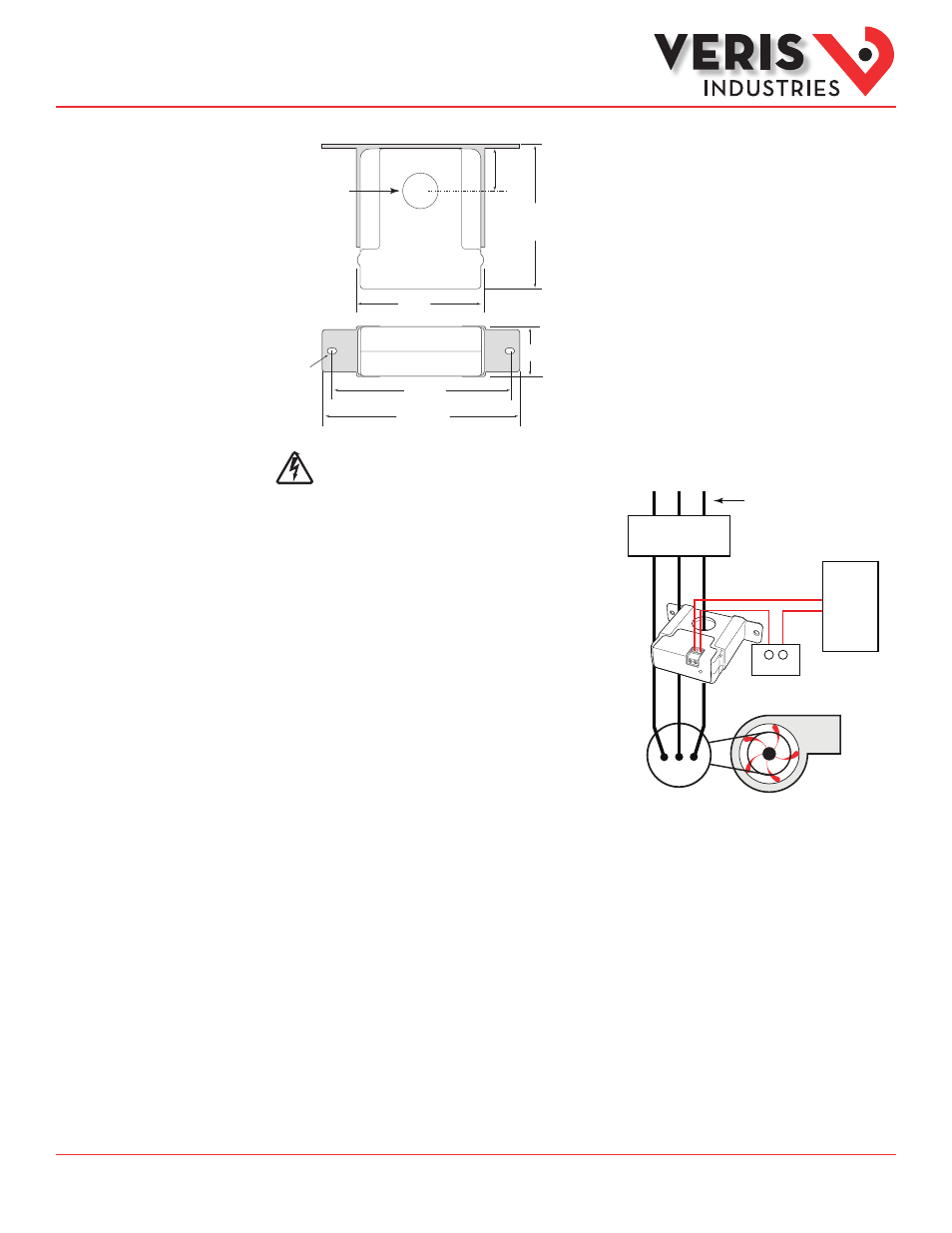

Dimensions
0.2” x 0.15”
slot (2x)
1.1"
(27 mm)
2.8"
(68 mm)
0 0.7"
(19 mm)
0.9"
(23 mm)
3.0"
(75 mm)
Removable/Adjustable Mounting Bracket
3.8"
(95 mm)
4.2"
(106 mm)
Motor
Fan or Pump
DDC CONTROLLER
Insulated Conductor Only
DI
-
- + +
-
+
5-30 VDC
Power Supply
CONTACTOR
