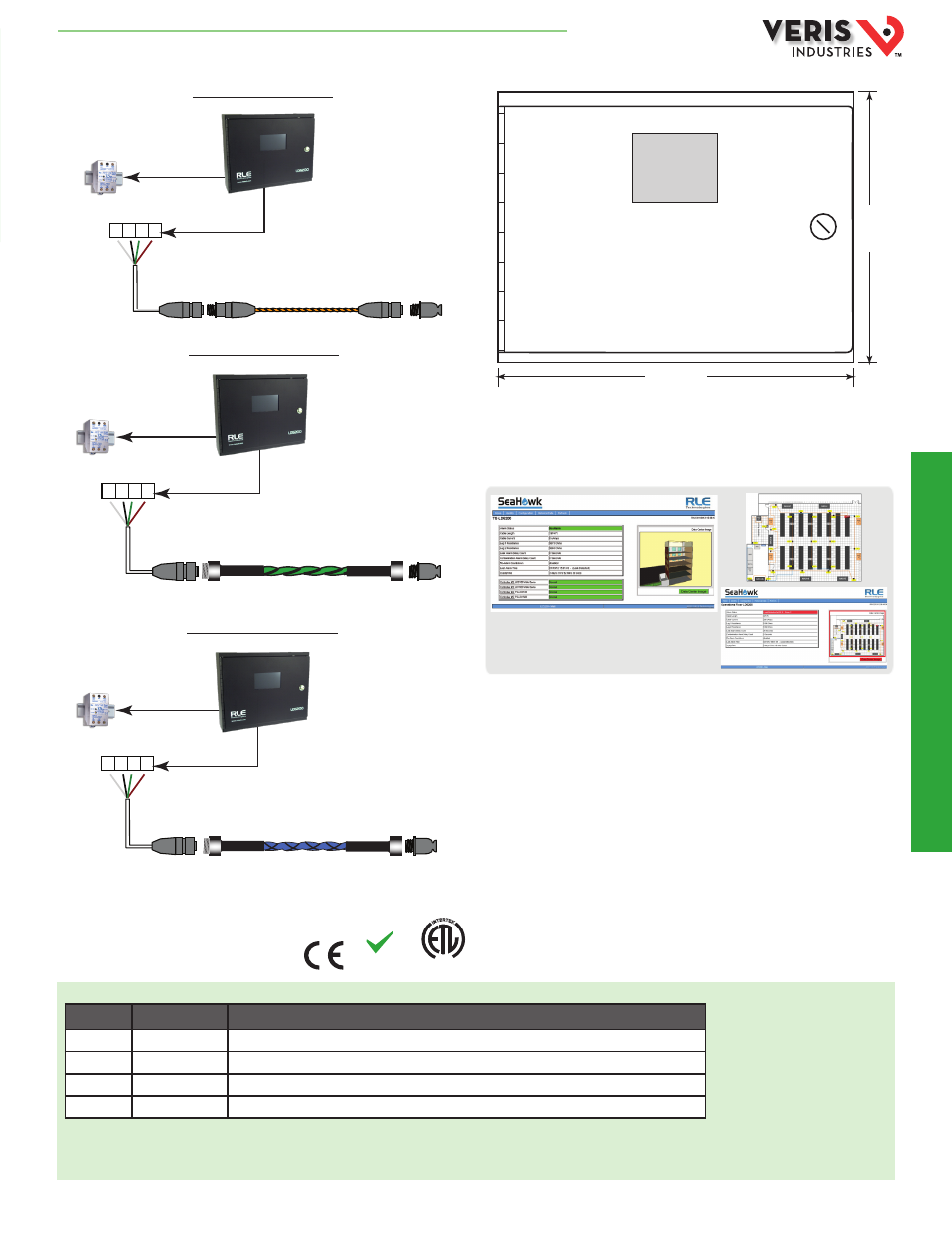

DIMENSIONAL DRAWING
10.0”
(254 mm)
12.5”
(320 mm)
APPLICATION/WIRING DIAGRAMS
LD5200 Basic SC Installation
W B G R
Cable
Leader Cable (LC-KIT)
(included with LD5200)
Sensing Cable
(SC)
End Terminator (EOL)
(included with LC-KIT)
Power supply
(PS24-7.5W )
LD5200 Basic SC-C Installation
W B G R
Cable
Sensing Cable
(SC-C)
End Terminator (EOL)
(included with LC-KIT-M)
Power supply
(PS24-7.5W )
Leader Cable (LC-KIT)
(included with LD5200)
LD5200 Basic SC-H Installation
W B G R
Cable
Sensing Cable
(SC-H)
End Terminator (EOL)
(included with LC-KIT-M)
Power supply
(PS24-7.5W )
Leader Cable (LC-KIT)
(included with LD5200)
MODEL MANUF. PART # DESCRIPTION
U006-0079* LD5200* Leak Panel, Distance Read, supervised, multiple outputs: relay, 4-20mA, Modbus RTU, leader cable and EOL terminator
U006-0035 † LC-KIT † Leader cable kit for SC cables (connects from leak panel to SC or NSC cable)
U006-0061 †† LC-KIT-M †† Leader cable kit for SC-C and SC-H cables (connects from leak panel to SC-C or SC-H cable)
U006-0004 FM1114 Reference map, framed (11” x 14”)
ORDERING INFORMATION RoHS
Compliant
INTE RTEK
C US
LISTED
CM
LISTED
3037024
* Power supply not included. Use Veris PS24-7.5W power supply or equivalent.
† Included with LD5200.
†† Not included with LD5200. Required for installation of SC-C ad SC-H cables.
WEB INTERFACE
A robust web interface supports
remote access, any time, any place.
HQ0003995.A 01131
