Veris Industries LD5200 Datasheet User Manual
Distance read panel, touch screen, Helps eliminate high humidity false alarms, Ld5200

LE
AK DETE
CTION
VERIS INDUSTRIES
800.354.8556
+1 503.598.4564
www.veris.com
Helps Eliminate High
Humidity False Alarms

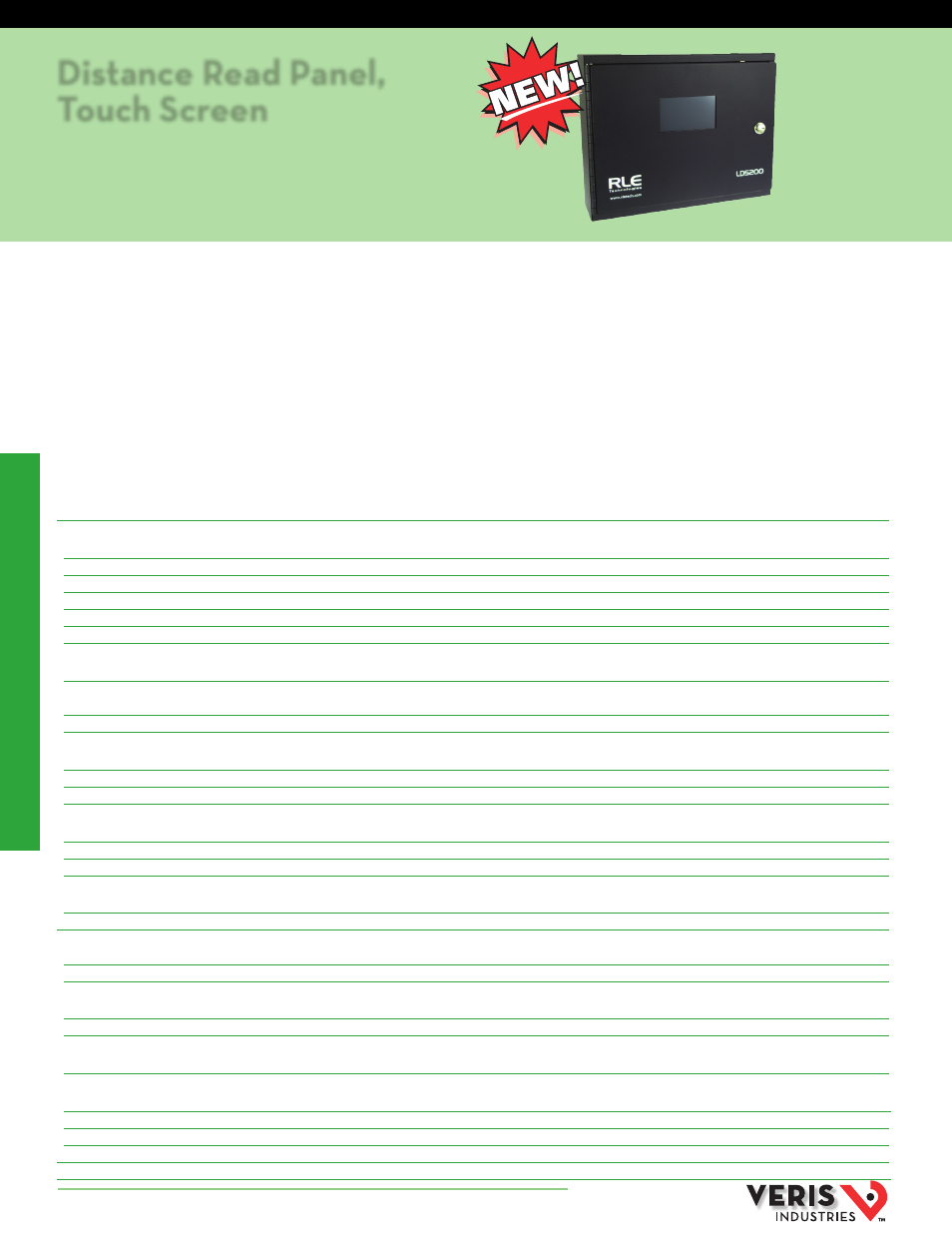

Distance Read Panel,
Touch Screen
LD5200
LD5200
DESCRIPTION
LD5200 distance read panel has an innovative touch screen interface that accesses
all basic functions. The LD5200 can operate as a stand-alone device, with the user
configuring, monitoring, locating, and acknowledging leaks at the panel. It can
also be connected to the building network and accessed via a web interface, which
expands the capabilities of the unit, adding a convenient interactive facility mapping
tool. When a leak is detected, the mapping tool displays the exact location in the
building where the alarm occurred. Multiple communication protocols make the
LD5200 readily compatible with existing building systems. Use with our SC, SC-C, or
SC-H sensing cable for a complete solution to leak detection.
FEATURES
●
Touch screen interface allows access to basic functions...stand-alone
configuration and monitoring
●
Web interface offers expanded capabilities through the building mapping
tool...pinpoint leaks quickly and accurately
●
Multiple communication protocols available...easy integration into building
systems
●
Acts as a master device for up to 127 leak detection units with up to 1000 feet
of SC cable or 7000 feet of SC-C cable...monitor large areas with only one device
●
Detailed alarm history with time and date stamps...assists in troubleshooting
SPECIFICATIONS
Input Power
100-240VAC@500mA max., 50/60 Hz
Inputs:
Water Leak Detection Cable
Requires 15 ft. (4.5 m) leader cable kit (LC-KIT or LC-KIT-M)
Maximum Length
10000 ft. (3048 m)
Minimum Length
35 ft. (1037 m)
Detection Accuracy
± 2 ft (0.6 m) + 0.5% of the cable length
Detection Repeatability
± 2 ft (0.6 m) + 0.25% of the cable length
Detection Response Time
5-990 sec ± 2 sec, software adjustable in 5 sec increments
Outputs:
Analog
4-20mA Loop Powered, 18-36VDC, RL = 500 Ω max.
Relay
2 Form C Leak Relays, 2 Form C Cable Break Relays; 1A@24VDC, 0.5A resistive@120VAC;
configurable for supervised or non-supervised, latched or non-latched
Maintenance Relay
1A@24VDC, 0.5A resistive @120VAC; configurable for supervised or non-supervised, latched or non-latched
Communications Ports:
EIA-232
9600 baud, No parity, 8 data bits, 1 stop bit
EIA-485 (Port 1, Port 2, Port 3)
9600, 19200, or 38400 baud (selectable); No parity, 8 data bits, 1 stop bit
RJ-45
10/100 Bast T ethernet port (TCP/IP)
Protocols:
Terminal Emulation (EIA-232)
VT100 compatible
Modbus RTU (EIA-485)
Master and slave; RTU Mode; BACnet MS/TP; N2, slave
RJ-45
Ethernet, TCP/IP; Modbus/TCP/UDP, Master and slave; SNMP V1, V2, V3, NTP, SMTP, DNS, BACnet/IP
Alarm Notification:
Audible Alarm
85dBA@2 ft. (0.6 m); re-sound 0-999 min
Visible Alarm
Indicated on LCD touch screen and through web interface
Logging Capabilities:
Event Log
Last 1024 events, downloadable to .txt files
Trend Log
Cable current level every day for the last 365 days, downloadable to .txt files
Login Security :
LCD Touch Screen
No password required to view controller status and data. Administrator password limits access to configuration options.
Web Interface
Username and password can be configured
Front Panel Interface:
Display
480 x 272 pixel color backlit LCD touch screen; 95.04 mm x 53-85 mm
Operating Environment:
Temperature
0° to 50°C (32° to 122°F)
Humidity
5% to 95% RH non-condensing
Altitude
15000 ft. (4572 m) max.
Mounting
Type 1 wall mount enclosure
Agency Approvals
CE; ETL listed: conforms to UL 61010-1, EN 61010-1; CAN/CSA C22.2 No. 61010-1; RoHS compliant
HQ0003995.A 01131
