H535ns, 535ns, Notice

TM
CURRENT MONITORING
INSTALLATION GUIDE
Z202807-0D

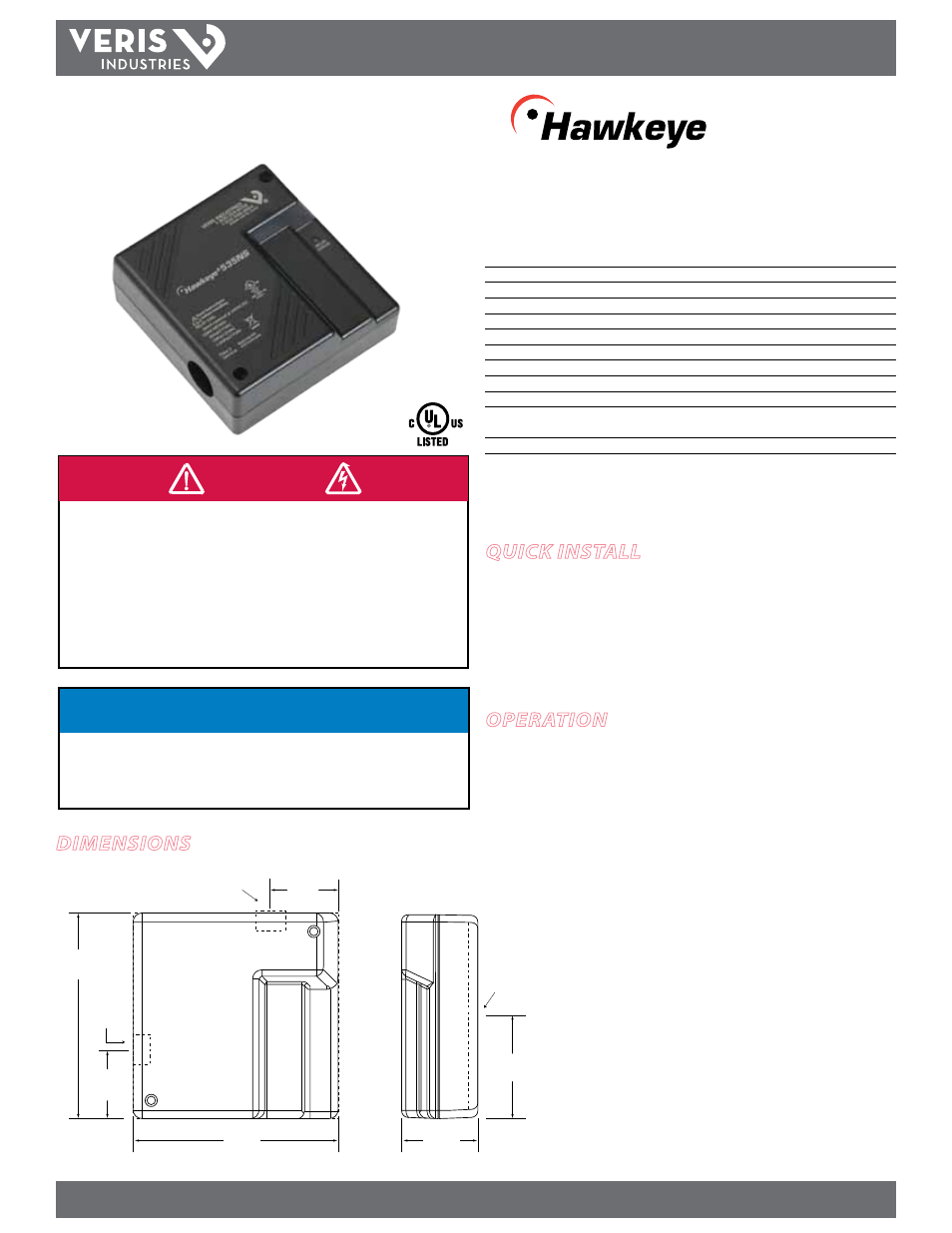

PAGE 1
©2012 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected]
07121
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices.
See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
DANGER
H535NS
TM
535NS
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
Enclosed Relay
Installer’s Specifications
Sensor Power
Induced from the monitored conductor
Amperage Range
0.25 to 15 A
Frequency Range
50-60 Hz
Operating Temperature Range
-15° to 50°C (5° to 122°F)
Operating Humidity Range
10-90%, noncondensing
Wire to Relay Contacts
Use 12 AWG (3.3 mm2) wire or larger*
Relay Switching Capacity at 120 VAC
1 HP
Relay Switching Capacity at 277 VAC
1.5 HP
Relay Output
SPDT, 15 Amps
Relay Coil
24 VAC/DC; 36 mA nom.
Terminal Block Torque
Relay control terminals: 3.5 in-lb (0.4 N-m)
All
other terminals: 12 in-lb (1.35 N-m)
Agency Approvals
UL508, Installation Category III
* For current loads up to 10 A, use 75°C rated wire insulation. For loads greater than 10 A, use
90°C rated wire insulation.
The product design provides for basic insulation only.
dimensions
quick install
1. Disconnect power sources prior to installation.
2. Remove the sensor lid. Wire the command relay connections and relay controls to
the base.
3. This device has four wiring options, detailed on page 2-3 of this installation guide.
Choose the option appropriate to the application and follow instructions.
2.13"
(55 mm)
1.16"
(30 mm)
4.25"
(108 mm)
1.53"
(39 mm)
CL
CL
CL
Wire
Opening
Wire
Opening
Wire
Opening
1.16"
(30 mm)
4.25"
(108 mm)
operation
The H535NS is an enclosed switching relay that is connected in series between the
power source and the motor device. It operates at amperage loads up to a maximum
of 15A, and the relay controls the on/off functioning of the motor. The H535NS
requires no additional power source for operation.
