800.354.8556 +1 503.598.4564 www.veris.com
MODEL MANUF. PART # DESCRIPTION
U006-0038* LD1500* Leak Panel, 1500’ Distance Read, Modbus, BACnet, SNMP, SMTP, and relay outputs
U006-0047* LD2100* Leak Panel, 2000’ Distance Read, Modbus, BACnet, SNMP, SMTP, and relay outputs
U006-0035 † LC-KIT † Leader cable kit for SC cables (connects from leak panel to SC or NSC cable)
U006-0061 †† LC-KIT-M †† Leader cable kit for SC-C and SC-H cables (connects from leak panel to SC-C or SC-H cable)
U006-0004 FM1114 Reference map, framed (11” x 14”)

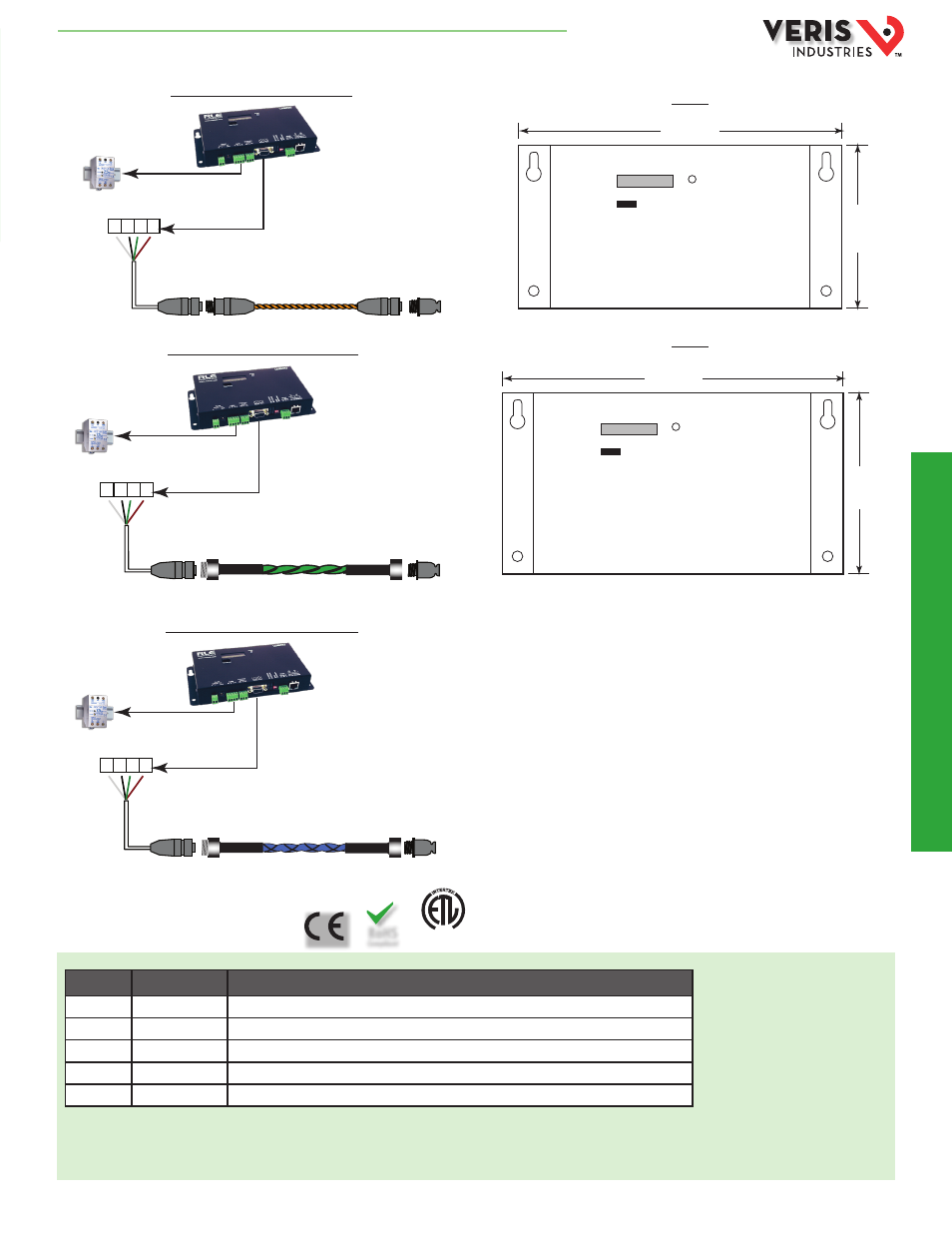

DIMENSIONAL DRAWINGS APPLICATION/WIRING DIAGRAMS
LD2100
LD1500/LD2100 Basic SC Installation
ORDERING INFORMATION
LD1500
RoHS
Compliant
INTE
RTEK
C US
LISTED
CM
LISTED
3037024
W B G R
Cable
Leader Cable (LC-KIT)
(included with LD1500
and LD2100)
Sensing Cable
(SC)
End Terminator (EOL)
(included with LC-KIT)
Power supply
(PS24-7.5W )
7.0”
(176 mm)
3.7”
(94 mm)
8.0”
(203 mm)
4.25”
(108 mm)
LD1500/LD2100 Basic SC-C Installation
W B G R
Cable
Leader Cable (LC-KIT-M)
(not included with LD1500
and LD2100)
Sensing Cable
(SC-C)
End Terminator (EOL)
(included with LC-KIT-M)
Power supply
(PS24-7.5W )
* Power supply not included. Use LD-ENC (U006-0045) wall mount enclosure with built-in power supply or Veris PS24-7.5W power supply or equivalent.
† Included with LD1500 and LD2100.
†† Not included with LD1500 or LD2100. Required for installation of SC-C ad SC-H cables.
LD1500/LD2100 Basic SC-H Installation
W B G R
Cable
Leader Cable (LC-KIT-M)
(not included with LD1500
and LD2100)
Sensing Cable
(SC-H)
End Terminator (EOL)
(included with LC-KIT-M)
Power supply
(PS24-7.5W )
HQ0001796.B 01131
