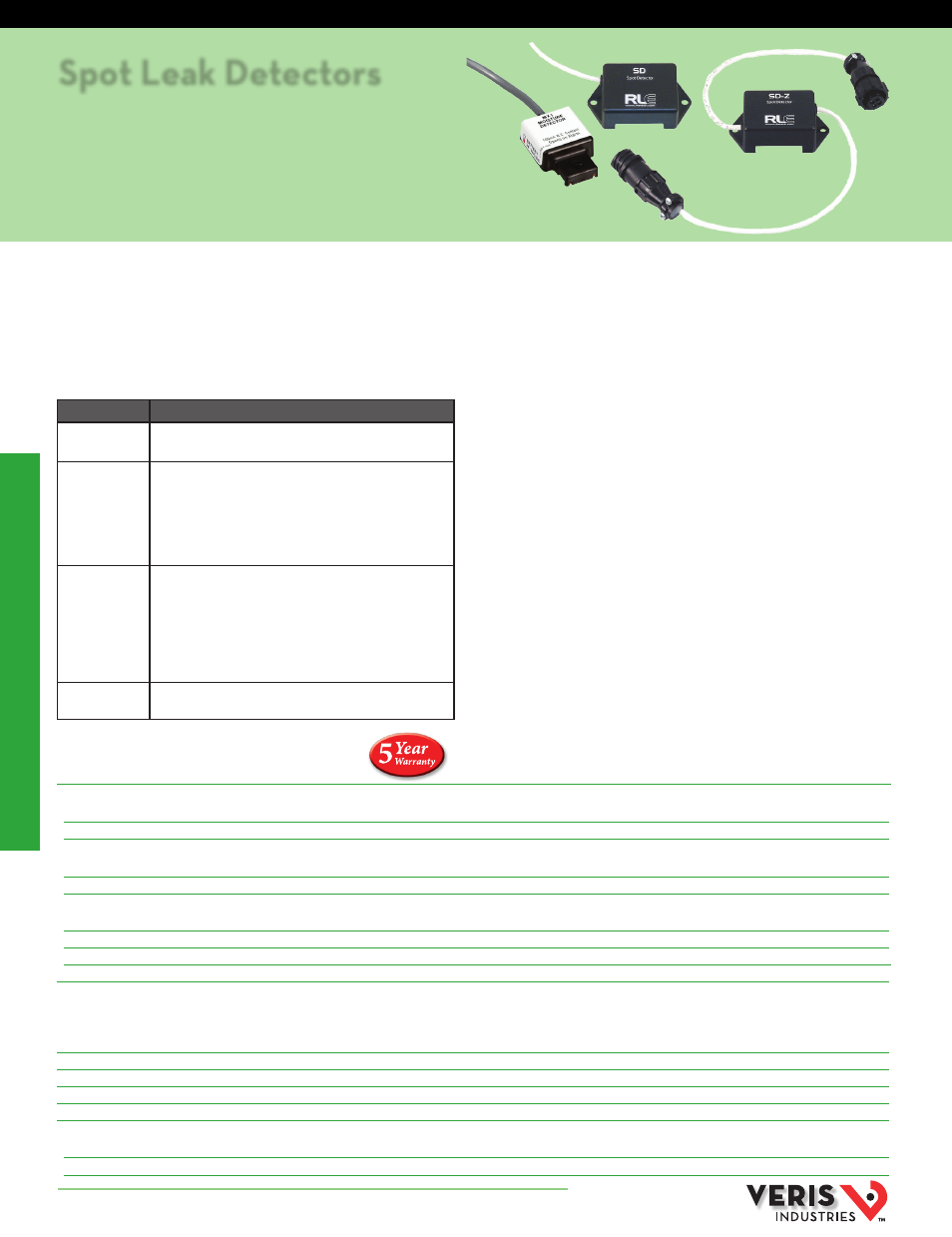

Spot Leak Detectors
Spot Leak Detectors
DESCRIPTION
SD, SD-R01, SD-Z and MX1 Spot Detectors detect conductive fluids at a single point
for the most economical way to detect fluids in small, confined areas. These devices
are commonly used in small rooms and in air-conditioning drip pans. Use only with
SC conductive fluid leak detection cables.
Veris offers four models of spot detectors which can integrate with various building
management systems.
FEATURES
●
Simple installation – screw, or ram-set to floor (SD, SD-R01, SD-Z)
●
Simple operation – no maintenance
●
Solid-state design...no moving parts to fail
●
SD, SD-R01, SD-Z models have polymer-coated sensing probes...no exposed
metal that will rust
●
All models are fully potted for water-proofing...maximum durability
SPECIFICATIONS (SD, SD-R01, SD-Z)
Input Power (SD-R01 Only)
24VAC/VDC ± 10%; 0.1A max.
Outputs:
Solid-state (SD Only)
[email protected] min., 0.1A max.; [email protected] min., 0.1A max.
Relay (SD-R01 Only)
Dry Contact, Form C; 1 A@24VDC, 0.5A resistive@120VAC
Leader Cable (NSC):
Length
SD: 14 ft. (4.2 m); SD-R01: 14 ft. (4.2 m); SD-Z: 10 ft. (0.3 m) (2 cables included)
Connector (SD-Z Only):
1 male, 1 female; 4 pin, 0.96” (24.38 mm) diameter; connects to SC or NSC Cable
Operating Environment:
Temperature
0° to 50°C (32° to 122°F)
Humidity
5% to 95% RH non-condensing
Altitude
10,000 ft. (3,048 m) max.
Storage Environment
-20° to 70°C (-4°to158°F)
SD
SD-Z
MX1
SPECIFICATIONS (MX1)
Input Power
12-30VDC/24VAC; 10-year lithium battery model available
Max Current Draw, Voltage Units Only 10mA
Output
N.C. solid-state, (opens on alarm)
Output Rating
30VAC/[email protected] max., not polarity sensitive
Sensing Electrodes
Gold plated
Operating Environment:
Temperature
-20° to 80°C (-4° to 176°F)
Humidity
0 to 100% RH
MODEL
DESCRIPTION
SD Spot Detector
n
Operates on either 12-36VAC or 18-36VDC power
n
Includes a 14 ft (4.2 m) leader cable
SD-R01 Spot
Detector with
Relay Output
n
Works with any system that accepts dry contacts
n
Operates on 24VAC/VDC±10%
n
Automatically resets when conductive fluid is no longer present
(AC power only; if DC power is used, device must be reset by
disconnecting power momentarily)
n
Includes a 14 ft (4.2 m) leader cable
SD-Z Spot
Detector
n
Designed for use with the all detection panels, with SC sensing
cable to integrate both zone and spot detection into one panel
n
Powered by the LD300, LD1000, LD5100, LDRA6, or LD2000
n
When used with a distance read panel (LD2000 or OD5200), the
location of the leak will be identified (simulates 50 feet)
n
Includes one male and one female end connector, each on a 1 ft
(30 cm) lead wire
MX1 Spot
Detector
n
Battery-operated or 12-30VDC/24VAC powered
SD, SD-R01, SD-Z & MX1
HQ0001797.B 01131
