Installation Guide
Pressure
PW Series
TM

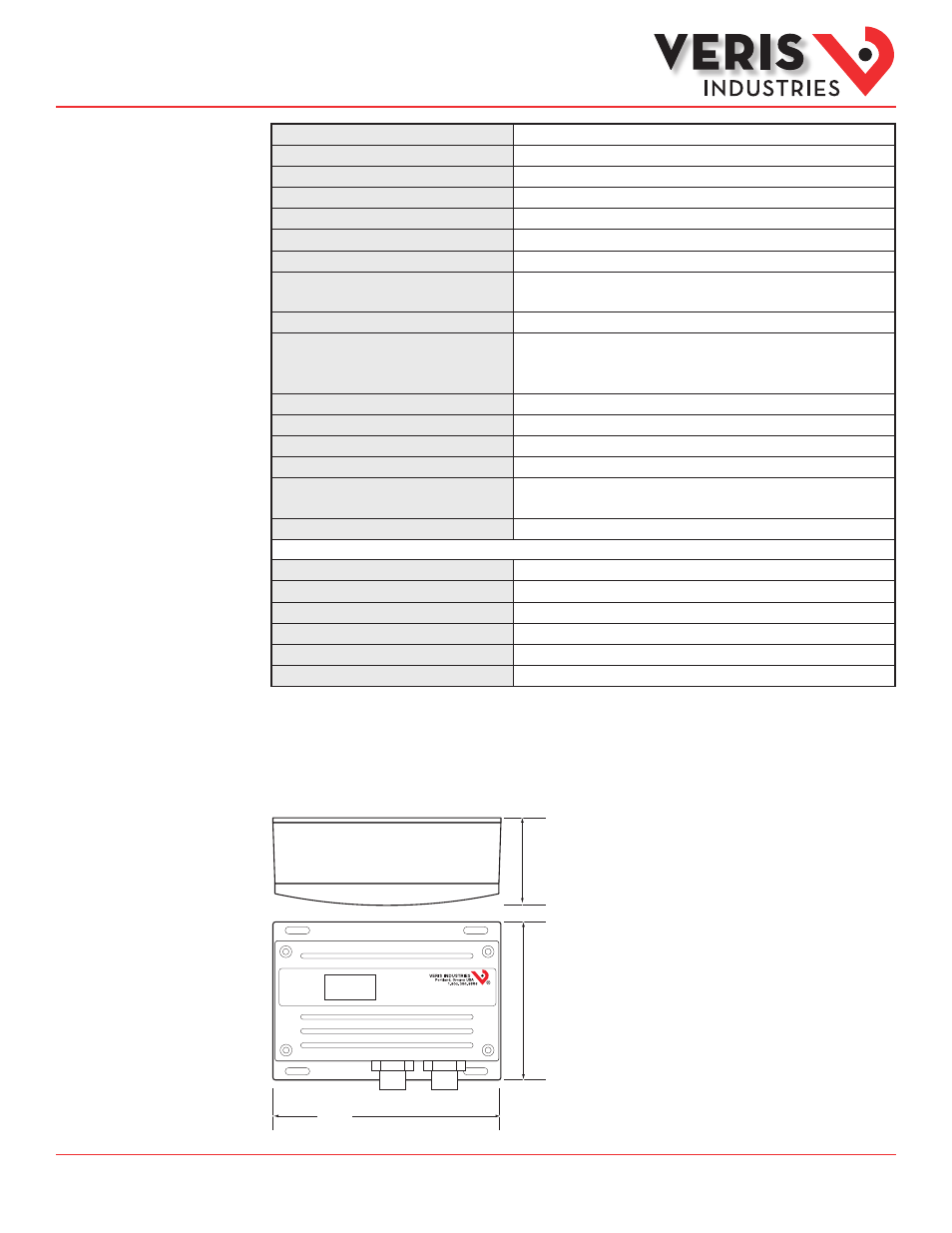

Specifications
Media Compatibility 17-4 PH stainless steel
Input Power 12 to 30VDC, 24VAC nom.
Maximum Current Draw DC: 125mA; AC: 280mA
Output 3-wire transmitter; user-selectable 4-20mA/0-5V/0-10V 1
Status Indication Dual color LED
Proof Pressure 2x max. F.S. range
Burst Pressure 5x max. F.S. range
Accuracy at 25°C 2 Ranges A, B, C: ±1% F.S. 3
Range D: ±2% F.S. 3
Surge Damping Electronic; 5-second averaging
Temperature Compensated Range 0° to 50°C (32° to 122°F);
TC Zero <1.5% of product F.S. per sensor;
TC Span <1.5% of product F.S. per sensor
Sensor Operating Range -20° to 85°C (-4° to 185°F)
Operating Environment -10° to 55°C (14° to 131°F); 10-90% RH noncondensing
Long Term Stability ±0.25%
Zero Adjust Pushbutton auto-zero and digital input (2-position terminal block)
Fittings psig models: 1/8” NPT female thread, stainless steel 17-4 PH
barg models: 1/8” BSPT female thread, stainless steel 17-4 PH
Physical White powder-coated aluminum
PRESSURE RANGES
0-50 psig 5/10/25/50 psid
0-100 psig 10/20/50/100 psid
0-250 psig 25/50/125/250 psid
0-3.5 barg 0.35/0.7/1.75/3.5 bard
0-7.0 barg 0.7/1.4/3.5/7.0 bard
0-17 barg 1.7/3.4/8.5/17.0 bard
To conform to EMC Standards, use shielded cabling. Technical information is available from the factory on request or on our
website (www.veris.com/ce)
1 Minimum input voltage for 4-20 mA operation: 250 Ω loop (1-5V) = 12 VDC; 500 Ω loop (2-10V) = 15 VDC
Minimum input voltage for volt operation: 0-5 VDC output = 12 VDC; 0-10 VDC output = 15 VDC
2 Accuracy combines linearity, hysteresis, and repeatability.
3 F.S. is defined as full span of selected range in bidirectional mode.
2.2"
(57 mm)
4"
(102 mm)
5.8"
(147 mm)
LOW HIGH
WET DIFFERENTIAL PRESSURE
Dimensions
