Installation Guide
Pressure Sensors
PG/PV Series
TM

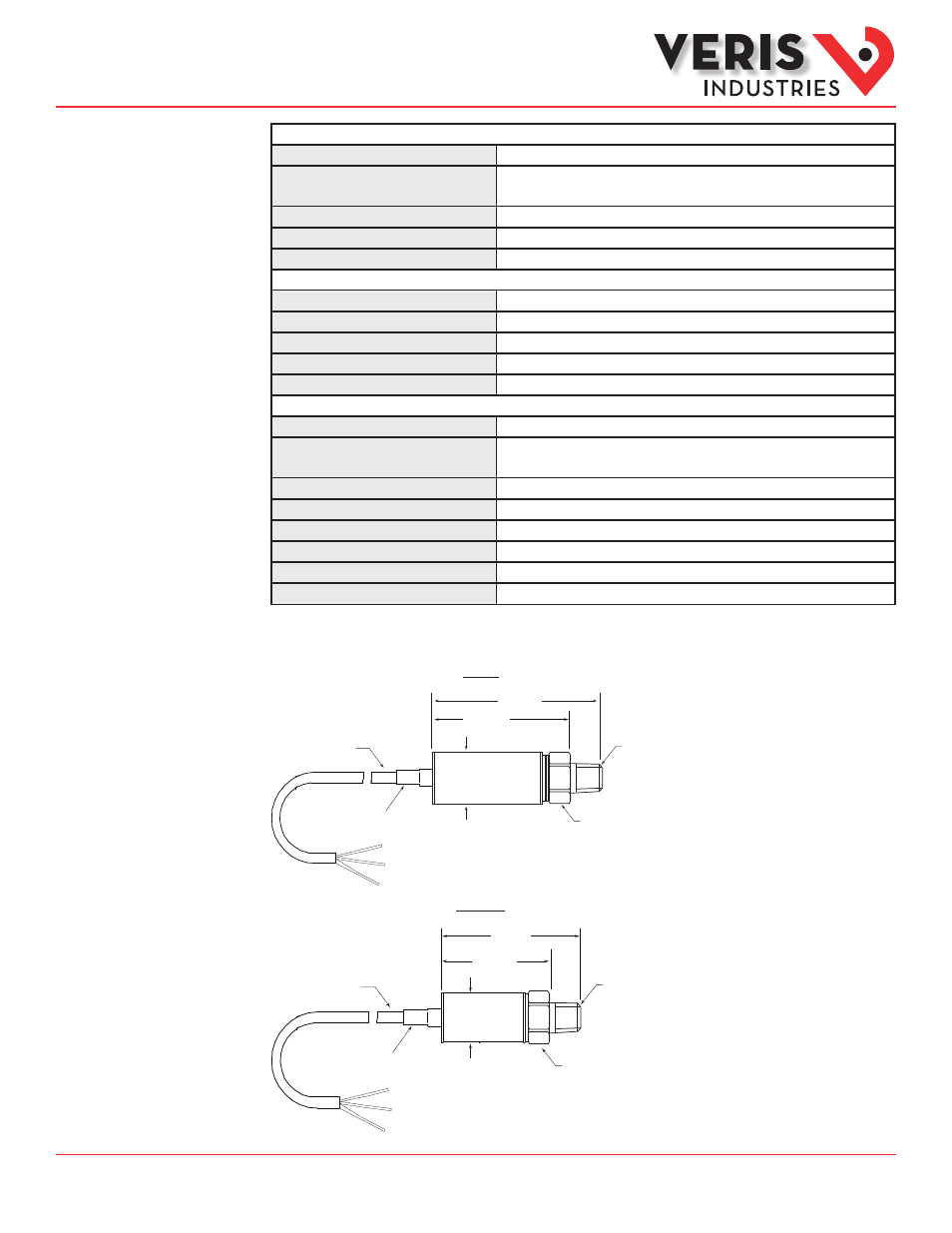

Specifications
ELECTRICAL
Supply Voltage 10-28 VDC
Output Deluxe: 0-5/0-10 VDC (3-wire) or 4-20 mA (2-wire)
Economy: 1-5 VDC (3 wire) or 4-20 mA (2-wire)
Load Impedance >100 kΩ
Standard Connection Cable gland 24” (600 mm) length
Pressure Port 1/4”NPT Male
PERFORMANCE AT 25°C (77°F)
Accuracy * Deluxe: ±0.25% BFSL **; Economy: ±0.50% BFSL **
Media Compatibility Fluids & gases compatible with 316L stainless steel
Pressure Cycles >100 million cycles
Over Pressure 2x F.S. without change in calibration
Burst Pressure 5x rated pressure or 20,000 PSI
OPERATING CONDITIONS
Shock 100G, 11 msec, 1/2 sine
Vibration Deluxe: 20G peak, 20 to 2400 Hz
Economy: 10G peak, 20 to 2000 Hz
EMI/RFI Protection Deluxe: yes; Economy: no
Rating Deluxe: IP-66; Economy: IP-65
Operating Temperature Range -40° to 85°C (-40° to 185°F)
Compensated Temperature Range 0° to 55°C (32° to 130°F)
Total Error Band Over Temperature <±1% of FS
Humidity 0-95% RH, non-condensing
* Accuracy includes nonlinearity and hysteresis.
** BFSL = Best fit straight line
PG/PV
3.5 ”
(88 mm)
0.9” HEX
(22 mm)
0.25” MNPT Thread
(6 mm)
1.0”
(25 mm)
2.9”
(73 mm)
Jacketed Cable
length = 2 ft. (61 cm)
diameter = 0.18” (4.5 mm)
Shrink Tubing
0.375” dia.
PGE/PVE
0.25” MNPT Thread
(6 mm)
Jacketed Cable
length = 2 ft. (61 cm)
diameter = 0.18” (4.5 mm)
2.6”
(66 mm)
0.9”
(23 mm)
Shrink Tubing
0.375” dia. 0.9” HEX
(22 mm)
1.5”
(37 mm)
Dimensions
