Installation Guide
Current Monitoring
H931
TM

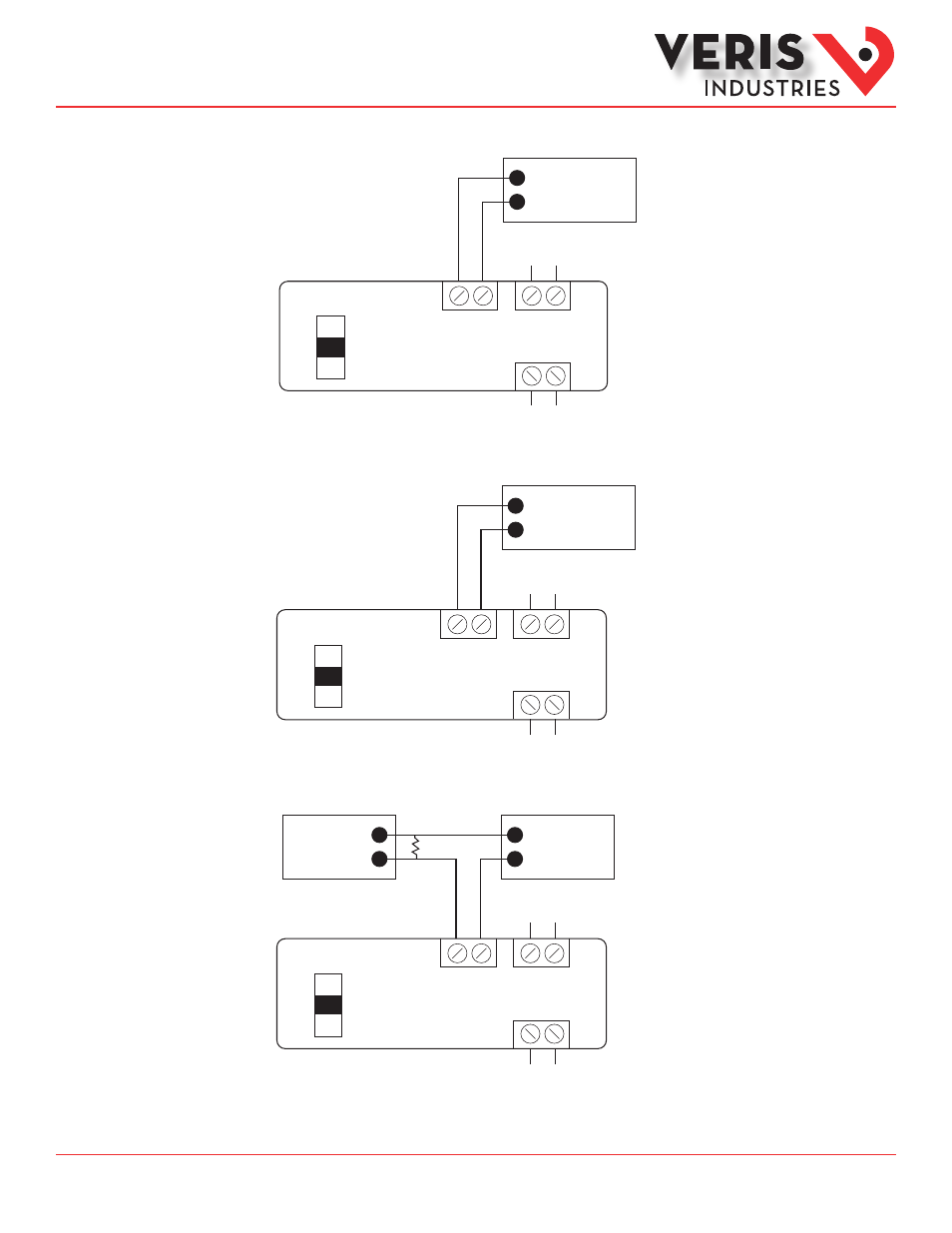

Wiring Example 1: Powered by the controller, + Common
Amperage Range
120
60
30
4-20 mA in (Return)
V+ (Comm)
+
– + – +
24 VAC/DC (to energize relay)
N.O. Command Relay Output
Output
4-20 mA
Example 2: Powered by the controller, - Common
Amperage Range
120
60
30
V+ (Comm)
4-20 mA in (Return)
+
– + – +
24 VAC/DC (to energize relay)
N.O. Command Relay Output
Output
4-20 mA
Example 3: External Power
Amperage Range
120
60
30
– + – +
24 VAC/DC (to energize relay)
N.O. Command Relay Output
Output
4-20 mA
+
–
+
–
24 VDC
Comm
1-5V in
240 Ω*
* remove resistor
for a 4-20 mA output
