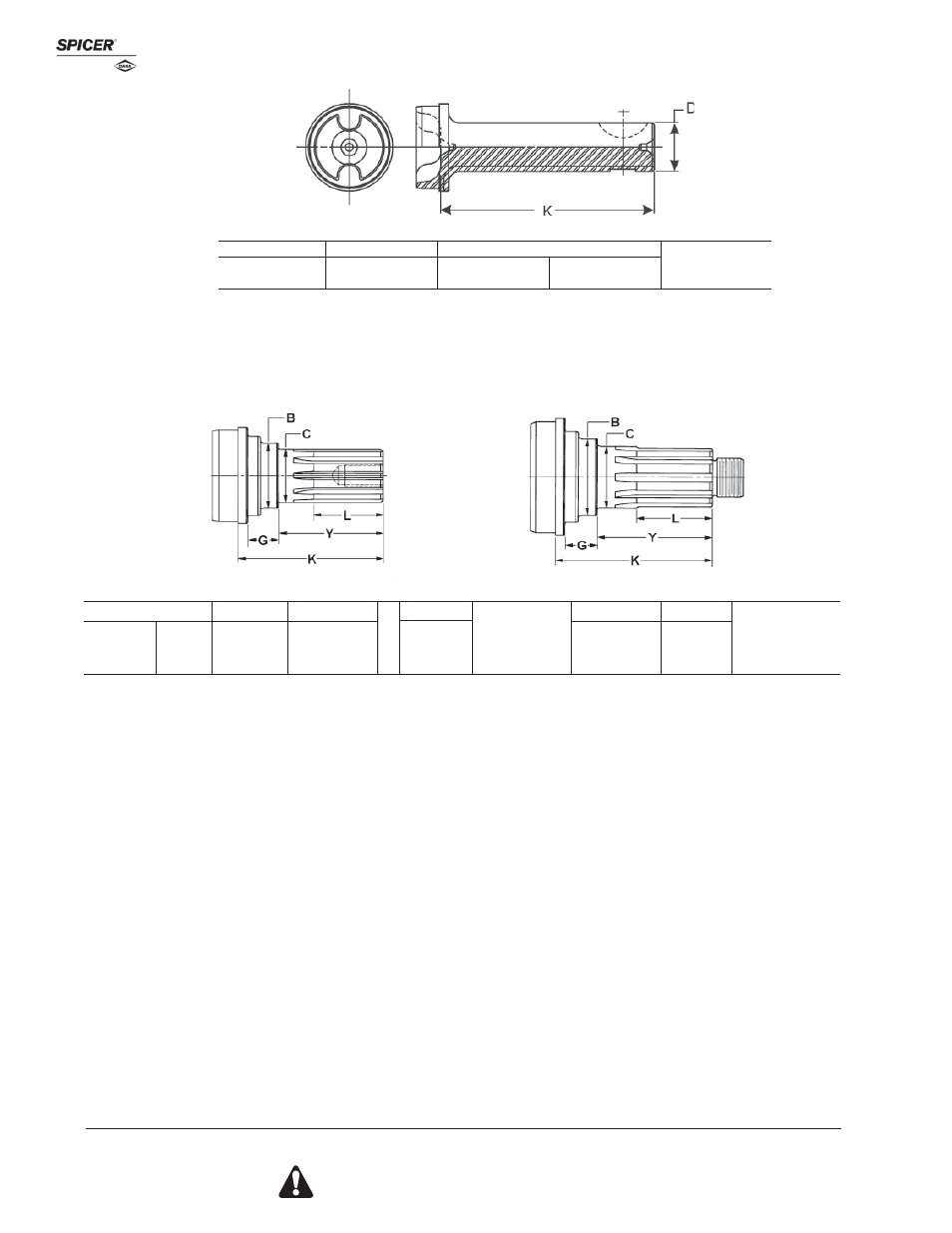

Spicer Driveline Components Catalog - Tube Shafts - Manual (Page 8)

J300P-7
Style 1 Style 2
8 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
SPLINED MIDSHIP TUBE SHAFTS
Companion Flange or End Yoke Design
L
Length
of
Spline
K
End of Spline
Spline to
Point of Weld
Thread Size
S
t
y
l
e
Y
End of Spline
to Bearing
Shoulder
B
Shoulder
Diameter
G
Length of
Shoulder
Midship
Tube Shaft
Part Number
Tube
Dia.
Wall
Thickness
Fits Tube
1.125-26 Involute Spline
1.181 Bearing Diameter (C)
2.500 .065 1.906 3.406 2 1.375 .625-18 1.156 .438 2-53-1321
2.500 .065 2.031 3.406 2 1.375 .625-18 1.690 .781 2-53-1011•
2.500 .065 2.340 3.407 2 1.730 .625-18 1.344 .852 2-53-1561
2.500 .083 1.469 3.406 2 1.375 .625-18 1.469 .393 2-54-351X•
Includes slinger
2.500 .083 1.469 3.406 2 1.375 .625-18 1.469 .393 2-54-361•
2.500 .083 1.906 3.406 2 1.375 .625-18 1.181 .665 2-53-1351
2.500 .083 2.031 3.406 2 1.359 .625-18 1.500 .750 2-53-1051•
2.500 .083 2.031 3.406 2 1.344 .625-18 1.188 1.165 2-53-1331•
3.000 .065 2.125 3.410 2 1.344 .625-18 1.656 .703 2-53-1161•
3.000 .065 2.340 3.406 2 1.568 .625-18 1.344 .852 2-53-1571•
3.000 .065 2.438 4.300 2 1.875 .625-18 1.500 1.859 2-53-1311
3.000 .083 2.031 3.406 2 1.344 .625-18 1.453 .400 2-53-1071•
3.000 .083 2.440 4.531 2 1.875 .625-18 1.496 1.859 2-53-01931
3.000 .083 2.440 4.531 2 1.875 .625-18 1.496 1.859 5001931•
5001931 was replaced by 2-53-01931
3.000 .083 2.440 5.066 2 1.902 .625-18 1.500 2.394 5002332•
Hardened seal surface
4.000 .065 2.440 4.688 2 1.790 .625-18 1.500 .630 3-53-06154
Hardened seal surface
4.000 .083 3.720 4.687 2 1.980 .625-18 1.500 — 2-53-1651
1.260 Bearing Diameter (C)
2.000 .083 2.280 3.297 2 1.469 .625-18 1.688 .703 2-53-901•
ROUND TUBE SHAFTS
D K Fits Tube Spicer ®
End of Shaft Wall Assembly
Diameter to Weld Diameter Thickness Number
.999 4.310 1.750 .065 10-53-18X •
Key Included
