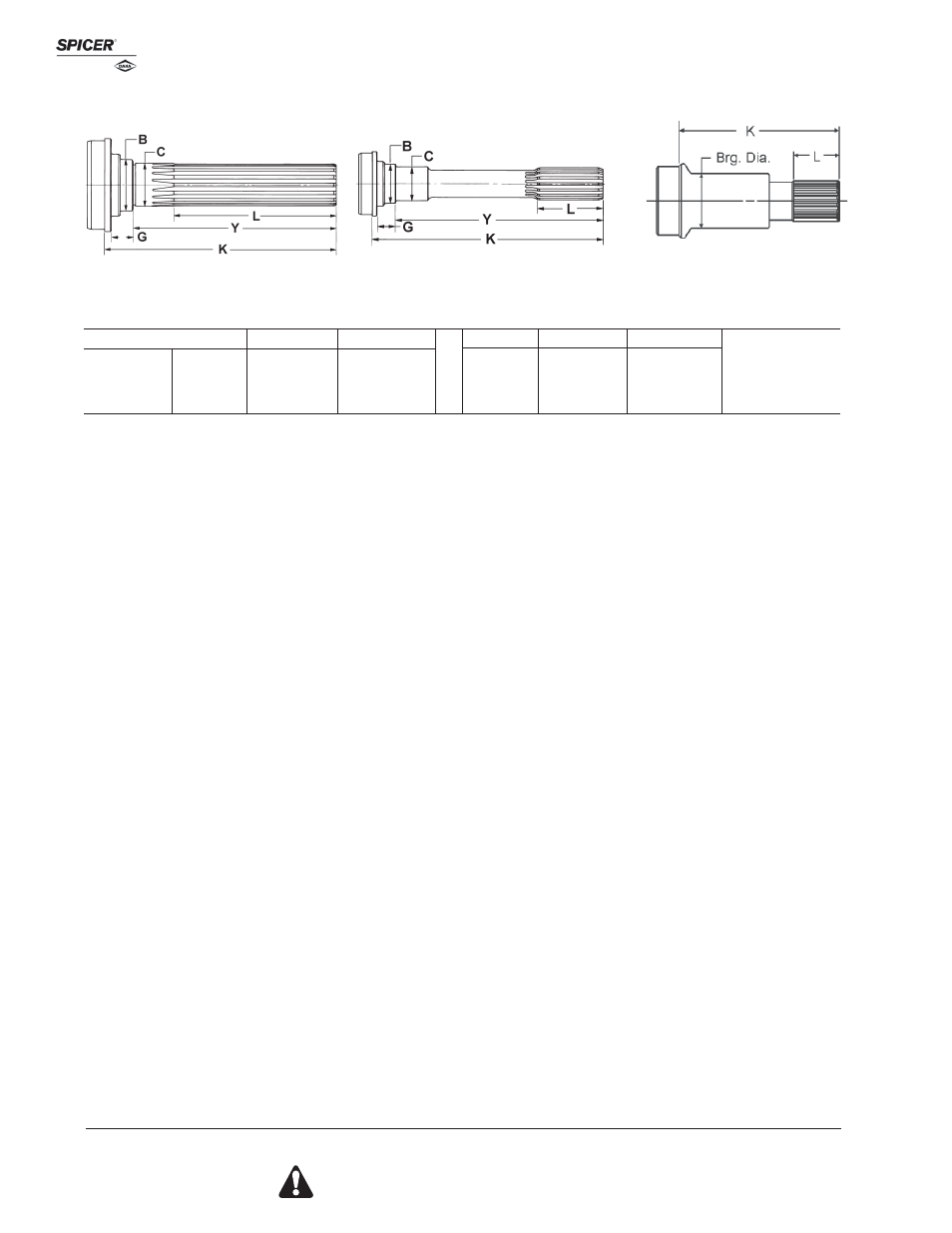

J300P-7 SPLINED MIDSHIP TUBE SHAFTS
Slip Yoke Design For Use with Outboard Slip Yokes
Note: Spline is Glidecote except where footnoted.
Style 3
L
Length
of
Spline
K
End of
Spline
to Point of
Weld
S
t
y
l
e
Y
End of
Spline to
Bearing
Shoulder
B
Shoulder
Diameter
G
Length of
Shoulder
Midship
Tube Shaft
Part
Number
Tube
Diameter
Wall
Thickness
Fits Tube
14 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
Style 2 Style 1
1.5620-16 Spline
1.575 Bearing Diameter (C)
3.000 .083 7.470 8.531 1 5.940 1.940 .875 3-53-411•
3.500 .083 7.410 8.531 1 5.906 1.810 .875 3-53-1311
3.500 .083 7.470 8.531 2 5.938 1.940 .812 3-53-451•
3-53-451 was replaced by 5007832
3.500 .083 7.470 8.578 2 3.000 1.940 .810 3-53-07832
3.500 .083 7.470 8.578 2 3.000 1.940 .810 5007832•
5007832 was replaced by 3-53-07832
3.500 .083 7.880 9.290 1 5.938 2.060 1.156 3-53-441•
4.000 .083 7.470 8.531 1 5.938 1.940 .812 3-53-1191
1.772 Bearing Diameter (C)
3.500 .095 7.480 8.570 1 5.940 2.190 .810 4-53-531•
1.5620-23 Based On 24 Involute Spline
1.575 Bearing Diameter (C)
3.500 .083 7.531 8.331 2 3.500 1.803 .555 55-53-11
May use boot 212094X, order separate
3.500 .083 8.704 9.500 2 3.500 1.803 .555 55-53-51
May use boot 212094X, order separate
3.500 .083 8.732 9.512 2 3.000 1.811 .540 3-53-08004
3.500 .083 8.732 9.512 2 3.000 1.811 .540 5008004 „
5008004 was replaced by 3-53-08004
3.500 .083 8.750 9.875 2 3.000 1.812 .880 3-53-2571
Use boot 212007X, order separate
4.000 .083 7.531 8.331 2 3.500 1.803 .555 55-53-21•
May use boot 212094X, order separate
4.000 .083 8.689 9.468 2 3.000 1.809 .540 3-53-08003
4.000 .083 8.689 9.468 2 3.000 1.809 .540 5008003•
5008003 was replaced by 3-53-08003
4.000 .083 8.704 9.500 2 3.500 1.803 .555 55-53-31•
May use boot 212094X, order separate
4.000 .083 8.750 9.875 2 3.000 1.810 .880 3-53-2561
Use boot 212007X, order separate
1.7500-16 Spline
1.772 Bearing Diameter (C)
3.500 .095 7.469 8.562 1 5.938 2.188 .812 4-53-61
4.000 .083 7.469 8.562 1 5.938 2.188 .812 4-53-101
